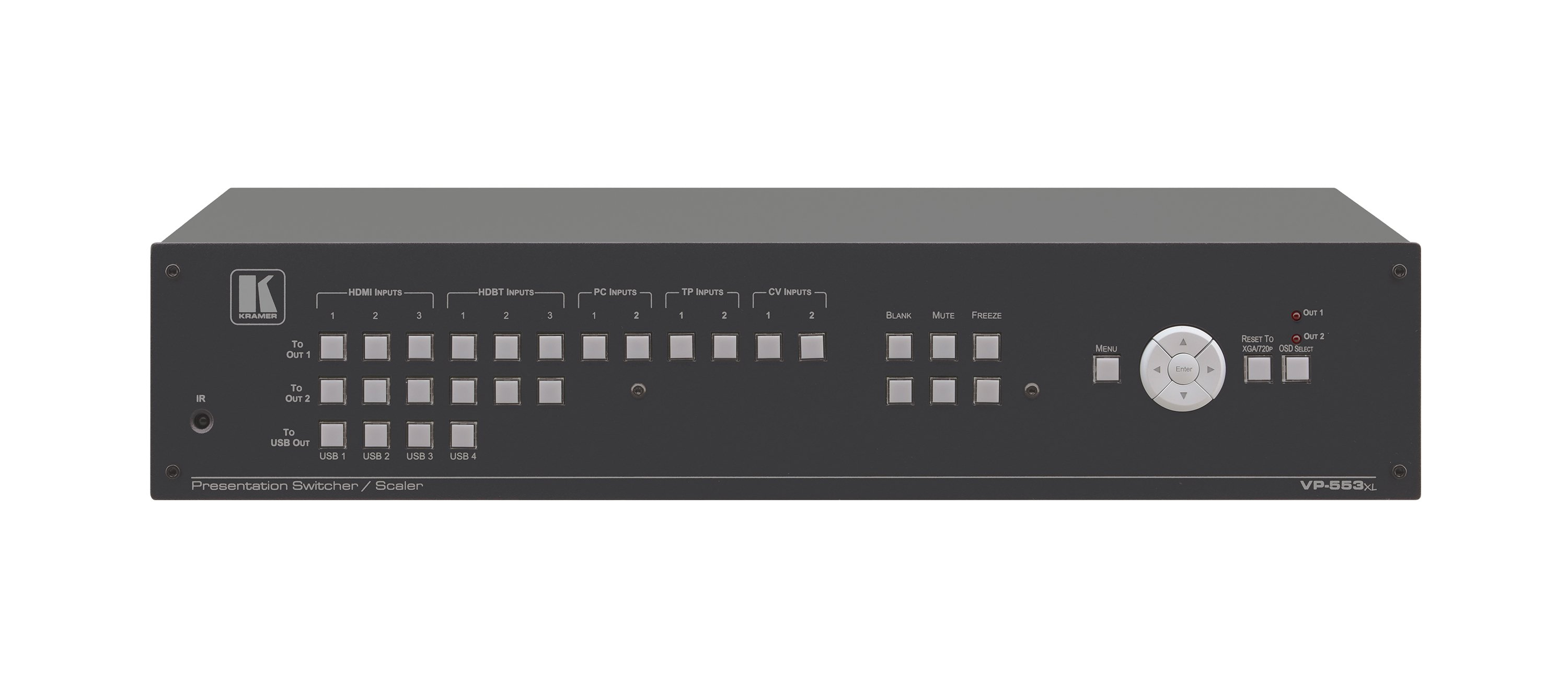

Kramer VP-553XL/110V 6:2 Digital presentation Switcher/Scaler with Analog Support

The Kramer VP-553xl is a high-performance 6x2 presentation switcher/scaler for HDMI, HDBaseT and analog signals, and a 4x1 USB switcher. The unit has dual, independent, scaled outputs, the first on both HDMI and HDBaseT connectors, and the second on an HDMI connector. Both can take from the six digital inputs: three HDBaseT and three HDMI signals; while the first also includes analog inputs - for two computer graphics signals, two composite video and two analog TP inputs. Analog, digital and embedded audio are supported, and the unit also includes a microphone input and rich DSP features.

Pix–Perfect™ Scaling Technology — Kramer’s precision pixel mapping and high quality scaling technology. High–quality 3:2 and 2:2 pull down de–interlacing and full up — and down–scaling of video input signals.

HDCP Compliant — The HDCP (High Definition Content Protection) license agreement allows copy–protected data on the HDMI input to pass only to the HDMI outputs.

HDBaseT Range — Up to 70m (230ft) using BC–HDKat6a cable.

Cable — Shielded twisted pair (STP) cable recommended. For optimum range and performance use, use Kramer's BC–HDKat6a cable. Note that the transmission range depends on the signal resolution, graphics card and display used. The distance using non–Kramer CAT 5, CAT 6, and CAT 7 cables may not reach these ranges.

Video Inputs — 3 HDMI connectors, 3 HDBaseT on RJ–45 connectors, 2 VGA on 15–pin HD connectors, each with unbalanced stereo audio on 3.5mm connectors; 2 VGA & audio over CAT 5 on RJ–45 connectors; 2 composite video on RCA connectors with unbalanced stereo audio on 3.5mm mini jacks.

Scaled Outputs — 2 HDMI & 1 HDBaseT.

Output Resolutions — HDTV and computer graphics and 1080p/UXGA with selectable refresh rates.

4x1 USB Switcher — Can be set to follow the switching of the video layer or can be used as an independent switcher. 4 USB–B input connectors, 1 USB–A output connector.

OSD (On Screen Display) — For easy setup and adjustment, accessible via the IR remote control and via the front panel buttons.

Kramer VP-553xl Includes:

• Power cord
• Rack "ears"
• IR remote control

Kramer VP-553xl Features:

• Pix–Perfect™ Scaling Technology
• 3:2 & 2:2 Pull Down
• HDBaseT Range: Up to 70m (230ft)
• Max Resolution: 1080p/UXGA
• I/O Audio Level Adjustment
• Microphone Input: Phantom Power
• Built–in ProcAmp
• Control: IR with OSD, Ethernet with built–in Web pages & RS–232
• 4x1 USB switcher
• Size: Standard 19" (2U). Rack "ears" included.
• Audio: U/B/D/E

Kramer VP-553xl Specifications:

• Inputs:
  • 3 HDMI connectors (HDMI, HDCP)
  • 2 VGA on 15–pin HD connectors
  • 2 composite video on RCA connectors
  • 2 analog TP on RJ–45 connectors
  • 3 HDBT on RJ–45 connectors
  • 4 USB–B ports
  • 3 unbalanced analog audio on 3.5mm mini jacks for HDMI
  • 2 unbalanced analog audio on 3.5mm mini jacks for PC
  • 1 Aux in balanced stereo audio on 5–pin terminal block connectors
  • 2 balanced audio (L and R) RCA connectors for CV
• Outputs:
  • 1 HDBT on RJ–45 connector
  • 2 HDMI connectors (HDMI, HDCP)
  • 1 USB port
  • 1 monitor out balanced stereo on a 5–pin terminal block connector
  • 1 line out balanced stereo on a 5–pin terminal block connector
• Output Resolutions:
  • 640x480 60
  • 800x600 60
  • 1024x768 60
  • 1280x768 60
  • 1360x768 60
  • 1280x720 60
  • 1280x800 60
  • 1280x1024 60
  • 1440x900 60
  • 1400x1050 60
  • 1680x1050 60
  • 1600x1200 60
  • 1920x1080 60
  • 1920x1200 60
  • 720x480p 60
  • 1280x720p 60 50
  • 1920x1080i 60 50
  • 1920x1080p 60 50
  • 720x576p 60
• Controls:
  • TP 1, TP 2, CV 1, CV 2, HDBT 1, HDBT 2, HDBT 3, PC 1, PC 2, HDMI 1, HDMI 2, HDMI 3, USB 1, USB 2, USB 3, USB 4 input selector buttons
  • 2 blank, 2 mute, 2 freeze buttons
  • Menu, enter, menu arrows, reset to XGA/720p, OSD SELECT, 2 RS–232, IR, Ethernet, 2 level and EQ trimmers, line/mic selector switch, cond/dyn selector switch, mono/stereo selector switch, REM for muting audio
• Power Consumption: 100–240V AC, 43VA max
• Operating Temperature: 32° to 104°F (0° to +40°C)
• Storage Temperature: –40° to 158°F (–40° to +70°C)
• Humidity: 10% to 90%, RHL non–condensing
• Options: Kramer BC–HDKat6a cable
• Dimensions (WxDxH):
  • Product: 19" x 11.93" x 2U (43.6cm x 30.30cm 8.80cm)
  • Shipping: 20.71" x 18.70" x 7.24" (52.60cm x 47.50cm x 18.40cm)
• Weight:
  • Product: 8.0lbs (3.7kg) approx
  • Shipping: 11.2lbs (5.1kg) approx
