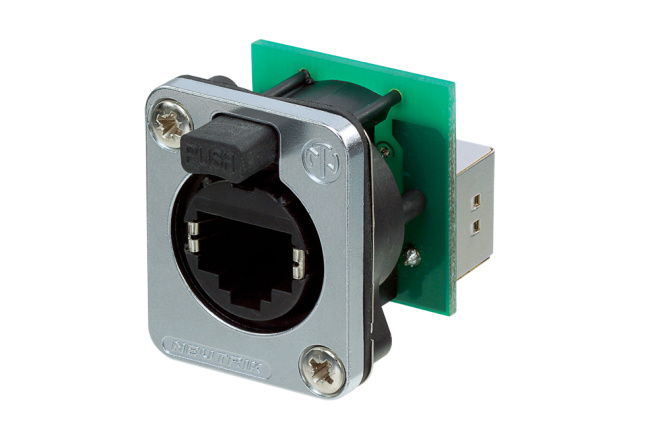

Neutrik NE8FDP-SE
Panel Mount etherCON Feed Thru Connector with SE8FD Sealing Kit

OUR PART #:  NE8FDP-SE

Neutrik's NE8FDP-SE is an RJ45 feedthrough receptacle featuring a D-shape metal flange with latch lock. This model includes mounting screws and the SE8FD sealing kit.
Learn More
Our Price: $12.18
List Price: $13.67
You save 11%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NE8FDP-SE
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Neutrik's NE8FDP-SE is an RJ45 feedthrough receptacle featuring a D-shape metal flange with latch lock. This model includes mounting screws and the SE8FD sealing kit.

The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lighting network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.

The D-Series offers the most rugged design of the etherCON series and is perfectly suitable for panel mount and the installer market. Does not intermate with CAT6 cable connectors.

Neutrik NE8FDP-SE Features:

  • Waterproof according to IP54 standards
  • Accommodates NE8MC or any standard RJ45 plugs
  • Approved latch lock system
  • Mountable from the front or rear of the panel
  • Complies with CAT5e according to TIA / EIA 568B and ISO / IEC 11801 standards

Neutrik NE8FDP-SE Specifications:

  • Product:
    • Title: NE8FDP-SE
    • Gender: Female
  • Electrical:
    • Contact resistance: < 10 mOhms
    • Dielectric strength: 1 kVdc
    • Frequency range: 1 - 100 MHz
    • Insulation resistance: > 0.5 GOhms
    • Rated current per contact: 1.5 A
    • Rated voltage: < 50 V
    • Transmission performance: CAT 5e
    • Standard compliance: TIA/EIA 586B, IEC11801
  • Mechanical:
    • Insertion force: = 20 N
    • Withdrawal force: = 20 N
    • Lifetime: > 1,000 mating cycles
    • Panel thickness: 2 mm to 4 mm , 0.08" to 0.16''
    • Wiring: Feedthrough
    • Locking device: Latch lock
    • Chassis shape: D
  • Material:
    • Contact plating: 0.2 µm Au over Ni plating
    • Contacts: Bronze (CuSn8)
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell plating: Chromium
  • Environmental:
    • Flammability: UL 94 V-0
    • Temperature range: -30°C to +80°C
