Philips Commercial Displays BDL5588XC 55" X-Line Direct LED Backlight Ultra Narrow Bezel FHD Commercial Video Wall Display

OUR PART #: BDL5588XC

Copied to clipboard

Create new stopping power and impress your audience with a most impactful video wall thanks to the Ultra Narrow Bezel on the Philips BDL5588XC display. ...Read more

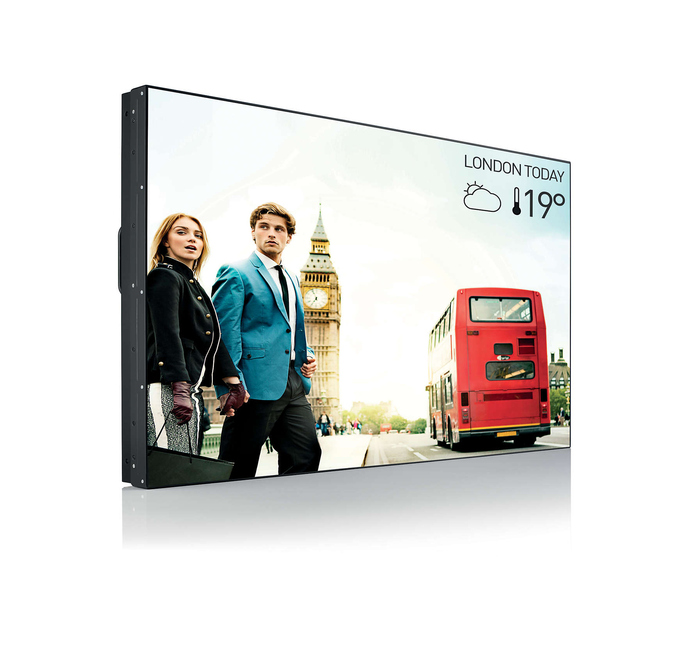

Philips Commercial Displays BDL5588XC 55" X-Line Direct LED Backlight Ultra Narrow Bezel FHD Commercial Video Wall Display Image 1
Philips Commercial Displays BDL5588XC 55" X-Line Direct LED Backlight Ultra Narrow Bezel FHD Commercial Video Wall Display
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

Create new stopping power and impress your audience with a most impactful video wall thanks to the Ultra Narrow Bezel on the Philips BDL5588XC display. Along with this ultra narrow bezel as well as its stunning picture quality, you are sure to create a most memorable visual experience.

Philips BDL5588XC Includes:

  • BDL5588XC unit
  • Remote Control with batteries
  • AC Power Cord
  • VGA cable
  • RS232 cable
  • User manual on CD-ROM
  • Quick start guide
  • Edge alignment pins
  • Edge alignment plates

Philips BDL5588XC Features:

  • Optimized for public viewing:
    • Full HD direct LED backlight technology for brilliant images
    • IPS wide view technology for image and color accuracy
    • Designed for 24/7 operation
  • Maximizing the impact of your message:
    • Immersive visual experience with Ultra Narrow Bezel
    • Color Calibration kit to ensure uniform colors
  • Innovative solutions for any signage application:
    • Optional OPS Insert to create an all-in-one solution
  • Caring about you, your business, and your audience:
    • SmartPower for energy saving
    • Keep your content up and running with FailOver

Philips BDL5588XC Specifications:

  • Picture/Display:
    • Diagonal screen size: 54.6" (138.7cm)
    • Panel resolution: 1920x1080p
    • Optimum resolution: 1920 x 1080 @ 60 Hz
    • Brightness: 500 cd/m²
    • Contrast ratio (typical): 1400:1
    • Dynamic contrast ratio: 500,000:1
    • Response time (typical): 12 ms
    • Aspect ratio: 16:9
    • Viewing angle (H / V): 178° / 178°
    • Pixel pitch: 0.63 x 0.63mm
    • Display colors: 1073 M
    • Picture enhancement: 3/2 - 2/2 motion pull down, 3D Combfilter, Motion compens. deinterlacing, Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement
  • Supported Display Resolution:
    • Computer formats (Resolution/Refresh rate):
      • 640 x 480/60, 67, 72, 75Hz
      • 800 x 600/56, 60, 72, 75Hz
      • 1024 x 768/60Hz
      • 1280 x 768/60Hz
      • 1280 x 800/60Hz
      • 1280 x 1024/60Hz
      • 1360 x 768/60Hz
      • 1366 x 768/60Hz
      • 1440 x 900/60Hz
      • 1600 x 1200/60Hz
      • 1920 x 1080/60Hz
      • 1920 x 1200/60Hz
      • 3840 x 2160/30Hz
    • Video formats (Resolution/Refresh rate):
    • 480i/60Hz
    • 480p/60Hz
    • 576p/50Hz
    • 576i/50Hz
    • 720p/50, 60Hz
    • 1080i/50, 60Hz
    • 1080p/50, 60Hz
    • 2160p/30Hz
  • Connectivity:
    • Video input: Component (RCA), Composite (RCA), DVI-D, HDMI (x2), VGA (Analog D-Sub), DisplayPort (1.2)
    • Video output: DisplayPort, DVI-I, VGA (via DVI-I)
    • Audio input: 3.5 mm jack, Audio Left/Right (RCA)
    • Audio output: Audio Left/Right (RCA), External speaker connector
    • External control: IR (in/out) 3.5 mm jack, RJ45, RS232C (in/out) 2.5 mm jack
    • Other connections: OPS
  • Convenience:
    • Signal Loop Through: RS232, VGA, DisplayPort, DVI, IR Loopthrough
    • Ease of installation: Carrying Handles
    • Energy saving functions: Ambient light sensor, Smart Power
    • Network controllable: RS232, RJ45, Card OPS RS232, One Wire (HDMI-CEC)
    • Placement: Portrait, Landscape
    • Screen saving functions: Pixel Shift, Low Bright
    • Tiled Matrix: Up to 10 x 10
  • Physical:
    • Bezel thickness: 3.5 mm
    • Bezel width: Top/Left: 2.3mm, Bottom/Right: 1.2mm
    • Product dimensions (W x H x D): approx. 48" x 27" x 4.2" (1213.4 x 684.2 x 107.65mm)
    • Product weight: approx. 64.5 lbs (29.2 kg)
    • VESA Mount: 400 x 400 mm
    • Operating conditions:
      • Temperature range (operation): 32°F ~ 104°F (0°C ~ 40°C)
      • Temperature range (storage): -4°F ~ 140°F (-20°C ~ 60°C)
      • Altitude: approx. 0 ~ 9843ft (0 ~ 3000m)
      • Relative humidity: 20% ~ 80 %
    • MTBF: 60,000 hour(s)
  • Power:
    • Consumption
    • On mode: 110 W (EnergyStar 6.0 test method)
    • Standby:
  • Sound:
    • Built-in speakers: 2 x 10W (RMS)
  • Accessories:
    • Optional accessories (sold separately): Edge finishing kit, Colour Calibration Kit (CCK4601), HDBaseT OPS Receiver (CRD25)
  • Miscellaneous:
    • On-Screen Display Languages: Arabic, Simplified Chinese, Traditional Chinese, English, French, German, Italian, Japanese, Polish, Russian, Spanish, Turkish
    • Regulatory approvals: CE, FCC, Class B, UL/cUL, CB, GOST, EPEAT
    • Warranty: 3 year warranty
