Radio Design Labs FP-DFC2
Digital Audio Format Converter, 24/192

OUR PART #:  FP-DFC2

The Radio Design Labs FP-DFC2 is part of the group of versatile FLAT-PAK products from Radio Design Labs.
Learn More
Our Price: $441.14
List Price: $632.28
You save 30%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Radio Design Labs FP-DFC2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Radio Design Labs FP-DFC2 is part of the group of versatile FLAT-PAK products from Radio Design Labs. The unique FLAT-PAK case can be directly screwed or bolted to cabinets or shelves. Optionally available rack-mounting accessories permit single or multiple FLAT-PAK module mounting. All FLAT-PAK modules are supplied with a power interconnect cable for daisy-chaining multiple modules from a single power supply.

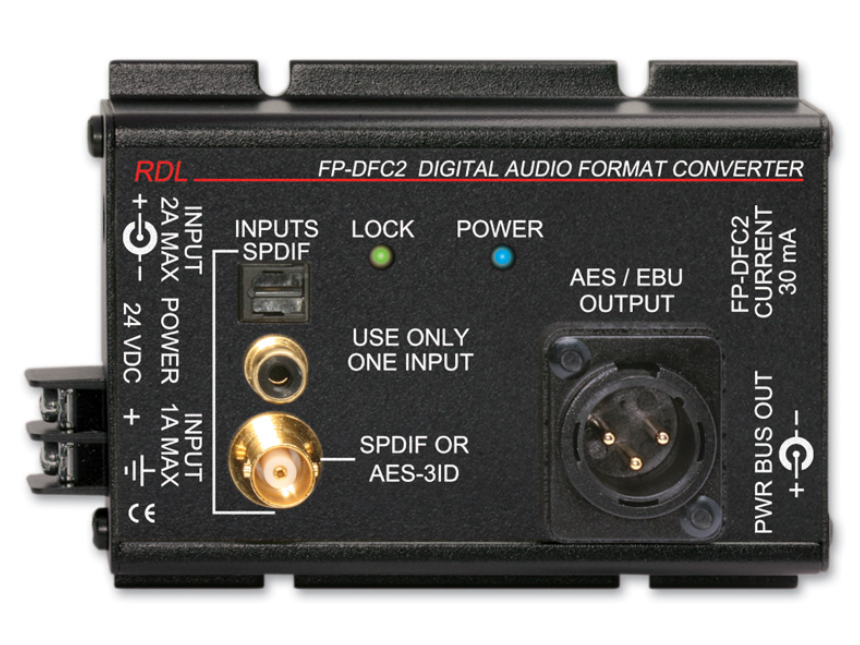

The FP-DFC2 is the ideal choice in many applications where an SPDIF source must be connected to AES/EBU professional digital audio equipment. The digital input and output connections are made on the top panel jacks. Power connections are made using either the full-size barrier block terminals or a dc power jack located in an end panel. A second dc power jack is provided on the other end panel for connecting additional Flat-Pak modules.

Three jacks are provided for SPDIF inputs: Phono, BNC and Optical. The BNC jack can also receive an AES-3ID signal. Any one of these input jacks may be used. The AES/EBU output connects through an XLR jack. The electrical output is transformer isolated. The input signal is decoded and reassembled in the AES/EBU format. All header information common to both SPDIF and AES/EBU standards is inserted in the output data stream. An LED indicator is illuminated when a valid, locked digital input signal is being converted to the output.

A frequent problem encountered with consumer and professional quality digital audio equipment is unpredictable latch-up when digital signals are switched or connected to a digital input. Sure-Lok™ auto-recovery circuitry unique to the FP-DFC2 monitors the most frequent causes of latch-up and reinitiates digital signal lock, bringing a new higher level of stability to digital audio format conversion under the variety of conditions encountered in professional environments.

The FP-DFC2 has several unique features which set it apart from other professional converter devices: 1] All header information common to both formats is provided in the AES/EBU output, not just selected information. 2] Anti-latch-up control circuits provide highly stable operation. 3] The electrical output is transformer isolated. 4] The FP-DFC2's design permits it to be easily mounted, particularly in confined spaces and in various locations in equipment racks.

Radio Design Labs FP-DFC2 Features:

  • Conversion from SPDIF to AES/EBU
  • Conversion from AES-3ID to AES/EBU
  • Exclusive Sure-Lok™ Auto-Recovery
  • Automatic Sample Rate Detection
  • Coaxial or Optical Input
  • Valid Signal LOCK LED Indicator
  • Transformer Isolated Output
  • Full Operation up to 24 bit / 192 kHz
  • Cabinet, Shelf or Rack Mounting

Radio Design Labs FP-DFC2 Specifications:

  • Inputs: 75 Ohm SPDIF (phono or BNC) or optical, AES-3ID (BNC)
  • Output: AES/EBU balanced XLR transformer isolated
  • Sample Rate: 32 kHz to 192 kHz
  • Resolution: 16 to 24 bits
  • Standards: IEC958, SPDIF and EIAJCP340/1201; AES3-1992Amendment 3-1999
  • Indicators: LED LOCK indicator (locked to a valid signal); POWER
  • Ambient Operating Environment: 0° C to 55° C
  • Power Requirement: 24 Vdc @ 30 mA, Ground-Referenced
  • Overall Dimensions (HxWxL): 1.34" x 3.25" x. 4.81" (3.40 x 8.26 x 12.22 cm)
  • Package Type: Cardboard Box
  • Package Dimensions: 4.375" x 7" x 2.25"
  • Shipping Weight: 0.84 lbs.
  • WEEE weight: 0.58 lbs.
