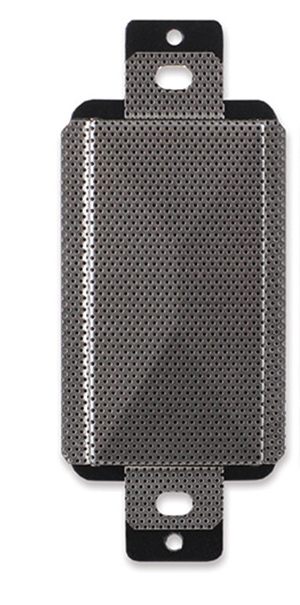

RDL DS-SP1A 2W Decora-Style 8 Ohm Loudspeaker, Stainless Steel

The Radio Design Labs D SERIES-SP1A is a compact 8 ohm loudspeaker that delivers rich, detailed sound in Decora-compatible wall or chassis mounts. The driver is constructed of materials found in premium larger speakers. The unique steel enclosure provides full baffling in a tightly sealed rigid structure. This produces sonic presence within an extended frequency range expected from larger speakers. Internal filtering rolls off out-of-band frequencies to reduce distortion and increase peak power capability. Dispersion covers a spherical area of nearly 180 degrees with the speaker mounted in a wall.

The input is connected through a 2-position detachable terminal block on the rear panel. The D SERIES-SP1A operates with a continuous audio input up to 2 watts, making it suited to be driven by speech or music content from amplifiers with a maximum rated power of up to 10 W. Models are available with grills in black (DB-SP1A), white (D-SP1A), gray (DG-SP1A) or stainless steel (DS-SP1A).

Radio Design Labs The DS-SP1A Features:

• Acoustically Optimized Decora Enclosure
• Fidelity Comparable to Larger Drivers
• Exceptional Audio Quality for Ultra-Compact Size
• Rich Presence and Detailed Clarity
• Hemispherical Dispersion Mounted In Wall or FlatSurface
• Convex Aluminum Cone with Rubber Surround
• Neodymium Motor

Radio Design Labs The DS-SP1A Specifications:

• Input Power: 2 W RMS (modulation peaks limited to 10W
• Input Connection: Detachable terminal block (14 to 24AWG)
• Impedance: 8 Ohms (nominal)
• Frequency Range: 150 Hz to 20 kHz, nominal
• Sensitivity: 78 dB (1 W, 1m nominal)
• Enclosure: Powdercoated steel
• Grill: Formed perforated steel
• Dimensions: Height: 4.1 in. 10.4 cm; Depth: 2.07 in.5.26 cm (with terminal block); Width: 1.72 in. 4.37 cm
• Mounting: Mounts in US electrical box, RDLinternational wall boxes WB-, surface mount box SMB-, or desktop chassis’ DC-available separately.
• Mounting Box Minimum Depth: 2 in. 5.08 cm
• Package Type: Cardboard Box
• Package Dimensions: 3.625 x 4.625 x 2.125 in
• Shipping Weight: 0.525 lbs. (D-SP1A, DB-SP1A); 0.525lbs. (DS-SP1A)
• WEEE weight: 0.390 lbs. (D-SP1A, DB-SP1A); 0.380 lbs. (DS-SP1A)
