ETC ColorSource Linear 1 Deep Blue RGBL LED Linear Fixture, 1/2m with Edison Cable

OUR PART #: CSLINEAR1DB-A MFR #: 7414A1040-A

Copied to clipboard

The ETC ColorSource Linear combines the bright, bold output of the ColorSource family with a sleek linear design to create a versitile and affordable strip light. ...Read more

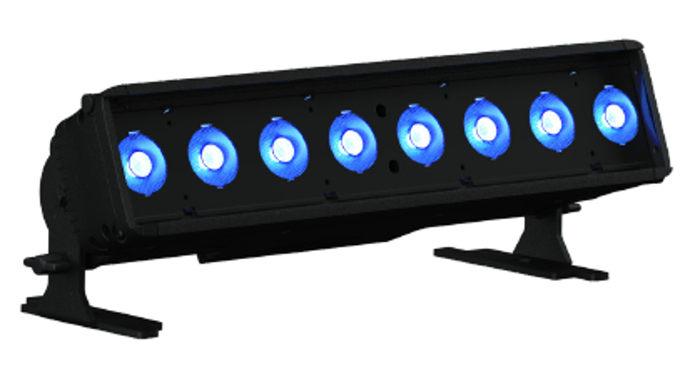

ETC ColorSource Linear 1 Deep Blue RGBL LED Linear Fixture, 1/2m With Edison Cable Image 1
8kyLjtfN2kU
2 Videos
ETC ColorSource Linear 1 Deep Blue RGBL LED Linear Fixture, 1/2m With Edison Cable
Our Price: $1,168.00
List Price: $1,460.00
You save 20%!

SPECIAL FINANCING AVAILABLE

Synchrony Music & Sound Card
$33/mo* with 36 month financing. ‡
Limited Time. Learn How
Item has an extended delivery time. Please call our Sales Pros for up-to-date information on product availability or alternatives.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The ETC ColorSource Linear combines the bright, bold output of the ColorSource family with a sleek linear design to create a versitile and affordable strip light. Whether being used to create a stunning wash of light on your stage or to light a wall, the ColorSource Linear uses ETC’s unique RGB-L color system to provide beautiful LED lighting.

Applications:

  • House of worship
  • Universities and schools
  • Hospitality
  • Retail
  • Exhibition centers
  • Meeting rooms
  • Clubs
  • Cafetoriums

ETC CSLINEAR1DB-A Features:

  • Length: 0.5 Meters - one cell of control
  • ETC’s RGB-L chipset - Deep Blue
  • Homogenized optics
  • Simple user interface with seven-segment display
  • PowerCon in and thru power connections
  • DMX in and thru (5-pin XLR or RJ45)
  • RDM or local configuration
  • LED droop compensation for consistent output
  • Optically calibrated
  • Tour-ready, aluminum housing

ETC CSLINEAR1DB-A Specifications:

  • General:
    • RGB-L chipset color-mixing wash luminaire with eight emmitters
    • IP20-rated for indoor use
    • Power- and DMX-in/thru connections for simple setup
    • Seven-segment, three-button interface
    • 12 onboard, customizable presets and five sequences
  • Physical:
    • Rugged, die-cast, aluminum housing
    • Two secondary lens slots
    • Color: Black
    • Trunnions included
  • Elecrical:
    • 100VAC to 240VAC 50/60Hz universal power input
    • PowerCon in and thru power connections
    • Up to nine luminaires (15A max) may be linked via power thru connector
    • Up to 10 luminaires total per circuit when used with ETC R20 relay module or Unison® Echo Relay Panel
      • Consult breaker trip curves when used with other equipemnt
    • Requires power from a non-dimmable source
    • Inrush (Linear 1/Linear 2/Linear 4):
      • 120V: 35A/35.6A/67.5A (First half-cycle)
      • 240V: 49A/85.6A/153A (First half-cycle)
    • ETL Listed to UL1573
  • LED*: *See additional LED notes and photometrics on page 3 of Spec Sheet
    • 20,000-hour LED life (at 70% intensity)
    • 40 Luxeon® Z LED emitters (five per optic)
  • Color:
    • Deep Blue array
    • Unparrallelled brightness and color range
    • Droop compensation maintains color accuracy during use
    • Optically calibrated to ensure consistency across fixture
  • Optical:
    • Homoginized optics for a consistent, smooth beam
    • Primary field angle of 24.9° and beam angle of 14.5°
    • Secondary lenses available for multiple beam-spread options. Refer to accessories charts for lenses available
  • Control:
    • DMX512 in and thru via five-pin XLR or RJ45 connectors (End-of-line termination required)
    • RGB, IRGBS, Direct and single channel control (See DMX control table for additional information)
    • 15-bit virtual dimming engine provides smooth, high-quality theatrical fades
    • RDM support for address and setting changes
    • Local control of presets (12) and sequences (5)
  • Thermal:
    • Luminiare is designed for continuous operation up to 104°F (40°C) ambient temperature and requires free flow of air around fixture housing
    • Ambient operating temperature of 32° to 104°F (0° to 40°C)
    • Active electronic thermal management using variable-speed fan
