Leader Instruments LV7330
Multi SDI Rasterizer

OUR PART #:  LV7330

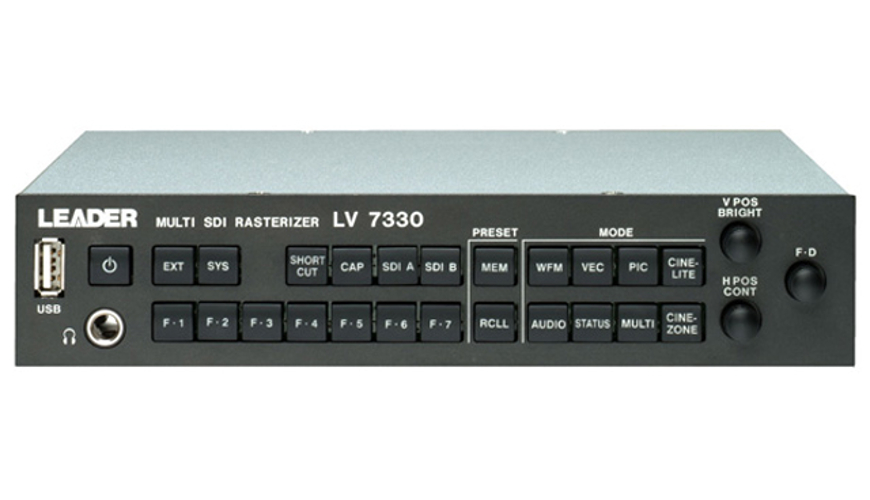

The Leader Instrumnets LV7330 Multi SDI Rasterizer is a highly functional, compact, light-weight SDI rasterizer that boasts exceptional cost performance.
Learn More
Our Price: $4,894.66
List Price: $8,157.76
You save 40%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Leader Instruments LV7330
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Leader Instrumnets LV7330 Multi SDI Rasterizer is a highly functional, compact, light-weight SDI rasterizer that boasts exceptional cost performance. When the LV7330 is connected to an external XGA or WXGA monitor, it can display the picture of an SD/HD SDI signal in addition to video signal waveforms, vectors, audio data and data analyses of the signal. The LV7330 also comes standard-equipped with CINELITE® II, a convenient tool for analyzing luminance data.

On-Picture measurements as well as true-color and false-color displays allow unprecedented understanding over picture levels and improve collaborative work between creative and technical while providing the direction needed for the post production process. Various multi-display combinations allow for complete and easy monitoring while full-screen presentations provide a wealth of information and enable detailed review of the material.

Picture, waveform, vector, 5-bar, audio, status as well as CINELITE® and CINEZONE® displays provide all of the features needed in the field and in the rack. USB drive connectivity allows you to capture pictures for documentation purposes, personalize presets and perform software updates.

Leader Instrumnets LV7330 Includes:

  • (1) Instruction Manual
  • (1) AC Adapter
  • (1) 15-pin D-sub connector
  • (1) 15-pin D-sub connector cover
  • (1) Ferrite Core

Leader Instrumnets LV7330 Features:

  • Monitors 2 HD/SD-SDI Sources and displays Picture, CINELITE®, CINEZONE®, Waveform, Vector, 5-Bar, Audio and Status Displays invarious combinations
  • DVI-I XGA Output (1024 x 768) for superb, crisp waveforms and picture representations; Supports 16 x 9 and 4 x 3 monitors
  • CINELITE® On-Picture Measurements, CINEZONE® false color displays and peaking function facilitate quick camera focus and exposure setups
  • Now, with S-LOG2 Exposure Function capabilities for under-exposed and over-exposed shots, as well as custom false color displays
  • Effortlessly monitors R,G,B Levels & Composite Gamut with innovative 5-Bar Display
  • Time-Code Referenced Gamut Error Logs facilitate material Q/A and improve workflows
  • User Settable Error Levels & Alarms facilitate worry-free monitoring
  • Embedded Audio is displayed and 2 Audio Channels (User Selectable) are fed to a headphone monitoring output
  • Pictures and Waveform representations can be captured, reviewed and compared to Live
  • USB connector allows the use of a flash drive for storing captured screens, presets and software/firmware updates
  • Various display adjustments facilitate monitor matching within a Production or Studio environment
  • 30 Presets permit quick access to Setups; USB Storage of Presets allows each user to personalize the instrument
  • Provides HD/SD-SDI switched output of the selected source
  • Accepts Black Burst as well as Tri-Level Sync for external reference and facilitates system timing
  • Rackmounts in a 1/2-rack wide by 1 rack high space
  • 10 – 18 Vdc Operation (XLR); AC Adaptor included

Leader Instrumnets LV7330 Specifications:

  • Environmental Conditions:
    • Operating Temperature: 0° to 40°C
    • Operating Humidity: 85% RH or less (no condensation)
    • Optimal Temperature: 10° to 30°C
    • Optimal Humidity: 85% RH or less (no condensation)
  • Power Supply:
    • Voltage: 10 to 18 VDC (XLR connector)
    • Power Consumption: 18W max.
    • Dimensions (excluding protrusions)(WxHxD): 8.46" x 1.73" x 9.84" (215 x 44 x 250 mm)
    • Weight (excluding options): 1.3 kg
  • Input / Output Connectors:
    • SDI Input:
      • Input Connector: Two BNC connectors (A/B switching)
      • Input Impedance: 75?
      • Input Return Loss: = 15dB for 5MHz to the serial clock frequency
      • Maximum Input Voltage: ± 2V (DC + peak AC)
    • External Reference Input *1:
      • Input Signal: Tri-level Sync or NTSC/PAL Black Burst signal
      • Input Connector: One pair of BNC connectors
      • Input Impedance: 15k? passive loop-through
      • Input Return Loss: = 30dB for 50kHz to 30MHz
      • Maximum Input Voltage: ± 5V (DC + peak AC)
    • AES/EBU Input:
      • Input Connector: One BNC Connector
      • Supported Formats: IEC 60958
      • Sampling Frequency: 48kHz
      • Input Impedance: 75?
      • Maximum Input Voltage: ± 5V (DC + peak AC)
    • SDI Output:
      • Output Signal: Reclocks and transmits the selected SDI input signal
      • Output Connector: One BNC connector
      • Output Impedance: 75?
      • Output Voltage: 800 mVp-p ± 10%
    • DVI-I Output:
      • Output Connector: One DVI-I connector
      • Signal Format: Single Link T.M.D.S. analog RGB
      • Output Format:
        • XGA (1024 x 768)
        • Supports wide displays (using squeeze methods)
      • DDC: Not supported
      • HOT PLUG Detection: Not supported
    • Headphone Output:
      • Output Signal: The LV7330 extracts and transmits the audio signal embedded in an SDI signal (must be synchronized to the video signal)
      • Output Connector: One 6.3mm (1/4 in.) stereo jack
      • Volume Adjustment: Configured in the menu
      • Impedance: 32? (16 to 600?)

*1: If the video signal waveform or phase difference is displayed using anexternal sync signal as reference, the waveform phase one clock before orafter an SDI signal is inserted or removed or the power is turned on is indefinite

  • Control Connectors:
    • USB Connector:
      • Function: Used to save screen captures, event logs, preset data, and data dumps
      • Specifications: USB 2.0
      • Media: Only USB memory devices are supported
    • Remote Connector:
      • Function: Used to recall preset settings, display a tally light, and switch input channels (A/B)
      • Control Signal: TTL level (active-low logic)
      • Control Connector: 15-pin D-sub (female)
    • Ethernet Connector:
      • Function: Used to control the LV7330 from a PC and monitor errors and other events
      • Compliant Standard: IEEE 802.3
      • Control Connector: One RJ-45 connector
      • Type: 10Base-T/100Base-TX (automatic switching)
      • Supported Protocols: TELNET, FTP, SNMP
Single Rack Kit
Leader Instruments LR-2481-U Single Rack Kit
The Leader Instruments LR-2481-U is a single half-rack by 1 RU for the LV7330 or the LT4600.
