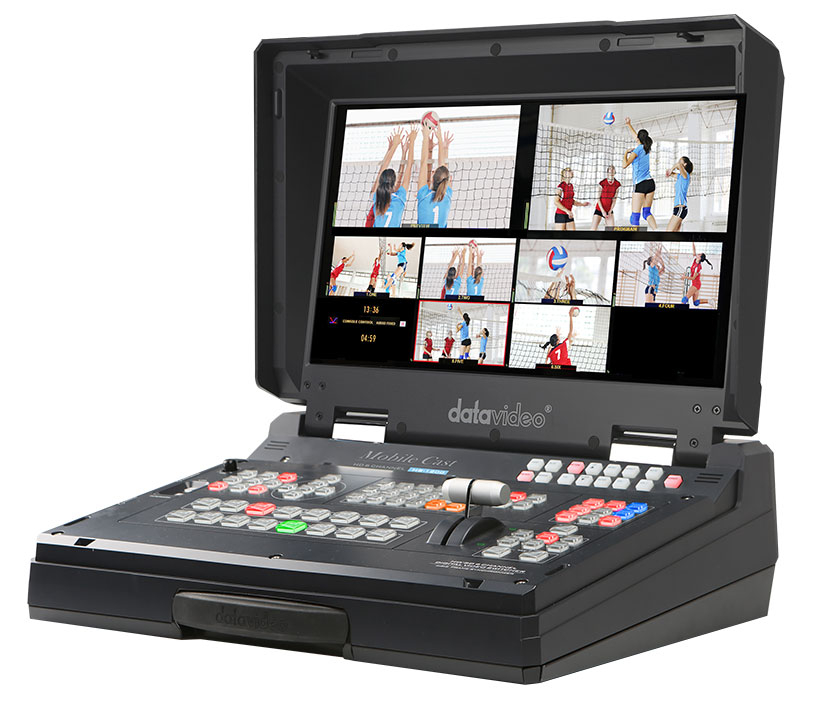

Datavideo Corporation HS-1200
6 Input HD Mobile Studio with HD-SDI and HDMI Inputs.

OUR PART #:  DATAVIDEO-HS-1200

The Datavideo Corporation HS-1200 HD portable production studio is a cost effective 6 channel broadcast-quality hand-carry mobile switcher...
Learn More
Our Price: $2,999.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Datavideo Corporation HS-1200
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Datavideo Corporation HS-1200 HD portable production studio is a cost effective 6 channel broadcast-quality hand-carry mobile switcher, it is designed for live events and TV programs that need to mix a variety of video and audio sources. The HS-1200 is a lightweight, portable and powerful featured mobile studio solution.

Friendly and advanced features include a 17.3" video monitor, which displays the multi-view. The Multi-view includes all the input sources, as well as preview and program.

HS-1200 is low power consumption and it is ideal for TV and video professionals working in outside broadcast or on-the-go video studios, such as theatres or conference centers. The HS-1200 is also a great value solution for the worship, education and AV market.

Datavideo Corporation HS-1200 Includes:

  • 1x HS-1200 Product
  • 1x AD Switch DC 12V with AC Cord
  • 1x Thank You Card

Datavideo Corporation HS-1200 Features:

  • Inputs: 4 x SDI, 2 x HDMI
  • Outputs: 2x SDI, 1x HDMI (multiviewer only)
  • 2 x Upstream Keyers, supporting Chroma Key & Linear/Luma Key
  • 2 x DSK, supporting Linear & Luma Key Modes
  • 1 x PIP (assignable to any of the 4 keyers)
  • Built-in 17.3” HD LCD monitor that displays Program and Preview on asingle screen.

Datavideo Corporation HS-1200 Specifications:

  • Model Name: HS-1200
  • Product Name: HD 6-Channel Portable Video Studio
  • Video Standard: HD
  • Video Format:
    • 1080i 50/59.94/60Hz
    • 720p 50/59.94/60Hz
  • Input Routable / Crosspoint: All 6, repeatable
  • Video Input:
    • Total 6 inputs
      • 2x HDMI (RGB/YVU, 1080p/1080i/720p)
      • 4x SDI (1080i/720p)
  • Computer Graphic Interface: 2 via HDMI
  • Down-converted output: N/A
  • Video output:
    • 1x HDMI + 2x SDI assignable:
    • AUX 1-6, PGM, PVW, PGM Clean or Multiview
  • Audio input: 2x Balanced XLR
  • Audio output: 1x Stereo headphone
  • Embedded audio support: 2 ch Audio embedded
  • Audio Delay Calibration: N/A
  • A+V switching: N/A
  • USK: 2x USK support Chromakey
  • DSK: 2x DSK support Lumakey & Linear key (Key / Fill)
  • Picture in Picture: 1
  • Logo Insertion: N/A
  • Built-in Audio Mixer: selectable audio follow video master gain control
  • Built-in Monitor Display: 17.3” HD TFT LED backlit, 1600x900 pix
  • Built-in Intercom & Tally: N/A
  • Dimension (LxWxH): 455 x 355 x 134 mm
  • Weight: 17.6 Lbs (8 Kg), Reinforce Plastic Case
  • Accessory: CB-22H/23H/46/47/50
