iCON Cube [RESTOCK ITEM]
USB Audio Interface

OUR PART #:  CUBE-RST-01

iCON's Cube is a 24bit 96/192KHz 2-In/2-Out USB recording audio interface with 2x2 analog line I/O full duplex recording and playback.
Learn More
Sale Price: $99.00
List Price: $174.99
You save 43%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

iCON Cube [RESTOCK ITEM]
Qty:
In Stock
Similar Products

iCON's Cube is a 24bit 96/192KHz 2-In/2-Out USB recording audio interface with 2x2 analog line I/O full duplex recording and playback.

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

iCON Cube Features:

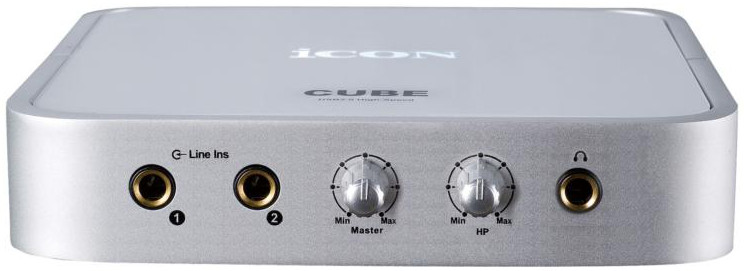

  • 2 analog inputs and 2 analog outputs on 1/4" TRS jacks
  • Master volume control on the front panel
  • 1 headphone output with individual volume control
  • USB2.0 High Speed equipped and USB bus-powered
  • Supports Direct sound, WDM and ASIO2.0
  • Compatible with Mac OSX (Intel CPU) and Windows XP,Vista (32 bits), Windows 7 (32-bit/64-bit), Windows 8 (32-bit/64-bit)
  • Full duplex, simultaneous record/playback
  • Rugged aluminum construction

iCON Cube Specifications:

  • Line Inputs 1/2 (Unbalanced):
    • Frequency Response: 22Hz to 22kHz (+/-0.1dB)
    • Dynamic Range: 100dB, A-weighted
    • Signal-to-Noise Ratio: -100dB, A-weighted
    • THD+N: <0.0061% (-90dB)
    • Crosstalk: -100dB @ 1kHz
    • Nominal Input Level: Unbalanced: +4dBV, typical
    • Maximum Input level: Unbalanced: +11dBV, typical
    • Input Impedance: 10K Ohms, typical
  • Line Outputs 1/2 (Unbalanced):
    • Frequency Response: 22Hz to 22kHz (+/-0.1dB)
    • Dynamic Range: 102dB, A-weighted
    • Signal-to-Noise Ratio: -102dB, A-weighted
    • THD+N: <0.003% (-90 dB)
    • Crosstalk: -100dB @ 1kHz
    • Nominal Output Level: Unbalanced: +4dBV, typical
    • Maximum Output Level: +11dBV, typical
    • Output Impedance: 150 Ohm
    • Load Impedance: 600 Ohm minimum
  • Headphone Outputs 1 & 2 (at Maximum Volume; Into100 Ohm load):
    • Frequency Response: 22Hz to 22kHz (+/-1dB)
    • Power into Ohms: 90 mW into 100 Ohms
    • THD+N: <0.06% (-66dB)
    • Signal-to-Noise Ratio: -90dB, A-weighted
    • Max Output Level into 100 Ohms: +2.0dBV, typical
    • Output Impedance: 75 Ohm
    • Load Impedance: 32 to 600 Ohms
  • General:
    • Weight: 5.9 lbs (2.7 kg)
    • Dimensions (LxWxH): 21.8" x 7.1" x 2.1" (553 x 180 x 53 mm)
