BeachTek DXA-MICRO-PRO
Active XLR Compact Adapter

OUR PART #:  DXA-MICRO-PRO

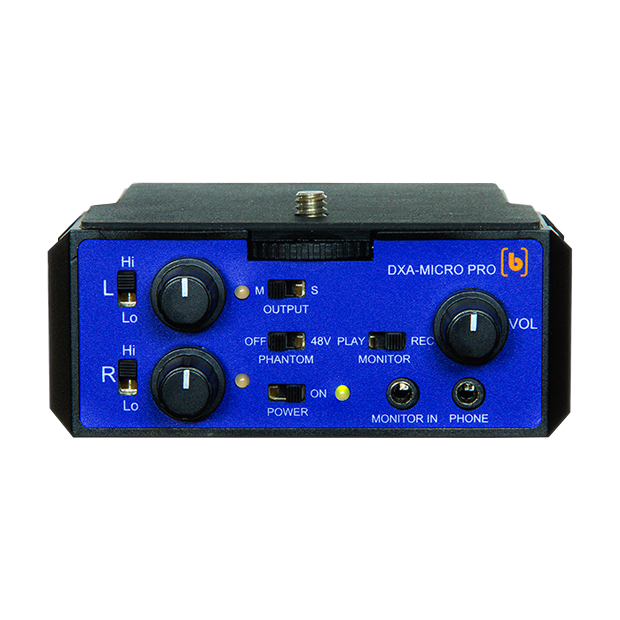

The BeachTek DXA-MICRO PRO is packed with all the features you need to record high quality audio from virtually any source.
Learn More
BeachTek DXA-MICRO PRO Adapter Camera Bottom
BeachTek DXA-MICRO PRO Adapter Camera Top
BeachTek DXA-MICRO PRO Adapter Inputs

Click a thumbnail to see more images. (5 total)

Our Price: $144.00
List Price: $149.00
BeachTek DXA-MICRO-PRO
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The BeachTek DXA-MICRO PRO is packed with all the features you need to record high quality audio from virtually any source. Superb operation and ease of use to make capturing pro audio a snap. Since the audio is recorded directly to the camera, it will always in sync with the video, eliminating the need for any post production processing. The compact size makes it ideal for use with the latest mirror-less cameras. The DXA-MICRO PRO is the missing link for connecting virtually any microphone to your camera.

BeachTek DXA-MICRO-PRO Includes:

  • Adapter
  • Two 3.5 mm to 3.5 mm output cables
  • Brass mounting foor, bolt, and allen wrench
  • Operating manual
  • Two year warranty

BeachTek DXA-MICRO-PRO Features:

  • Inputs:
    • One balanced XLR connector
    • Two unbalanced 3.5mm jacks with plug-in power
    • One stereo unbalanced 3.5mm jack with plug-in power
    • MONITOR IN for playback monitoring
  • Outputs: Unbalanced stereo mini-jack for connection to the camera
  • Headphone Monitor:
    • Built-in headphone amplifier with volume control
    • 3.5mm phone jack
  • Phantom Power: Switchable 48V phantom power for the XLR input
  • Level Indicators: Good/Over level indicators
  • Gain Switch: Two gain settings to match any microphone
  • Level Controls: Adjusts output level on each channel
  • Low Noise Preamplifiers:
    • Exceptionally low-noise circuitry for superb audio
    • Wide-bandwidth for full rich sound
  • Playback Monitor: Provides an easy way to monitor audio on playback
  • Power:
    • Easily replaceable 9 volt battery
    • Low battery indicator
  • Case: Sturdy extruded aluminum enclosure

BeachTek DXA-MICRO-PRO Specifications:

  • Maximum Input Levels:
    • LO gain: -14dBu
    • HI gain: -29dBu
  • Output Level: -26dBu when level indicators change to red
  • Frequency Response: 20Hz to 20kHz (+/- 0.5dB)
  • THD + N: Less than 0.03% @ 1kHz, -30dBu input
  • S/N Ratio: 85dB @ 1Khz, -30dBu input
  • Gain:
    • LO: +15dB
    • HI: +30dB
  • Phantom Power:
    • Regulated 48 volt power
    • Current to 14mA (direct short)
  • Plug-in Power: 3.5 volts on all mini-jack mic inputs
  • Battery Type: One 9 volt alkaline or lithium battery
  • Battery Duration:
    • 3 hours typical with alkaline battery (no phantom)
    • 8 hours typical with lithium battery (no phantom)
  • Dimensions (LxWxH): 4” x 3” x 1.5” (102 mm x 76 mm x 38 mm)
  • Weight: 12 oz. (0.3 kg)
