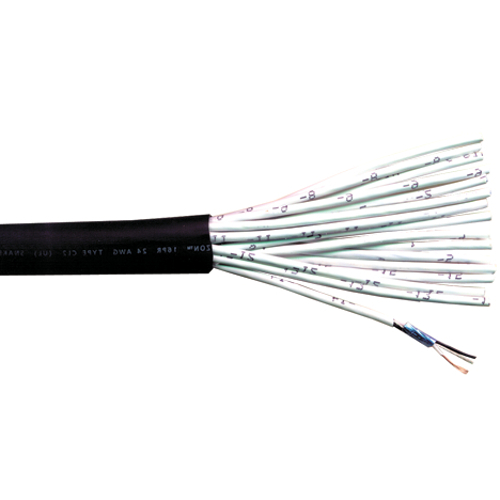

RapcoHorizon Music SN40-IJIS
40-Pair, 24 AWG Audio Snake Cable, Sold by the Foot

OUR PART #:  SN40-IJIS

The RapcoHorizon SN40-IJIS is an audio snake wire that features an overall CL2 PVC jacket and 40 pairs of 24 AWG polypropylene insulated, individually shielded...
Learn More
Our Price: $6.66
List Price: $8.88
You save 25%!

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

RapcoHorizon Music SN40-IJIS
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The RapcoHorizon SN40-IJIS is an audio snake wire that features an overall CL2 PVC jacket and 40 pairs of 24 AWG polypropylene insulated, individually shielded, individually jacketed, stranded bare copper conductors.

RapcoHorizon SN40-IJIS Specifications:

  • Conductor Gauge: 24 gauge
  • Shield: Alum/polyester tape and tinned copper drain
  • Shield Coverage: 100%
  • Jacket: Matte PVC
  • O.D.: 1"
  • Lay Length: 12"
  • Capacitance: 25 pF/ft. @ 1 kHz
  • Cond.-Shield Capacitance: 45 pF/ft. @ 1 kHz
  • Characteristic Impedance: 60 Ohms nominal
  • D.C. Resistance @ 20┬░C: 24.5 Ohms/1000 ft
