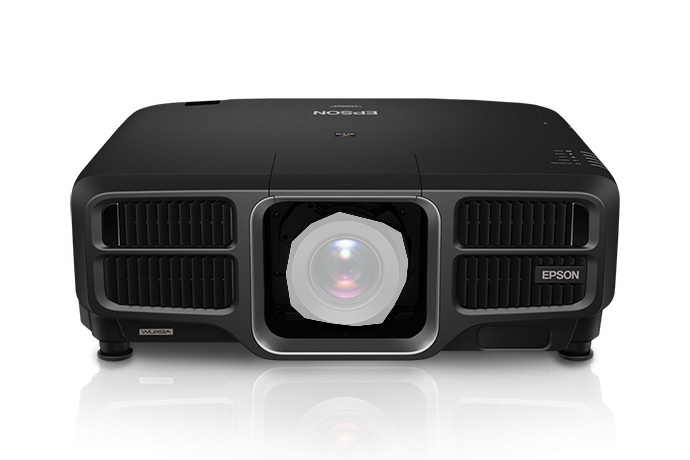

Epson V11H739820
Black Laser WUXGA 3LCD Projector with No Lens

OUR PART #:  V11H739820

The Epson V11H739820 Pro L1405UNL large-venue projector combines a laser light source and 3LCD technology for powerful, uncompromising images.
Learn More
Similar Products

The Epson V11H739820 Pro L1405UNL large-venue projector combines a laser light source and 3LCD technology for powerful, uncompromising images. Ideal for events staging, auditoriums and sanctuaries, this sleek, black projector features native WUXGA performance with Epson® 4K Enhancement Technology. Offering extraordinary color brightness, Epson 3LCD projectors ensure brilliant images. Delivering 8,000 lumens of color brightness and 8,000 lumens of white brightness, the L1405U's laser light engine also provides 20,000 hours of virtually maintenance-free operation. Plus, its exceptional integration capabilities include diverse connectivity such as HDBaseT™ and ten optional powered lenses (sold separately ) with lens shift and lens memory.

NOTE: Lens NOT Included

Epson L1405UNL Includes:

  • Pro L1405UNL projector
  • Power cable
  • Computer cable (VGA)
  • Projector remote control with batteries
  • User manual CD
  • EasyMP software CD
  • Quick Setup Sheet
  • Lens lock screw

Epson L1405UNL Features:

  • Bright and Colorful: Features 8000 lumens of color brightness (color light output)1 and 8000 lumens of white brightness (white light output)
  • Laser Light Source: Epson Projectors with Laser Light Source can operate up to 20,000 of virtually maintenance free operation
  • 4K Enhancement Technology: Epson's 4K Enhancement Technology delivers astonishing picture quality — every subtle intricacy is captured
  • SD-SDI: Extends the signal 300 feet and supports 1080p video frame rates
  • HDBaseT: Combines HDMI, ethernet and RS-232 into one cable
  • One measurement of brightness is not enough — look for both high color brightness and high white brightness.
    • The Pro L1405UNL has:
      • Color Brightness: 8,000 lumens
      • White Brightness: 8,000 lumens
  • Exceptional Full HD widescreen display — native WUXGA (1920 x 1200) with 4K Enhancement* (3840 x 2160) for presentations, videos, digital signage and more
  • Solid-state laser light source — provides 20,000 hours of virtually maintenance-free operation
  • Innovative 4K Enhancement Technology* — doubles the number of pixels from 2.3 million (WUXGA) to 4.6 million for extraordinary image and video quality
  • Versatile connectivity — supports the full range of inputs, including HDBaseT, HDMI®, DVI-D, SDI, VGA and 5-BNC, for easy integration with any system
  • Ten optional interchangeable lenses — with powered lens shift and lens memory, including an ultra short-throw lens for shallow spaces (sold separately)
  • Web-based remote management — control and monitor projector status via a Web browser
  • Dynamic projection capabilities — advanced built-in Edge Blending, image warping and curved-surface correction technologies for a variety of applications
  • Professional installation features — full 360-degree installation flexibility, including Portrait Mode
  • Industry-leading service and support — get peace-of-mind ownership with free next-business-day replacement3, plus postage-paid returns
  • Eco Features:
    • RoHS compliant
    • Recyclable product4
    • Epson America, Inc. is a SmartWay™ Transport Partner5


  • * 4K Enhancement Technology shifts each pixel diagonally by 0.5 pixels to double the resolution to 3840 x 2160 and surpass Full HD image quality.
  • 1 Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. The projectors used by a third-party lab for measuring color brightness were leading Epson 3LCD business and education projectors and leading 1-chip DLP projectors, based on NPD sales data for June 2013 through May 2014 and PMA Research sales data for Q1 through Q3 2013.
  • 2 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.
  • 3 Expedited shipping not available in all areas. Road Service orders must be in by 3 p.m. Eastern Time for Next-Business-Day delivery.
  • 4 For convenient and reasonable recycling options, visit www.epson.com/recycle
  • 5 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

Epson L1405UNL Specifications:

  • Projection System: High-aperture Epson 3-chip, 3LCD technology
  • Projection Method: Front / rear / ceiling mount
  • Driving Method: Epson Poly-silicon TFT Active Matrix
  • Pixel Number: 2,304,000 dots (1920 x 1200) x 3
  • Color Brightness - Color Light Output: 8000 lumens1
  • White Brightness - White Light Output: 8000 lumens1
  • Aspect Ratio: Supports 4:3, 16:9, 16:10
  • Native Resolution: 1920 x 1200 (WUXGA)
  • Resize: 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050
  • Brightness Uniformity: (typical) 90%
  • Pixel Arrangement: Cross stripe
  • Throw Ratio Range: Varies by lens
  • Size - projected distance: 50" – 300"
  • Keystone Correction (For Standard Lens):
    • Horizontal: ±30°
    • Vertical: ±45°
  • Contrast Ratio: Normal, Dynamic Mode: Up to 15,000:1
  • Color Processing: 10 bit
  • Color Reproduction: Up to 1 billion colors
  • Effective Scanning Frequency Range:
  • Pixel Clock, Horizontal,Vertical:
    • Pixel Clock: 13.5 MHz – 162 MHz (up to UXGA 60 Hz)
    • Horizontal: 15 KHz – 92 KHz
    • Vertical: 50 Hz – 85 Hz
  • Projection Lens:
    • Type: (For Standard Lens) Powered shift/focus / zoom
    • F-number: Varies by lens
    • Focal Length: Varies by lens
    • Zoom Ratio: Varies by lens
    • Lens Shift: (For Standard Lens)
    • Vertical: ±67°
    • Horizontal: ±30°
  • Video:
    • Video Processing:
      • Analog: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
      • HDMI: 480i / 576i / 480p / 576p / 720p /1080i / 1080p
      • DVI-D: 480i / 576i / 480p / 576p / 720p / 1080i / 1080p
    • Video Standards:
      • 3D Y/C separation, 3D noise reduction, mosquito noise reduction
      • DCDi — Directional Correlational DeinterlacingMotion-compensated Interlace-Progressive conversion (2:2, 3:2 film detection)
    • Super Resolution:
      • FineFrame Interpolation
      • 8:8 Pull-down Processing
      • Closed Captioning
  • Connectivity Projector:
    • Standard Connectivity:
      • Wired: Integrated 100Mbps
      • Wireless: Optional — 802.11b/g/n
      • Wireless Security: WPA-PSK (TKIP/AES) / WPA2-PSK(TKIP/AES)
    • Remote Control and Management:
      • Epson EasyMP® Monitor
      • Network projection
      • Multi-projection
      • AMX® Device Discovery
      • Crestron® Integrated Partner and Crestron RoomView®
      • Extron® IP Link and XTP
      • PJLink
  • General:
    • Temperature: 32° to 113° F (0° to 45° C)
    • Weight: 42.2 lb without lens
    • Security:
      • Security cable hole
      • Lens lock
      • Kensington® lock provision,
  • Projector Details:
    • Display Performance:
      • NTSC: 480 line
      • PAL: 576 line (depends on observation of the multi-burst pattern)
    • Input Signal:
      • NTSC/NTSC4.43/PAL/M-PAL/N-AL/PAL60/SECAM/480i/576i/480p/576p/720p/1080i/1080p
      • Pixelworks®:Video Chip 3D Y/C separation, noise reduction motion compensated Interlace-Progressive conversion (2 - 2, 3 - 2 film detection)
    • Interfaces:
      • 3G-SDI x 1
      • DVI-D x 1
      • HDMI x 1
      • HDBaseT x 1
      • 5-BNC, VGA x 1
      • Audio in: Mini
      • Stereo x 3
      • Variable audio out: Mini Stereo x 1
      • USB connector Type B x 1: For service only
      • USB connector Type A x 1: For wireless only
      • Monitor out: Mini D-sub 15 pin x 1
      • Serial: RS-232c x 1
    • Speaker: None
    •  Fan Noise:
      • Normal mode: 34 dB
      • ECO mode: 28 dB
    • Audio Output: None
  • Projector Dimensions:
    • Including feet With standard lens (WxDxH): 23.1" x 19.4" x 8.3"
    • Weight - with standard lens: 58 lb
    • Excluding feet - with standard lens (WxDxH): 21.02" x 29.17" x 10.04"
    • Including feet - with standard lens (WxDxH): 21.02" x 29.17" x 7.76"
  • Remote Control:
    • Features: Power, source search selection, lens shift, zoom, focus, test pattern selection, A/V Mute, freeze, user ID, auto, aspect, color mode, number, page up and down, E-zoom, volume, help, menu, enter, esc and pointer functions
    • Operating Distance: 49 ft
    • Operating Angle:
      • Right / Left:
        • Front: ±60°
        • Rear: ±30°
      • Upper / Lower:
        • Front: ±45° to ±15°
        • Rear: ±10° to ±50°
  • Power:
    • Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz AC
    • Power Consumption:
      • Normal mode: 658 W
      • ECO mode: 434 W
      • Communication on: 2.3W standby
      • Communication off: 0.22 W standby
