Wooden Camera 184500
Blackmagic Unified Studio Camera Accessory Kit (Base)

OUR PART #:  WC-184500

The Blackmagic Studio Unified Camera Accessory Kit (Base), model#: 184500 from Wooden Camera...
Learn More
Our Price: $849.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Wooden Camera 184500
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

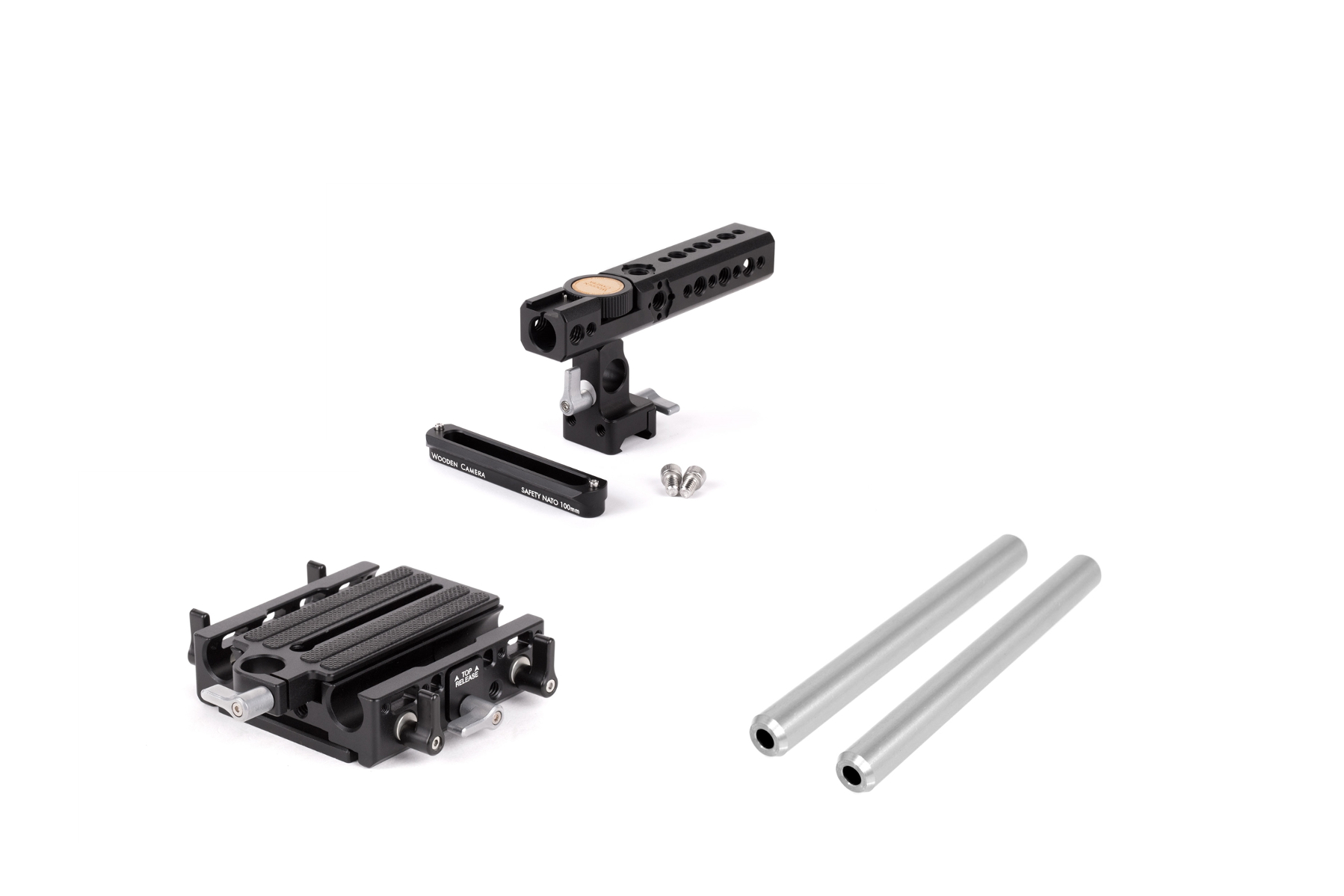

The Blackmagic Studio Unified Camera Accessory Kit (Base), model#: 184500 from Wooden Camera, is a basic camera support package specially designed for use with the Blackmagic Design Studio Camera. This accessory package includes: Unified Baseplate (URSA Mini, Sony F55, F5), a fixed baseplate that holds the two (2) 15mm Rods (12") at the correct lens height, along with the NATO Handle Kit (Plus, 100mm), a quick-release handle that attaches to the top of the camera.

Unified Baseplate
The Unified Baseplate (URSA Mini, Sony F55, F5) is a quick-release baseplate that offers lightweight 15mm rod support at the correct lens height. 15mm rods pass through front to back and have two locking thumbscrews per side. The baseplate quick releases in two ways, giving the user the option to take the 15mm lightweight rods or to leave them behind. The dovetail attached to the bottom of the camera is an ARCA Swiss standard shape which can integrate with many third party products. Additionally, there are threaded 1/4-20 holes on the bottom for attaching to gimbals or tripod plates when necessary. Also on this upper dovetail is a vertical 15mm rod opening which can be used to support a lens adapter foot directly in front of the camera body.

Includes:
(2) 1/4-20 low profile screw
(2) 3/8-16 low profile screw

http://cdn3.volusion.com/akmsw.skkga/v/vspfiles/photos/222200-2.jpg?1466767215

NATO Handle Kit (Plus, 100mm)
A quick-release top handle that attaches and detaches without screws, the NATO Handle Kit (Plus, 100mm) features a sideways 15mm tube clamp that allows for attachment of UVF Mount v2 (no clamp). Also offers a forward-facing 15mm rod opening and a 19mm rear rod opening for attaching single rods for focus motors, etc. Additionally, an integrated shoe mount is provided for attaching on-camera lights, microphone shock mounts, etc. 1/4-20 and 3/8-16 holes on the grip area allow for attaching additional accessories, plus 1/4-20 holes on the handle front let you attach Rod Clamps which allow for pass through rods, front-to-back.

A Safety NATO Rail (100mm) is included in kit, and attaches to two (2) 1/4-20 screw points spaced up to 72mm apart center-to-center.

Diagram of Safety NATO Rail (100mm) Screw Spacing

2x 15mm Rod (12")
15mm diameter iris rods used for mounting accessories like follow focus, matte box, lens support, servo motors, and more.

Wooden Camera 184500 Specifications:

Unified Baseplate:

  • Dimensions: 2" x 6" x 6" (50.8 x 152.4 x 152.4mm)
  • Weight: 0.8 lbs (362.8 g)

NATO Handle Kit (Plus, 100mm):

  • Dimensions: 5.1" x 3.0" x 1.3" (130.7 x 76.7 x 32.6mm)
  • Weight: 0.6 lb (251 g)

15mm Rod (12"):

  • Dimensions: 15mm x 12"
  • Weight: 12": 0.335 lb (152 g)
