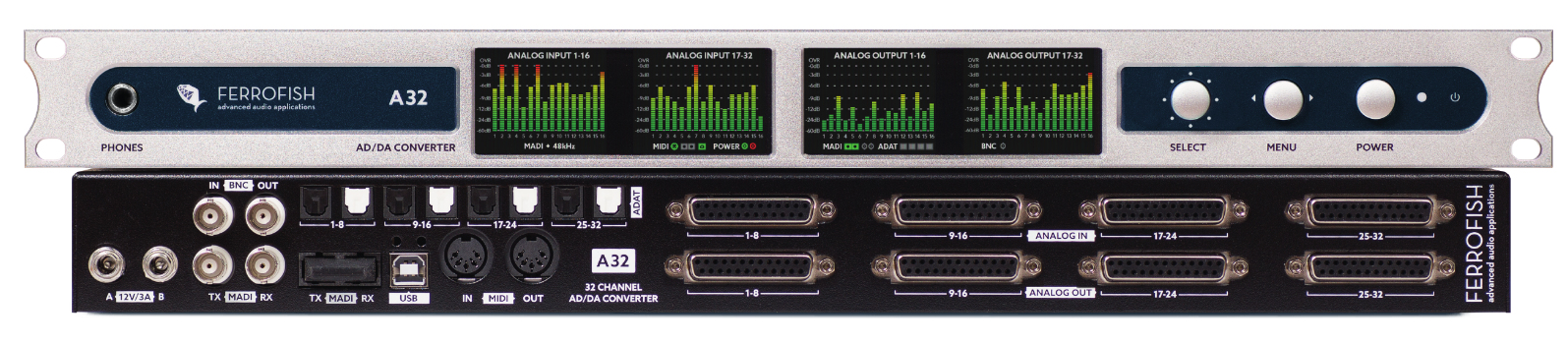

Ferrofish A32-DANTE 32x32 AD/DA Converter with Dante

The Ferrofish Dante Version has an additional interface with 64 digital inputs and 64 digital outputs, which can be easily integrated into existing DANTE networks. Alternatively, with an interconnection of two A32 DANTEs, a live recording on the computer of up to 64 channels is possible at any time. In this case, a separate sound card (such as, for example, when using the ADAT or MADI ports) is not necessary.

The intuitive operating concept and the redundancy options, as well as the multiple submix and routing possibilities, make the A32 DANTE an ideal component of every DANTE interconnected system.

The A32 is designed for MADI – the digital audio interface for professionals. Up to 64 channels can be transferred using a simple pair of glass fiber cables (or coaxial cable) spanning a distance of up to 1.2 miles.

Thanks to the MIDI over MADI feature, the A32 can be remote controlled using MIDI data embedded in the same MADI cable. The audio transfer between the MADI input and MADI output is done with zero latency, so you can daisy chain multiple A32 without any added latency or delay compensation.

Ferrofish A32-DANTE Features:

• Analog switches for selecting between +4dBu, +13dBu and +20dBu, and every channel you can set seperately
• All 64 analog channels clearly visible on high resolution level meters
• For the master clock we use a temperature compensated high quality oscillator
• Two power inputs
• Headphone connector
• DSP is connected to all 258 analog and digital channels, and is able tofreely route and mix all these signals

Ferrofish A32-DANTE Specifications:

• 32 balanced inputs, 32kHz -192kHz
• 32 balanced outputs, 32kHz -192kHz
• Temperature compensated oscillator (TCXO) with very low jitter and high stability
• MADI optical and coaxial
• MIDI over MADI
• 4x ADAT TOSLINK inputs
• 4x ADAT TOSLINK outputs
• SMUX up to 192kHz
• BNC Wordclock
• MIDI in/out plugs and MIDI over MADI
• Headphone/submix output for easy control
• 4x TFT Screens allow complete control of all levels and settings
• One Key Control - Allows easy and total control of all functions
• All 64 analog channels are visible at the same time, peak and level display
• No need to study the manual, multi-language help pages available
• Preset Management
• 400MHz SHARC DSP processes all 258 audio channels
• Extensive routing/mixing possibilities for countless applications
