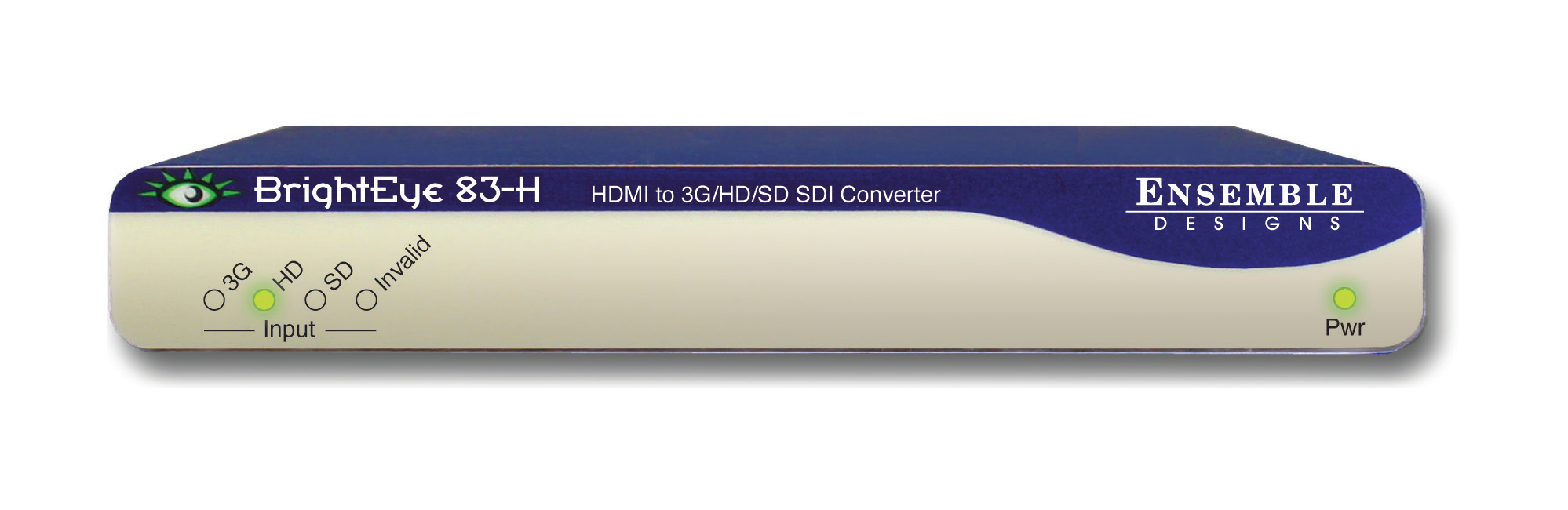

Ensemble Designs BrightEye 83-H
HDMI to 3G/HD/SD SDI Converter with HDCP

OUR PART #:  83-H

With the Ensemble Designs BrightEye 83-H, you can convert HDMI to 3G/HD/SD SDI. The format of the output follows the input, faithfully preserving its frame rate and resolution.
Learn More
Our Price: $570.00
List Price: $600.00
You save 5%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Ensemble Designs BrightEye 83-H
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

With the Ensemble Designs BrightEye 83-H, you can convert HDMI to 3G/HD/SD SDI. The format of the output follows the input, faithfully preserving its frame rate and resolution. It's great for GoPro, Replay, as well as other video cameras and HDMI sources. The BrightEye 83-H then provides the serial digital video signal on two BNC outputs. Signal monitoring and control is via the included BrightEye Mac and BrightEye PC software.

Ensemble Designs BrightEye 83-H Features:

  • Guaranteed to work perfectly with your GoPro camera
  • HDMI to SDI (3G/HD/SD formats supported)
  • Use with Cameras and Other Sources that have an HDMI Output
  • Passes Embedded Audio
  • Supports HDCP Encrypted Content

Ensemble Designs BrightEye 83-H Specifications:

Input:

  • Number: One (1), supports HDCP encrypted content
  • Type: HDMI 1.3
  • Format: Supports HDMI signals which map to the video standards listed below

Supported SDI Standards:

  • 1080i (SMPTE 274M -4,5,6) 50, 59.94 or 60 Hz
  • 720p (SMPTE 296M -1,2,3) 50,59.94 or 60 Hz
  • 1080p (SMPTE 274M -9,10,11) 23.98, 24, 25 Hz
  • 1080sF (RP211 -14,15,16) 23.98, 24, 25 Hz
  • 1080p (SMPTE 424M, 425M), 50, 59.94, 60, Level A
  • 525i, 625i (SMPTE 259M)

Serial Digital Output:

  • Number/Type: Two (2)/BNC
  • Signal Type: Follows input
  • Impedance: 75 Ohms
  • Return Loss: >15 dB to 1.485 GHz >10 dB to 2.97 GHz
  • Output DC: None (AC coupled)

General:

  • Dimensions (including connectors)(WxHxD)
    • 5.625" x 0.8"  x 5.5" (143 mm x 20 mm x 140 mm)
  • Power: 12 volts, 5 watts (100-230 VAC modular power supply)
  • Temperature Range: 32° F to 104° F (0° C to 40° C) ambient (all specs met)
  • Relative Humidity: 0 to 95° non-condensing
