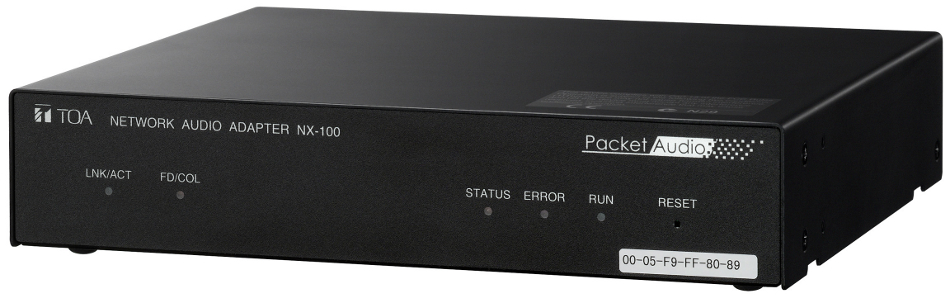

TOA NX-100 [RESTOCK ITEM]
Network Audio Adapter with Power Supply

OUR PART #:  NX100PSUS-RST-01

The TOA Electronics NX-100 Network Audio Adapter can transmit high-quality audio signals and such control data as serial data over IP networks (ex: LAN or Internet) in real time.
Learn More
Sale Price: $1,070.88
List Price: $1,797.69
You save 40%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

TOA NX-100 [RESTOCK ITEM]
Qty:
In Stock

Similar Products

The TOA Electronics NX-100 Network Audio Adapter can transmit high-quality audio signals and such control data as serial data over IP networks (ex: LAN or Internet) in real time. It is especially useful when transmitting audio signals to remote locations, as Internet use keeps running costs lower than the use of dedicated lines. With the use of an optional rack mounting bracket, it can be mounted in an EIA Standard rack (1 unit size).

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

TOA Electronics NX-100 Includes:

  • CD (PC Installation & Operation software programs, Instruction manuals)
  • Power supply removable terminal plug (3 pins)
  • Two Audio I/O removable terminal plug (3 pins)
  • Two Control I/O removable terminal plug (9 pins)
  • RS-232C connector cover
  • Eight Bracket mounting screw

TOA Electronics NX-100 Specifications:

  • Power Source:
    • 24 V DC (removable terminal block (3 pins) or
    • AC adapter AD-246 (optional) or the equivalent
  • Current Consumption: 200 mA (DC operation)
  • Audio Input:
    • 1 channel (transformer-isolated), -58 dB to 0 dB, balanced (MIC/LINE changeable, volume adjustable with volume control), 2 kOhm, removable terminal block (3 pins)
  • Audio Output: 1 channel (transformer-isolated), balanced, 600 Ohm, removable terminal block (3 pins)
  • Frequency Response: 50 - 14,000 Hz (when sampling frequency is 32 kHz)
  • Distortion: Under 0.3% (1 kHz, when sampling frequency is 32 kHz)
  • Control Input:
    • 8 channels, no-voltage make contact input, open voltage
      • 12 V DC, short-circuit current: 10 mA, removable terminal block (9 pins)
  • Control Output:
    • 8 channels, open collector output (polarized), with stand voltage
      • 30 V DC, control current: 50 mA max., removable terminal block (9 pins)
  • Network I/F: 10BASE-T/100BASE-TX, Auto-Negotiation
  • Serial I/F: RS-232C (DCE I/F), D-sub connector (9P,male), 9600bps - 115200bps
  • Network Protocol: TCP, UDP, ARP, ICMP, HTTP, RTP, IGMP
  • Audio Packet Transmission System:
    • Unicast (Up to 4 simultaneous transmissions)
    • Multicast (Up to 64 simultaneous transmissions)
  • Operating Temperature: 0° to +50° (0° to +40° when AC adapter is in use)
  • Operating Humidity: Under 90% RH (no dew condensation should be produced)
  • Finish: Steel plate, black, 30% gloss
  • Dimensions (WxHxD): 210 x 44.7 x 188 mm
  • Weight: 1.2 kg
  • Optional Components:
    • Rack mounting bracket: MB-15B-BK (for rack mounting one NX-100 unit)
    • MB-15B-J (for rack mounting two NX-100 units)
    • AC adapter: AD-246
