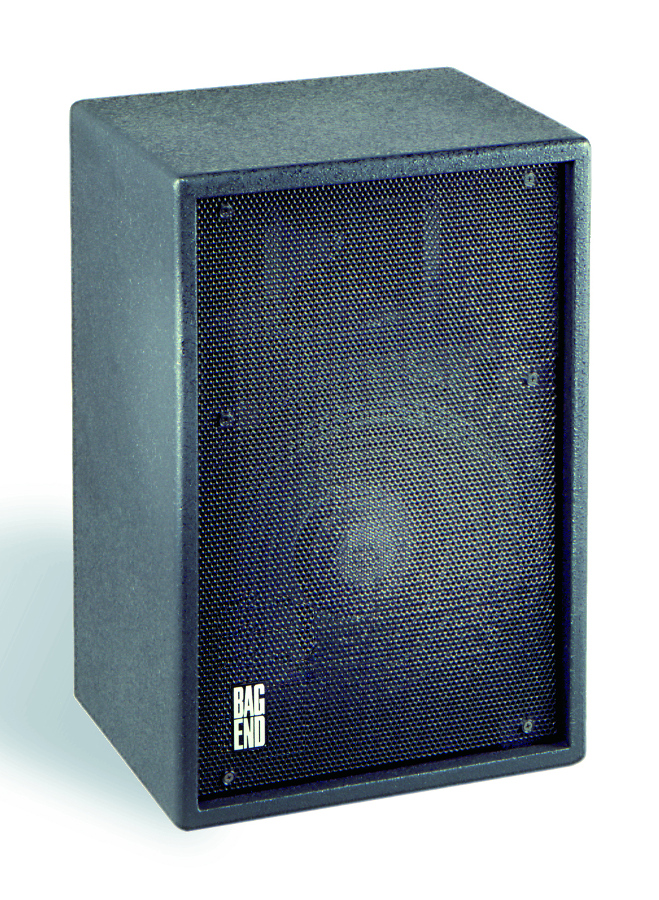

Bag End TA1202-IY
12” 2-Way Black Painted Installation Enclosure with Steel Yoke

OUR PART #:  TA1202-IY

The Bag End TA1202-I produces high definition high impact sound over its controlled coverage angle allowing precise effective audience coverage in a variety of venues.
Learn More
Our Price: $795.00
List Price: $935.00
You save 15%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Bag End TA1202-IY
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Bag End TA1202-I produces high definition high impact sound over its controlled coverage angle allowing precise effective audience coverage in a variety of venues. This point source loudspeaker, engineered for seamless short and mid throw performance is well known for exceptional fidelity and its surprisingly high output capability. It excels in speech projection and live performance PA systems as well as high level music playback systems.

Rotatable high frequency waveguide and universal fly points allow the TA1202-I to be easily installed and aimed in a multitude of applications. The rotatable 80 degree (h) by 60 degree (v) coverage pattern offers optimal coverage options for horizontal or vertical mounting.

The TA1202-I includes an internal passive Time-Align crossover and optimal venting provides a surprisingly powerful bass output. With its hi fidelity, convenient size and hi output its perfect for many stand alone applications. Adding Bag End subwoofers will expand its capabilities to include larger venues.

Constructed from 18mm Baltic Birch plywood the TA1202-I features a durable and attractive black Ro Tex finish, durable steel grille and multiple fly points.

Bag End TA1202-I Specifications:

  • System Type: 2-way vented 1.1 ft
  • Enclosure: 18 mm 13-ply birch plywood
  • Finish: Black Ro Tex™ True water born environmental finish
  • Grille: 16 Gauge black power coated perforated steel
  • Low Frequency Components: SE-1280 12” Transducer, 2.5” Voice coil, 80 oz. Magnet
  • High Frequency Components: E-700 1” Exit compression driver, 1.8” Titanium diaphragm, 15 oz. Magnet, Radial Waveguide
  • Input Connector: Cinch 142 screw terminal barrier strip
  • Hardware:
    • Forged steel eye bolts
    • Yoke model 3
    • Steel yoke U-bracket
  • Fly Points Safe Working Load: 200 lbs Upper most rigging points
  • Crossover Type: Passive Time-Align® equalizer type at 2.5 kHz
  • Time Offset Between Driver: < +/- 25 Microseconds
  • Sensitivity: 101 dB SPL (2.83 V @ 1m)
  • Frequency Response: 75 Hz to 20 kHz +/-3 dB
  • Low Frequency Limit: 65 Hz
  • Maximum Calculated Continuous Acoustic Output: 127 dBSPL @ 1m
  • Power Handling:
    • 300 W continuous (IEC)
    • 600 W program
  • Recommended Amplifier Power: 300 to 600 W at rated impedance
  • Rated Impedance: 8 Ohms
  • Coverage Pattern:
    • 80 degrees Horizontal (-6 dB)
    • 60 degrees Vertical (-6 dB)
    • Rotatable horn
  • Recommended High Pass Filter: 60 Hz
  • Polarity: A positive asymmetrical signal applied to the +  terminal will result in a positive asymmetrical  acoustical pressure
  • Dimensions (H x W x D): 21 x 14 x 11.5” (54 x 36 x 30 cm)
  • Weight: 42 lbs (19 kg)
