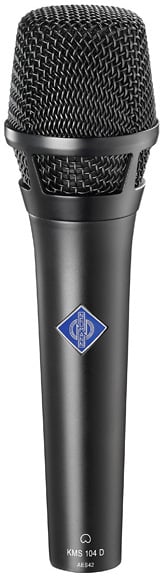

Neumann KMS 104 D [RESTOCK ITEM]
Digital Handheld Microphone with K 104 Cardioid Capsule, KMS Pouch, & SG 105 Stand Mount

OUR PART #:  KMS104-D-RST-01

Neumann's KMS 104 D is the transition of the well-established KMS 104 analog microphones into the digital domain.
Learn More
Selected Model Sale Price: $739.28
List Price: $999.95
Save up to 26%!
Write the first review.
Neumann KMS 104 D [RESTOCK ITEM]
Select a Model: (shipping times are approximate)

Related Products

Neumann's KMS 104 D is the transition of the well-established KMS 104 analog microphones into the digital domain.  Based on the AES42 standard, this microphone is an ideal choice for live and on-stage applications.

It provides all of the features of its analog counterpart.  Additionally, it offers the advantages of digital circuit technology, such as extended dynamic range, a more robust operation (EMC safe) and the avoidance of clipping as a result of the integrated peak limiter/compressor.

Use of one of the digital microphone interfaces together with the Remote Control Software (RCS) permits pre-programmed settings to be stored in the microphones.

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

Neumann KMS 104 D Digital Handheld Microphone Features:

  • Excellent transparency for vocals/speech
  • Cardioid/Supercardioid polar pattern with excellent feedback rejection
  • Without off-axis coloration
  • Effective pop shielding without any side effects
  • Satisfaction of recording the uncolored original, with no "bottlenecks" between the capsule and the recording system.
  • Guarantee of having one of the best A/D converters available.
  • Anti-clipping processing ensures handling safety, and reduces stress.
  • Reduced time requirements and personnel costs, particularly due to faster post production processing.
  • Lower investment costs, since separate A/D converters and preamps are no longer needed. This also means space and weight savings (e.g. in the OB van).

Neumann KMS 104 D Digital Handheld Microphone Specifications:

  • Acoustic transducer: Pressure gradient transducer
  • Directional characteristic: Cardioid
  • Frequency response: 60 Hz to 20 kHz
  • Free-field sensitivity at 1kHz: –47 dBFS
  • Equivalent noise level, CCIR*: 27 dB
  • Equivalent noise level, A-weighted*: 16 dB-A
  • Signal-to-noise ratio**, CCIR*: 67 dB
  • Signal-to-noise ratio**, A-weighted*: 78 dB
  • Maximum SPL at 0 dBFS: 141 dBSPL
  • Dynamic range, A-weighted (D-01 only): 125 dB
  • Preset:
    • Sampling rates: 48 kHz
    • Gain: 10 dB (variable withDMI-2)
    • Compressor on, Attack time 100 ms, Release time 0.5 s, Threshold–10 dBFS, Ratio 2:1
  • Supply voltage range: +6 V to +10.5 V
  • Current consumption: max. 150 mA
  • Weight: approx. 300 g, Diameter: 48 mm, Length: 180 mm
  • Interface: AES42
  • Remote controlled functions:
    • Polar pattern (D-01 only)
    • Low-cut: flat, 40, 80, 160 Hz
    • Pre-attenuation: 0 , -6, -12, -18 dB
    • Gain: 0...63 dB in 1 dB steps, clickless
    • Test signal: 1 kHz, pink noise, white noise
    • Parametric compressor/limiter (incl. de-esser function)
    • Independent peak limiter avoiding any clipping
    • Switch functions: soft muting, phase reverse, signal lights
    • Signal lights: red (D-01 only) and blue LEDs
    • System functions, firmware download
  • A/D conversion: Neumann process (patented), 28-bit internal word length
  • Digital signal processing: Fixed-point, variable internal word length 28 bits to 60 bits
  • Synchronization:
    • Asynchronous operation (free-running, AES42 - Mode1), basic frequency accuracy: ± 25 ppm
    • Synchronous operation (AES42 -Mode 2), pulling range: Min. ± 100ppm
  • Power supply (phantom power complying with AES42)
  • Output: XLR3M, 24 bits as per AES/EBU (AES3)

NOTE: All data with respekt to 0 dB pre-attenuation and 0 dB gain.
*according to IEC 60268-1; CCIR-weighting according to CCIR 468-3, quasi peak; A-weighting according to IEC 61672-1, RMS
**re 94 dBSPL
