Pathway Connectivity 9115 DMX Repeater Pro, Fully Isolated, 8-Way with Rear Terminals

OUR PART #: P9115

Copied to clipboard

The Pathway Connectivity model# P9115 is an intelligent "Repeater Pro" opto-splitter that brings Ethernet-type features to plain DMX networks. ...Read more

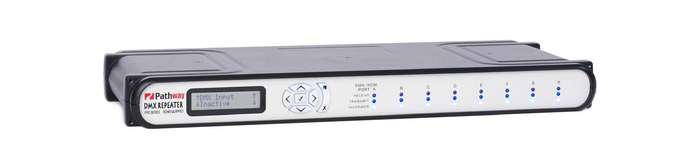

Pathway Connectivity 9115 DMX Repeater Pro, Fully Isolated, 8-Way With Rear Terminals Image 1
Pathway Connectivity 9115 DMX Repeater Pro, Fully Isolated, 8-Way With Rear Terminals Image 2
Pathway Connectivity 9115 DMX Repeater Pro, Fully Isolated, 8-Way With Rear Terminals
Our Price: $1,743.76
List Price: $1,850.00
You save 6%!
Synchrony Music & Sound Card
No Interest if paid in full within 6 Months
Learn How
Item usually available to ship in 14-17 Business Days. Please call for up-to-date information on product availability.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Pathway Connectivity model# P9115 is an intelligent "Repeater Pro" opto-splitter that brings Ethernet-type features to plain DMX networks. The Repeater Pro is an increasingly important part of DMX data distribution systems, and its support for RDM (Remote Device Management) allows it to act as an RDM Controller, as well as a bidirectional RDM splitter. In venues where a console is re-positioned frequently, onboard Hub Mode allows the Repeater Pro to sense which port is receiving DMX, then automatically route the signal to the remaining ports—eliminating the need for patch bays. The Repeater Pro also provides easy prioritization between two consoles, or HTP-merge two sources with one source able to roam—great for incorporating remote focus units.

Pathway Connectivity P9115 Includes:

  • P9115 Repeater Pro unit
  • Installation/Operations manual
  • Rackmount Ears

Pathway Connectivity P9115 Features:

  • Silent operation
  • 8 outputs
  • E1.20 RDM and E1.11 DMX512A compliant
  • Three modes: RDM, Merge, and Hub
  • RDM discovery and end device management from the front panel
  • RDM can be disabled on a port-by-port basis to accommodate older equipment
  • Merge two controllers without any additional gear
  • Automatically switch a console between locations by simply unplugging and replugging the console
  • Units running in different modes can be chained together
  • Fully configurable from the front display
  • DMX output speed and signal loss behavior are user-selectable, including hold forever
  • Monitor incoming DMX signal levels in real time
  • DMX Console sends a channel level to all ports, for an independent DMX signal check on end devices
  • Self-resetting over-voltage protection on all ports
  • Ships with rack ears

Pathway Connectivity P9115 Specifications:

  • General:
    • 85-250VAC 50/60 Hz wide-ranging power input
    • Operating Conditions:
      • Temperatures: 14° F to 122° F (-10° C to +50° C)
      • Humidity: 5-95% relative humidity, non-condensing
    • 0.75A power consumption
    • 2500V opto-isolation between all ports
    • 250V fault protection per port
  • Physical:
    • Dimensions: 17" x 6" x 1.7" (432 x 150 x 40mm)
    • Weight: 5.2 lbs (2.4 kg)
  • Standards Compliance:
    • USITT DMX512 –1990 ANSI E1.11 DMX512-A R2013
    • E1.20 RDM R2010—Remote Device Management
    • ETL
    • CE
    • RoHS 2002/95/EC
