Adaptive Technologies Group SAS-200-WM Steerables Indoor Wall Arm Speaker Mount, 200lb WLL

The Steerables® SAS-200-WM from Allen Products suspends and aims loudspeakers from walls and other vertical structures.

Loudspeaker cabinets equipped with rigging or mounting points can be suspended and aimed with unprecedented ease and precision. Pan and tilt adjustments can be made or remade within seconds.

Ideal applications include permanently installed loudspeakers in churches, schools, gymnasiums, auditoriums, theme parks, nightclubs, bars and restaurants.

The Steerables unique Cross-Arm steering mechanism provides up to 360° of pan control, while tilt control is achieved either through the addition of a standard Allen Products U-Series bracket or Steerables Tilt Cable Kit. (both sold separately)

This all structural steel alloy assembly is coated with a baked-on black textured powder coat finish. It comes in just two ready-to-mount sections and supports loads of up to 100 lbs with testing to over ten times its normal working load.

Allen Products SAS-200-WM Includes:

• (1) Wall Arm
• (1) Cross Arm
• (1) Hardware Kit

Allen Products SAS-200-WM Features

• Suspends flyable speakers from walls and other vertical surfaces
• Unique cross arm steering mechanism offers 360° of pan control
• Significant reductions in installation and planning time
• Accommodates standard Allen Products U-Series brackets and Steerables Tilt Cable Kits
• Minimal mounting surface area required

Allen Products SAS-200-WM Specifications

• Material: Structural steel alloy tube and plate
• Finish: Powder coat
• Color: Textured black
• Pan rotation: 360° horizontal swivel max.
• Working Load: 200 lbs
• Design factor: 7:1 ratio based on ultimate yield point
• Net Weight: 21.5 lbs
• Shipping Weight: 25 lbs

Note:

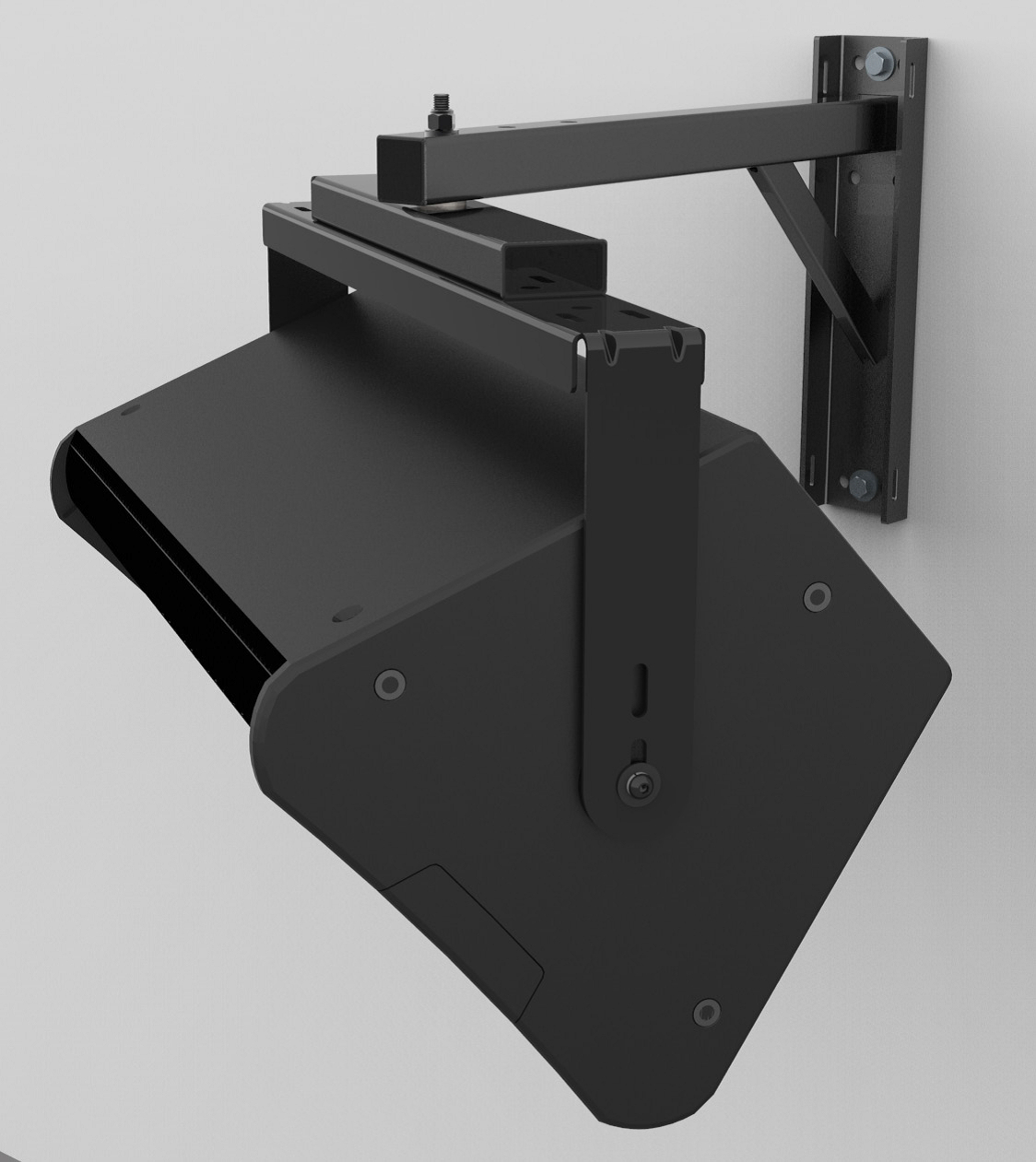

The image above is for illustrative purposes only. U-bracket and loudspeaker shown are sold separately
