Antelope Audio MP32
32-Channel Microphone Preamp

OUR PART #:  MP32

Our Price: $2,995.00
Write the first review.
Antelope Audio MP32
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

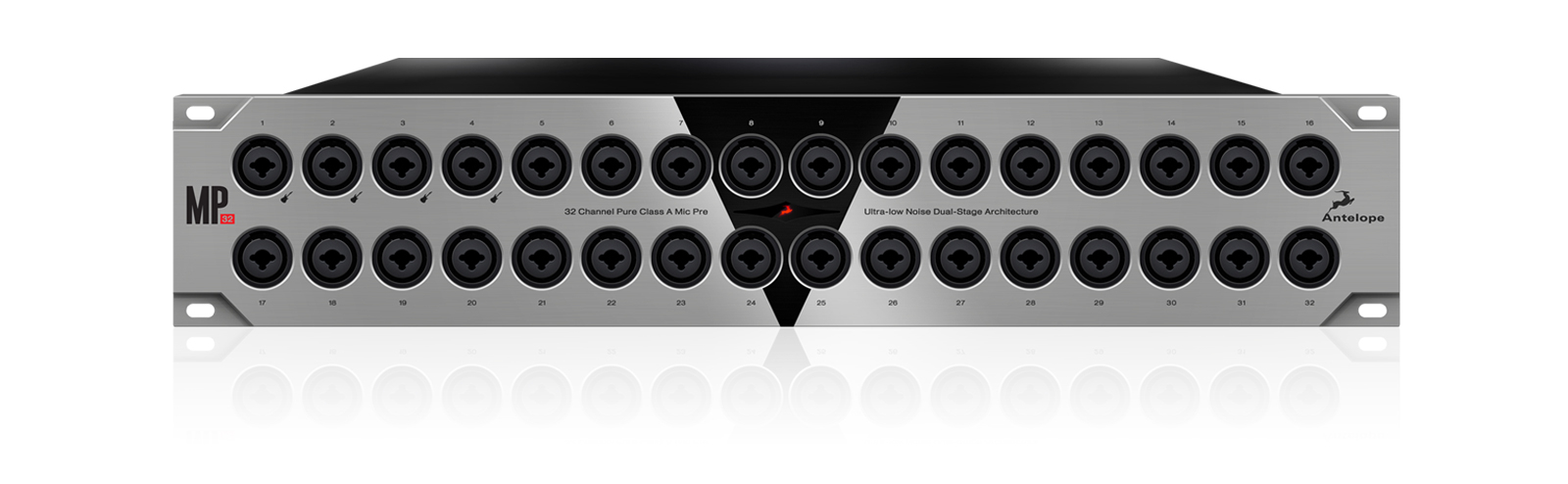

The Antelope Audio MP32 is a 32-channel console-grade microphone preamp with integrated software remote control and Antelope Audio’s exciting new approach to analog circuit design.

The rave reviews shared by several top audio engineers regarding the quality of the 12 mic preamps in Antelope Audio's portable audio interface Zen Studio urged them to expand further and create a 32-channel mic preamp housed in only two rack spaces.

Antelope designed MP32 to be a perfect match for their top-selling audio interface Orion32 or its ThunderboltTM successor Orion32+. This ensures a full transparency of the sound and complete integrity of the signal via the whole chain, from the mic pres through the conversion, recording and playback, all of them characterized by the signature Antelope sound.

The combination of the Orion32 and MP32 — totaling just 3U in rack space — make it a perfectly suited solution for studios and live recording where rack space can be a precious commodity.

Antelope Audio MP32 Features:

  • 32 mic pres:
    • MP32 features 32 Class-A mic preamps
    • Hi-Z, line, mic compatible
  • Digital remote control: Control the MP32’s input types, gain levels, routing and presets via a user-friendly app
  • 32-channel outs: 32-channel outputs handled by four D-Sub 25 connectors
  • Phantom power: Independently assignable phantom power
  • Full speed: USB Full Speed interface for software control panel
  • Full control: Intuitive Control Panel for Windows and OS X

Antelope Audio MP32 Specifications:

  • Analog Inputs:
    • 32 channels Mic / Line on XLR Combos on the front panel;
    • 1-4 of 32 channels are (HiZ) – Instrument selectable XLR Combos on the front
  • XLR Combos Analog:
    • Mic (XLR only): 20dBu max balanced @ 2Kohm
    • Line (1/4 only): 29dBu max balanced @ 13K (to gnd)
    • Hi-z (1/4 only): 20dBu max unbalanced @ 1,1Mohm
  • Analog Outputs: 32 x Lines on 4 x D-SUB 25 (32 channels), 26 dBu max balanced @50 Ohms
  • USB I/O:
    • USB 2.0 Full-Speed Type B
    • For use with the software control panel
  • Dimensions (Approx)(WxHxD): 19”/Rack x 3.5”/2U x 8.3”(482 x 88 x 210 mm)
  • Mic Preamp Gain:
    • Mic Pre: 5 to13dB in one 8dB step, 13 to 68dB in 1dB steps
    • Line: -9 to 20dB in 1 dB steps
    • Hi-z 4 to 40dB in 1 dB steps
    • THD + N: 110.5 dB
    • EIN: -129dBu
  • Operating Temperature: 32°-122°F (0°-50°C)
  • Weight: 13lb (6kg) approx.
  • Power Supply: AC Universal Input 95-264V, 50 or 60Hz
  • Power Consumption: 44 Watts Max
