Antelope Audio MP8D 8 Channel Preamp Interface Instant Rebate
Our Price: $1995.00
Instant Rebate: $199.00
Your Price: $1796.00... read more

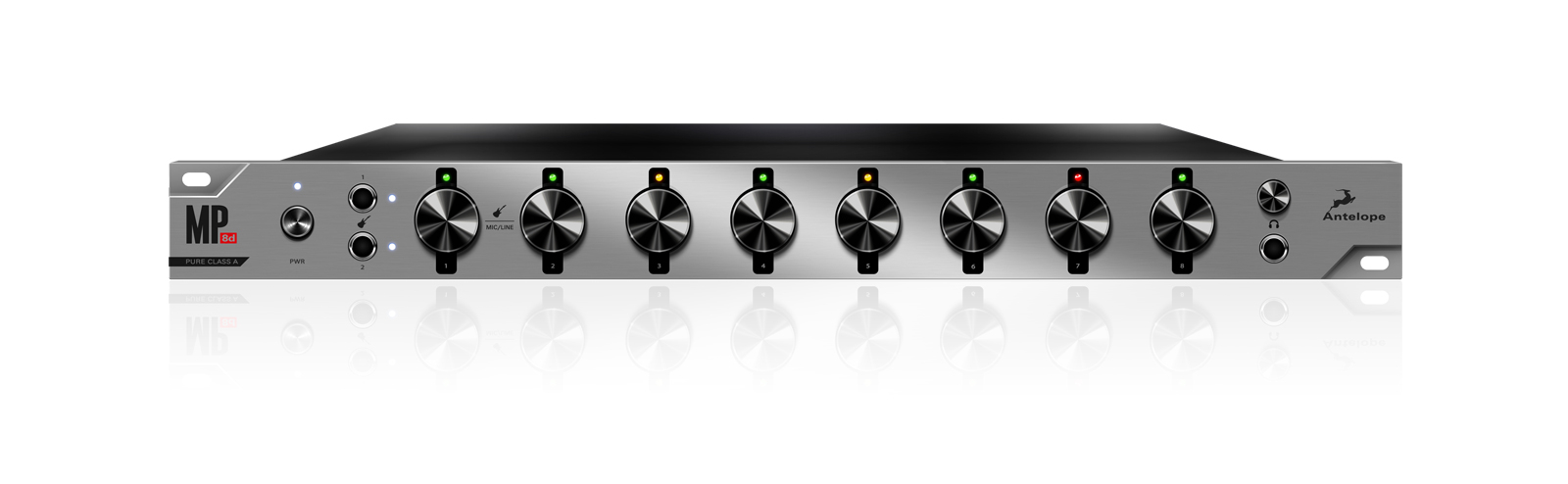

Antelope Audio MP8D
8-channel Mic Preamp and A/D

OUR PART #:  MP8D

The Antelope Audio MP8d is an eight-channel class-A microphone preamplifier, which boasts Antelope Audio’s integrated world-class A/D conversion.
Learn More
Sale Price: $1,796.00
List Price: $1,995.00
You save 10%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Antelope Audio MP8D
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Antelope Audio MP8d is an eight-channel class-A microphone preamplifier, which boasts Antelope Audio’s integrated world-class A/D conversion. Antelope’s converters are widely regarded for their naturally warm, yet sonically accurate sound signature.

This classically rich, yet modernly precise sound is accomplished thanks to Antelope’s Acoustically Focused Clocking jitter management algorithm and Oven-Controlled crystal oscillator, along with advanced analog and digital circuit board design, powered by a proprietary power supply.

Antelope Audio MP8d Features:

  • 8 class-A mic pres: 8 Hi-Z, Line and Mic compatible preamps with individual phantom power
  • 64-bit acoustically focused clocking: A/D enhanced by Antelope’s world-renowned jitter management algorithm
  • Digital connectivity: MP8d features all digital I/O you need – MADI, ADAT, AES/EBU, S/PDIF, TOSLINK
  • Powerful DSP: Massive parallel DSP for fast routing, low-latency mixing and real-time FX
  • 8 channels: DB25 connector for 8-channel direct microphone output
  • Supreme clocking: Oven-Controlled Oscillator, 2 Word Clock outs, 1 Word Clock in and 1 Atomic Clock in

Antelope Audio MP8d Specifications:

  • Analog Inputs:
    • 8 x Mic / Line on XLR combos on the rear panel
    • 2 x Hi-Z (instrument) inputs on TRS on the front panel (Mic inputs 1,2)
  • Analog Inserts: 2 x Inserts on TRS (inputs 1,2)
  • Analog Outputs:
    • 8 x Lines on DB25 (8 channels)
    • 1 x Stereo Headphone outs on TRS (2 channels)
  • Digital Inputs: 1 x MADI (up to 64CH)
  • Digital Outputs:
    • 1 x MADI (up to 64CH)
    • 2 x ADAT (up to 16CH)
    • 1 x S/PDIF
    • 1 x TOSLINK
    • 1 x AES/EBU on DB9 (breaks down to 4 x XLR connectors, cable not included)
  • Clocking System:
    • 4th Generation Acoustically Focused Clocking
    • 64-bit DDS
    • Oven Controlled Crystal Oscillator
  • USB I/O: 2.0 Hi-Speed, Type B, only for control
  • Atomic Clock: 1 x 10M Input @ 75 Ohms 1Vpp on BNC
  • Word Clock:
    • 1 x Input @ 75 Ohms 3Vpp on BNC 32-192 kHz
    • 2 x Output @ 75 Ohms 3Vpp on BNC 32-192 kHz
  • A/D Converter:
    • Dynamic Range: 120 dB
    • THD+N: -110 dB
  • Clocking Stability: <+/-0.02ppm, oven controlled at 64.5ºC/148.1ºF
  • Clock Aging: < 1ppm per year
  • Clock Calibration: <+/-0.001ppm
  • Atomic Clock: 10 MHz
  • Sample Rates: 32, 44.1, 48, 88.2, 96, 176.4, 192 kHz
  • Operating Temperature: 32°-122°F (0°-50°C)
  • Weight: 7.28 lb (3.3 kg) approx.
  • Dimensions (Approx)(WxHxD): 19" x 1.75" x 9.1" (483 x 44 x 230mm)
  • Power Supply:
    • AC Universal input
    • ~95-245 V, 20 Watts Max
  • Power Consumption: 20 Watts Max

Antelope Audio MP8D 8 Channel Preamp Interface Instant Rebate

Our Price: $1995.00
Instant Rebate: $199.00

Your Price: $1796.00

Through November 30th, when you purchase your MP8D Interface from Full Compass you will Instantly Save $199!

The price shown on the MP8D product page reflects the instant rebate. For information on this or any Antelope gear please contact your Sales Pro at 608-356-5844.

Antelope Audio MP8D 8 Channel Preamp Interface Instant Rebate
Offer good between 11/07/2017 and 11/30/2017 Learn More About The MP8D!
