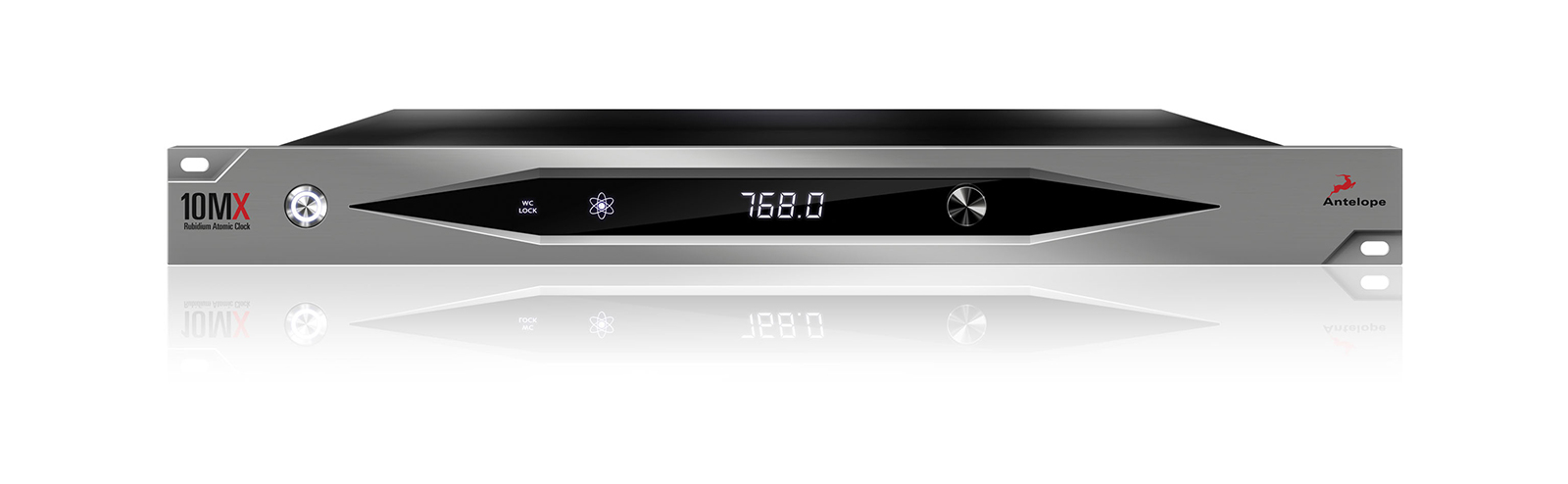

Antelope Audio 10MX
Rubidium Atomic Clock

OUR PART #:  10MX

The Antelope Audio 10MX is the newest and the premier member of the Isochrone family. It features technologies from two of Antelope’s legendary products.
Learn More

Call for price! Not available online.
List Price: $6,495.00

Similar Products

The Antelope Audio 10MX is the newest and the premier member of the Isochrone family. It features technologies from two of Antelope’s legendary products. The atomic precision of the 10M and the sophisticated jitter-management algorithm of Trinity are combined in a futuristic, 1U rack space enclosure, providing the world’s most stable and musical clocking.

10MX is a fusion of proven technologies and contemporary industrial design, where no compromises are allowed and both build-quality, and performance-excellence are top priority. The new Rubidium Atomic Clock is an epiphany of more than 20 years’ expertise in the digital audio world, making vividly real the clarity, depth, width and 3-dimensionality distinctive of the analog sound.

Antelope Audio 10MX Features:

  • The master clock beast: 4 Word Clock outputs allowing up to 768 kHz
  • 64-bit acoustically focused clocking: Flawless clocking powered by Antelope Audio’s world-renowned jitter management algorithm
  • Multiple atomic outputs: The 10MX’s multiple atomic outputs allow up to 10 devices to be simultaneously clocked
  • Additional outputs: 2 x S/PDIF and 2 x AES/EBU master clocking outputs up to 192 kHz
  • Maximum control: Intuitive Software Control Panel
  • PC/MAC connection: PC/Mac connection via USB, allowing remote control and firmware upgrades

Antelope Audio 10MX Specifications:

  • Phase Noise (SSB):\
    • 1Hz =-70 dBc/Hz
    • 10Hz =-87 dBc/Hz
    • 100Hz =-114 dBc/Hz
    • 1kHz =-130 dBc/Hz
    • 10kHz =-140 dBc/Hz
  • Short-Term Stability:
    • t=1s =3E-11
    • t=10s =1.6E-11
    • t=100s =8E-12
  • Warm-Up Time: 8 – 10 minutes (depends on ambient temperature)
  • Word Clock Input: 1 x Word Clock Input @ 75 Ohms 3Vpp on BNC 44.1 – 384kHz
  • Maximum shock withstanding:
    • Non-operating, flight case mounted: 100m/s2 (~10.2 g*), 11 msec half-sine pulse per IEC 60068-2-27:2008
    • Non-operating, in original packing: 300m/s2 (~30.6 g*), 5 msec half-sine pulse per IEC 60068-2-27:2008
    • * g – gravitational acceleration
  • Outputs:
    • Word Clock: 4 x BNC
    • AES/EBU: 2 x XLR
    • S/PDIF: 2 x RCA
  • Word Clock Outputs: 4 x Word Clock Outputs @ 75 Ohms 3Vpp on BNC 44.1 – 768 kHz square wave signal
  • USB I/O: USB 2.0 Hi-Speed; Data stream up to 480Mbits/384kHz, Type B
  • Clocking System:
    • 4th Generation Acoustically Focused Clocking
    • 64-bit DDS
    • Oven Controlled Crystal Oscillator\
  • Clock Stability: <+/-0.0 2 PPM, oven controlled at 64.5 °C
  • Atomic Reference Type: Rubidium Ultra-Stable Resonance-Controlled Master Oscillator
  • Frequency: 10 MHz
  • Frequency Accuracy: Better than ±5E-11 @25C (±0.05 PPB)
  • Aging:
    • Daily* ±2.5E-11
    • Monthly* ±1E-10
    • Yearly ±1E-9
    • (*After 1 day & 1 month of operation respectively)
  • Atomic Clock Outputs: 10 x BNC Sinusoidal, 10MHz, 75 Ohm, 1Vpp typical (unload)
  • Sample Rates (kHz): 32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384, 768
  • Word Clock Specs: TTL Level, 75 Ohm Output Impedance
  • USB: USB 2.0 Full-Speed, Type B, only for control
  • Operating Temperature: 32°-122°F (0°-50°C)
  • Weight: 6.17 lb (2.8 kg)
  • Dimensions (WxDxH): 19" x 9" x 1.73" (482.6 ? 228 ? 44 mm)
  • Power Supply: AC
  • Power Consumption: 15 W
  • Humidity: 30 – 80% RH non-condensing
  • Power Supply Input: 100 – 240 V~
