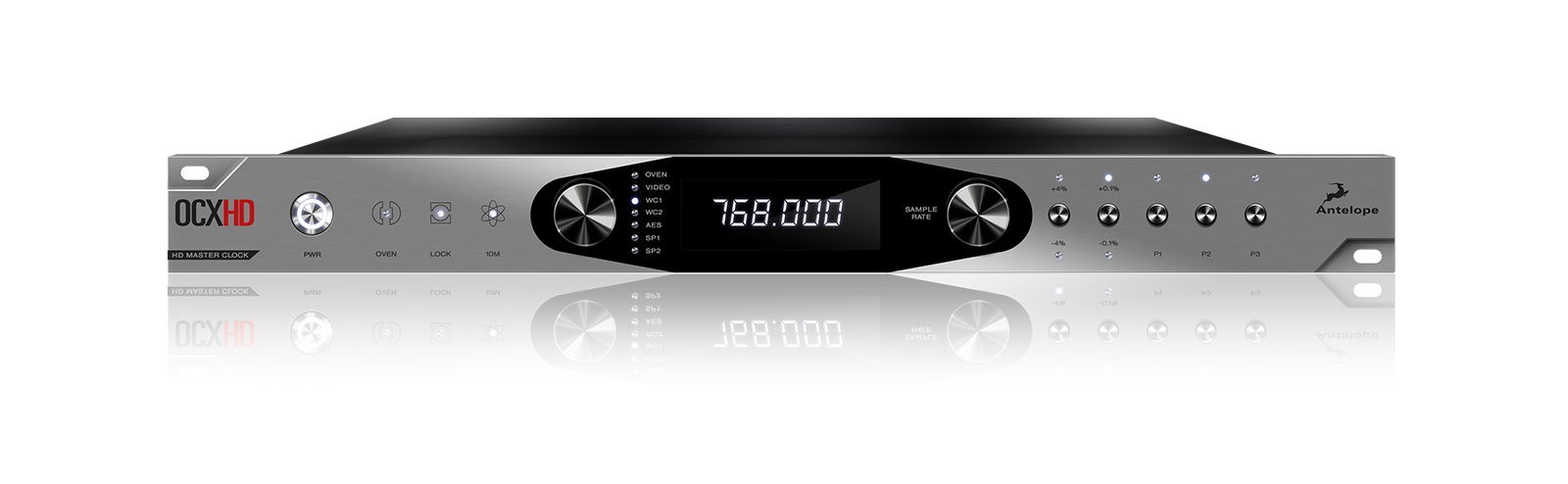

Antelope Audio OCXHD
768 kHz HD Master Clock

OUR PART #:  OCXHD

The Antelope Audio's OCXHD 768 kHz HD Master Clock is the perfect solution for mastering, recording and project studios, film-scoring, post-production, and live sound.
Learn More
Our Price: $1,495.00
Write the first review.
Antelope Audio OCXHD
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Antelope Audio's OCXHD 768 kHz HD Master Clock is the perfect solution for mastering, recording and project studios, film-scoring, post-production, and live sound.

OCX HD raises the bar yet again, delivering sample rate support of up to 768 kHz, Antelope’s best-in-class 4th generation Acoustically Focused Clocking (AFC) jitter management algorithm and oven-controlled crystal oscillator.

OCX HD Master Clock offers a great variety of clocking options – 10 configurable in pairs Word Clock Outputs on BNC, four AES/EBU Outputs and two more on S/PDIF. This vast assortment of connectivity makes the OCX HD the most versatile audio master clock on the market, while proven, proprietary clocking technology delivers the most musical and reliable audio sync generation on the market.

Antelope Audio OCXHD Features:

  • 64-bit acoustically focused clocking: Antelope Audiogame-changing 4th gen ACF jitter management algorithm
  • 768 kHz clocking: OCX HD can output five differentsample rates
  • Greater connectivity: AES/EBU, S/PDIF clocking outs up to 192kHz, video inon BNC and Atomic clock Input

Antelope Audio OCXHD Specifications:

  • Sample Rates Generated: 32, 44.1, 48, 88.2, 96, 176.4,192, 352.8, 384, 705.6, 768kHz
  • Master Clock Outputs:
    • 10x Word Clock Outputs up to 768kHz
    • 4x AES/EBU Outputs up to 192kHz
    • 2x S/PDIF Outputs up to 192kHz
  • Inputs:
    • 2x Word Clock Inputs up to 768kHz
    • 1x Video Input accepting wide range of SD and HD video signals
    • 1x Atomic Input
    • 2x S/PDIF Inputs up to 192kHz
    • 1x AES/EBU Input up to 192kHz
    • 1x USB Input for control
  • Atomic Clock Input: 1 x 10M Atomic Clock Input @ 75Ohms 3Vpp on BNC 44.1 – 384kHz
  • Humidity: 30 – 80% RH non-condensing
  • Clocking System:
    • 4th Generation Acoustically Focused Clocking
    • 64-bit DDS
    • Oven Controlled Crystal Oscillator
  • Clock Calibration: < +/-0.001 ppm
  • Clock Stability: <+/- 0.02 ppm, oven controlled at64.5 C/148.1 F
  • Clock Aging: < 1 ppm per year
  • Atomic Clock Input: 1 x 10M Atomic Clock Input @ 75Ohms 3Vpp on BNC
  • Sample Rates (kHz): 32, 44.1, 48, 88.2, 96, 176.4,192, 352.8, 384
  • Operating Temperature: 32°-122°F (0° – 50°C)
  • Weight: 5.84 lb (2.65 kg)
  • Dimensions (WxDxH): 19" x 9.05" x 1.75" (482.6 ? 230 ?44 mm)
  • Power Supply: AC Universal Input ~95-245V, 20 Watts Max
