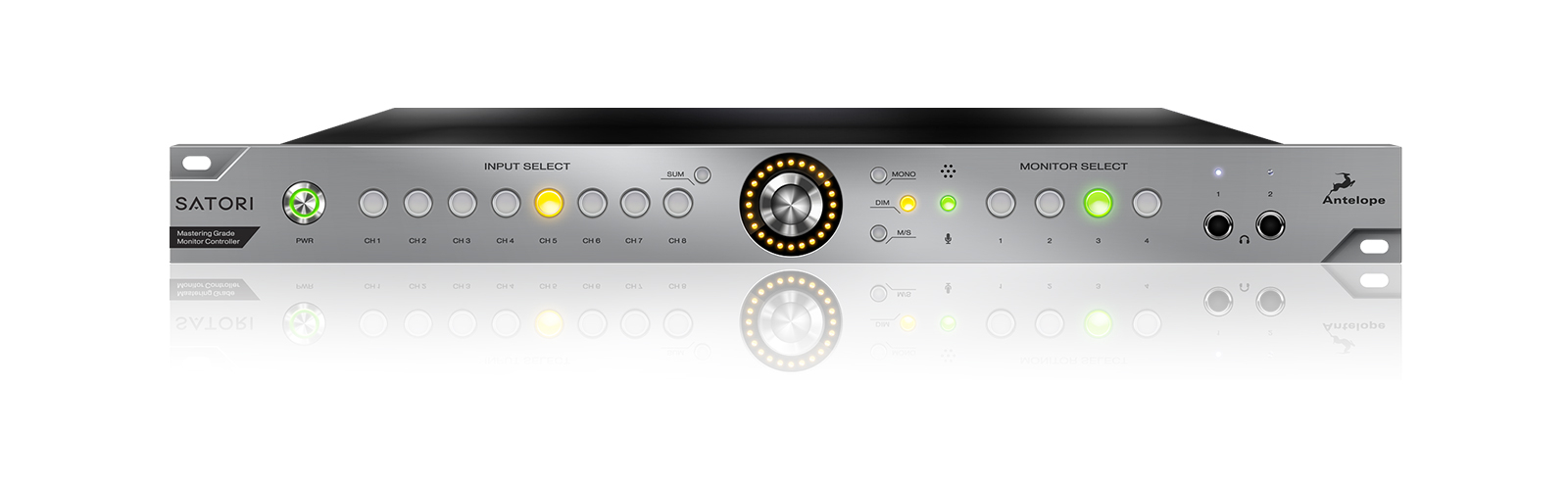

Antelope Audio Satori
High-End Monitoring Controller

OUR PART #:  SATORI

The Antelope Audio Satori includes a fully analog 8-channel summing mixer.
Learn More
Our Price: $1,745.00
Write the first review.
Antelope Audio Satori
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The Antelope Audio Satori includes a fully analog 8-channel summing mixer. Analog summing allows engineers who work completely “in-the-box” to mix signals in the analog domain for a more natural blending of instruments. The summing mixer inside Satori maintains punch, headroom and excellent dynamics, while offering the analog sound usually found only from legendary analog consoles.

Antelope Audio Satori Features:

  • Analog Summing: 8-channel analog mixer reaching the sound of legendary mixing consoles
  • Independent Monitoring: Multiple personalized mixes for musicians and engineers
  • Innovative Attenuator Design: An innovative technology retaining the excellent sonic performance of relay attenuators
  • Analog Circuitry: Mastering-grade quality via optimized PCB layout & power supply technology
  • Exended Connecivity: 8 stereo ins, 4 stereo outs, XLR, 1/4” TRS, D-Sub and subwoofer output in 1U
  • Extended Remote Control: User-friendly desktop software plus iOS and Android mobile apps

Antelope Audio SATORI Specifications:

  • Analog Inputs:
    • 4 x Stereo Pair Line Level Inputs. Ch1 on XLR & Ch2-4 on TRS
    • 4 x Stereo Line Level Inputs on D-Sub 25
    • 1 x Talkback Mic Preamp on TRS
  • Analog Outputs:
    • 4 x Stereo Line Level Outputs on D-Sub 25
    • 4 x Stereo Pair Monitor Outputs, Mon1 on XLR and Mon2-4 on TRS
    • 1 x Line Level Stereo Sum Output on TRS
    • 1 x LFE Output on TRS
    • 4 x Headphone Outputs (two on the rear and two on the front) on TRS
  • USB I/O:
    • USB 2.0 Hi-Speed, Type B
    • For use with the software control panel
  • Dynamic Range: 132dB
  • THD + N: 127dB
  • Operating temperature: 32°-122°F (0°-50°C)
  • Weight: 4.4lb approx. (~2kg)
  • Dimensions (WxHxD): 19” x 1.75” x 8.66” (483 x 44 x 220 mm)
  • Power Supply: AC Universal input ~95-245 V
  • Power Consumption: 25 Watts Max.
