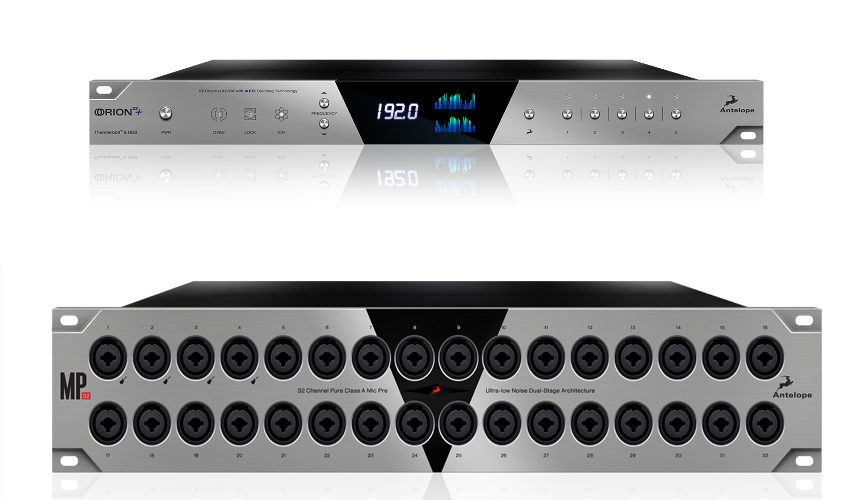

Antelope Audio ORION32+/MP32
32 Channel Microphone Preamp and AD/DA with Thunderbolt and USB Interfaces

OUR PART #:

NOTE: This is a Full Compass Exclusive Bundle the Includes the Antelope Audio Orion32+ and MP32 .
Learn More

Sorry this product is currently out of stock.
Please contact a Sales Pro at 800-356-5844 for alternate options.

Similar Products

NOTE: This is a Full Compass Exclusive Bundle the Includes the Antelope Audio Orion32+ and MP32 .

The ORION32+ by Antelope Audio offers stunning flexibility and great productivity, providing a color-coded routing matrix with four separate mixers, built-in DSP effects and zero latency monitoring. The entire control is gathered in a desktop application available for both OS X and Windows.

The control panel is based on the software created initially for Orion32 and further developed for another Antelope Audio leading product, Zen Studio. Orion32+ control panel is an extremely intuitive user-friendly interface, which incorporates both our know-how and customers’ feedback.

The Antelope Audio MP32 is a 32-channel console-grade microphone preamp with integrated software remote control and Antelope Audio’s exciting new approach to analog circuit design.

Antelope designed MP32 to be a perfect match for their top-selling audio interface Orion32 or its Thunderbolt™ successor Orion32+. This ensures a full transparency of the sound and complete integrity of the signal via the whole chain, from the mic pres through the conversion, recording and playback, all of them characterized by the signature Antelope sound.

The combination of the Orion32 and MP32 — totaling just 3U in rack space — make it a perfectly suited solution for studios and live recording where rack space can be a precious commodity.

Antelope Audio ORION32+ Features:

  • 64 Channels I/O: Simultaneous streaming of 64 I/Ochannels 24-bit, 192 kHz audio via Thunderbolt™ & 32 channels via USB
  • Powerful FPGA: Custom FPGA for flawless real-timeeffects processing & integrated AFX
  • 64-BIT Acoustically Focused Clocking: AD/DA poweredby our world-renowned jitter management algorithm
  • Extended Connectivity: Thunderbolt, MADI, USB, ADAT,S/PDIF, 8x DB25
  • Supreme Clocking: Oven Controlled Oscillator, 2 WCOuts, WC In, Atomic Clock In
  • Software Contol: Routing, mixing, real-time effects processing via OS X& Windows compatible app

Antelope Audio MP32 Features:

  • 32 mic pres:
    • MP32 features 32 Class-A mic preamps
    • Hi-Z, line, mic compatible
  • Digital remote control: Control the MP32’s inputtypes, gain levels, routing and presets via a user-friendly app
  • 32-channel outs: 32-channel outputs handled by fourD-Sub 25 connectors
  • Phantom power: Independently assignable phantom power
  • Full speed: USB Full Speed interface for softwarecontrol panel
  • Full control: Intuitive Control Panel for Windows and OS X

Antelope Audio ORION32+ Specifications:

  • Analog Inputs: 4 x D-SUB 25 (32 channels total), +20dBu max, 11.2 kOhms
  • Digital Inputs:
    • 1 x Fiber Optic MADI (up to 64CH)
    • 2 x ADAT (up to 16CH)
    • 1 x S/PDIF
  • Word Clock Input: 1 x Input @ 75 Ohms 3Vpp on BNC 32– 192kHz
  • Atomic Clock Input: 1 x 10M Input @ 75 Ohms 1Vpp on BNC

Antelope Audio MP32 Specifications:

  • Analog Inputs:
    • 32 channels Mic / Line on XLR Combos on the front panel;
    • 1-4 of 32 channels are (HiZ) – Instrument selectable XLR Combos on the front;
  • XLR Combos Analog:
  • Mic (XLR only): 20dBu max balanced @ 2Kohm
  • Line (1/4 only): 29dBu max balanced @ 13K (to gnd)
  • Hi-z (1/4 only): 20dBu max unbalanced @ 1,1Mohm
  • Analog Outputs: 32 x Lines on 4 x D-SUB 25 (32 channels), 26 dBu maxbalanced @50 Ohms
