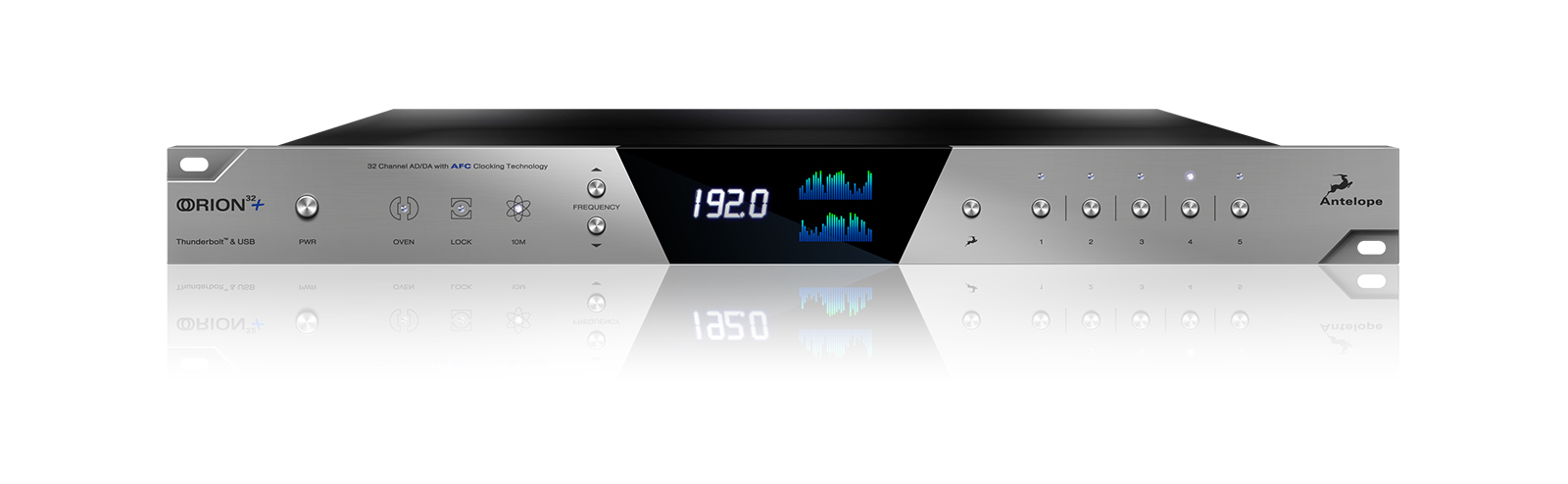

Antelope Audio Orion32+
32-channel AD/DA with Thunderbolt and USB Interfaces

OUR PART #:  ORION32+

The Orion32+ by Antelope Audio offers stunning flexibility and great productivity, providing a color-coded routing matrix with four separate mixers...
Learn More
Antelope Audio ORION32+ 1
Antelope Audio ORION32+ 2
Antelope Audio ORION32+ 3
Antelope Audio ORION32+ 4

Click a thumbnail to see more images. (7 total)

Our Price: $2,995.00
Write the first review.
Antelope Audio Orion32+
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The Orion32+ by Antelope Audio offers stunning flexibility and great productivity, providing a color-coded routing matrix with four separate mixers, built-in DSP effects and zero latency monitoring. The entire control is gathered in a desktop application available for both OS X and Windows.

The control panel is based on the software created initially for Orion32 and further developed for another Antelope Audio leading product, Zen Studio. Orion32+ control panel is an extremely intuitive user-friendly interface, which incorporates both our know-how and customers’ feedback.

The Orion32+ provides seamless connectivity to any DAW, allowing for low latency simultaneous I/O streaming of 64 channels of 24-bit, 192 kHz audio signal via Thunderbolt™ and 32 channels via USB. The analog I/O are handled by 8 DB25 connectors and a pair of TRS connectors for monitoring.

Orion32+ is a successor to the world’s first 32-channel AD/DA, now offering a greater variety of interfaces such as Thunderbolt, MADI and USB. The digital connectivity options are complimented also by ADAT and S/PDIF.

FPGA REAL-TIME VINTAGE AFX

Orion32+ includes the full Antelope Audio arsenal of hardware-based FPGA FX for a variety of authentic zero latency Vintage EQs, Compressors and Guitar Amp & Cabinet Models. Use them for real time tracking or mixing, then easily save preset setups to be recalled at your convenience.

Included Antelope Vintage FX Models:

  • EQUALIZER LEGENDS: VEQ-STU 089, VEQ-STU 169, VEQ-STU 900, VEQ HA32C,BAE1023, BAE 1084, NEU-W492, NEU-W495, VEQ-4K Black, VEQ-4k Brown, VEQ-4KPink, VEQ-4K Orange, BAE-1073, VEQ-HLF, VEQ – 1A, VMEQ-5, LANG PEQ2, VEQ-55A,UK-69, NEU-PEV, INTEGRATED EQ
  • VINTAGE COMPRESSORS: X160, Tube176, X903, Gyratec X, Grove Hill Liverpool,ANTELOPE FEEDFORWARD COMPRESSOR, FET-A76
  • AURAVERB™: New Reverb Leveraging Unique Algorithms and Proprietary FPGAChip for “Smooth and Clear” Sound
  • THE GUITAR CLASSICS:
    • Cabinets: Darkface 65 2x12, Top30 2x12, Green 2x12, Vintage 4x12, Green 4x12, Caliper50 1x10, Clst 1x12, England4x12, Modern 4x12, Bluelux 1x12.
    • Guitar Amps: Darkface 65 US, Top32 UK, Modern US, Plexi 59 UK, Rock 22.10 UK, Rock 75 UK, Marcus II US, Tweed, Deluxe US, Overange 120 UK, BurnSphere DE.
      Mics: California121 Ribbon, Austria Gold 414, American 57, German FET87.

Antelope Audio Orion32+ Features:

  • 64 Channels I/O: Simultaneous streaming of 64 I/O channels 24-bit, 192 kHz audio via Thunderbolt™ & 32 channels via USB
  • Powerful FPGA: Custom FPGA for flawless real-time effects processing & integrated AFX
  • 64-BIT Acoustically Focused Clocking: AD/DA powered by world-renowned jitter management algorithm
  • Extended Connectivity: Thunderbolt, MADI, USB, ADAT,S/PDIF, 8x DB25
  • Supreme Clocking: Oven Controlled Oscillator, 2 WCOuts, WC In, Atomic Clock In
  • Software Contol: Routing, mixing, real-time effects processing via OS X & Windows compatible app

Antelope Audio Orion32+ Specifications:

  • Analog Inputs: 4 x D-SUB 25 (32 channels total), +20dBu max, 11.2 kOhms
  • Digital Inputs:
    • 1 x Fiber Optic MADI (up to 64CH)
    • 2 x ADAT (up to 16CH)
    • 1 x S/PDIF
  • Word Clock Input: 1 x Input @ 75 Ohms 3Vpp on BNC 32 –192kHz
  • Atomic Clock Input: 1 x 10M Input @ 75 Ohms 1Vpp onBNC
  • Analog Outputs:
    • 4 x D-SUB 25 (32 channels total), +20dBu, 56 Ohms
    • 2 x Monitor Outs on TRS 1/4 Jacks
  • Digital Outputs:
    • 1 x Fiber Optic MADI (up to 64CH)
    • 2 x ADAT (up to 16CH)
    • 1 x S/PDIF
  • Word Clock Outputs: 2 x Outputs @ 75 Ohms 3Vpp on BNC32 – 192kHz
  • USB I/O: USB 2.0 Hi-Speed; Data stream up to 480Mbits/192kHz, 32 channels I/O, Type B
  • Thunderbolt™: 1 x Thunderbolt™ (64 channels I/O)
  • D/A Monitor Converter:
    • Dynamic Range: 129 dB
    • THD + N: -108 dB
  • A/D Converter:
    • Dynamic Range: 118 dB
    • THD + N: -105 dB
  • D/A Converters:
    • Dynamic Range: 118 dB
    • THD + N: -98 dB
  • Clocking System:
    • 4th Generation Acoustically Focused Clocking
    • 64-bit DDS
    • Oven Controlled Crystal Oscillator
  • Clock Stability: <+/-0.02 ppm, oven controlled at148.1ºF (64.5ºC)
  • Clock Aging: < 1 ppm per year
  • Clock Calibration: < +/-0.001 ppm
  • Sample Rates (kHz): 32, 44.1, 48, 88.2, 96, 176.4, 192
  • Operating Temperature: 32°-122°F (0°-50°C)
  • Weight: 6.6 lbs (3kg) approx.
  • Dimensions (Approx)(WxHxD): 19” x 1.75” x 8.66” (483 x44 x 220 mm)
  • Power Supply: AC Universal input ~95-245 V
  • Power Consumption: 20 Watts Max
