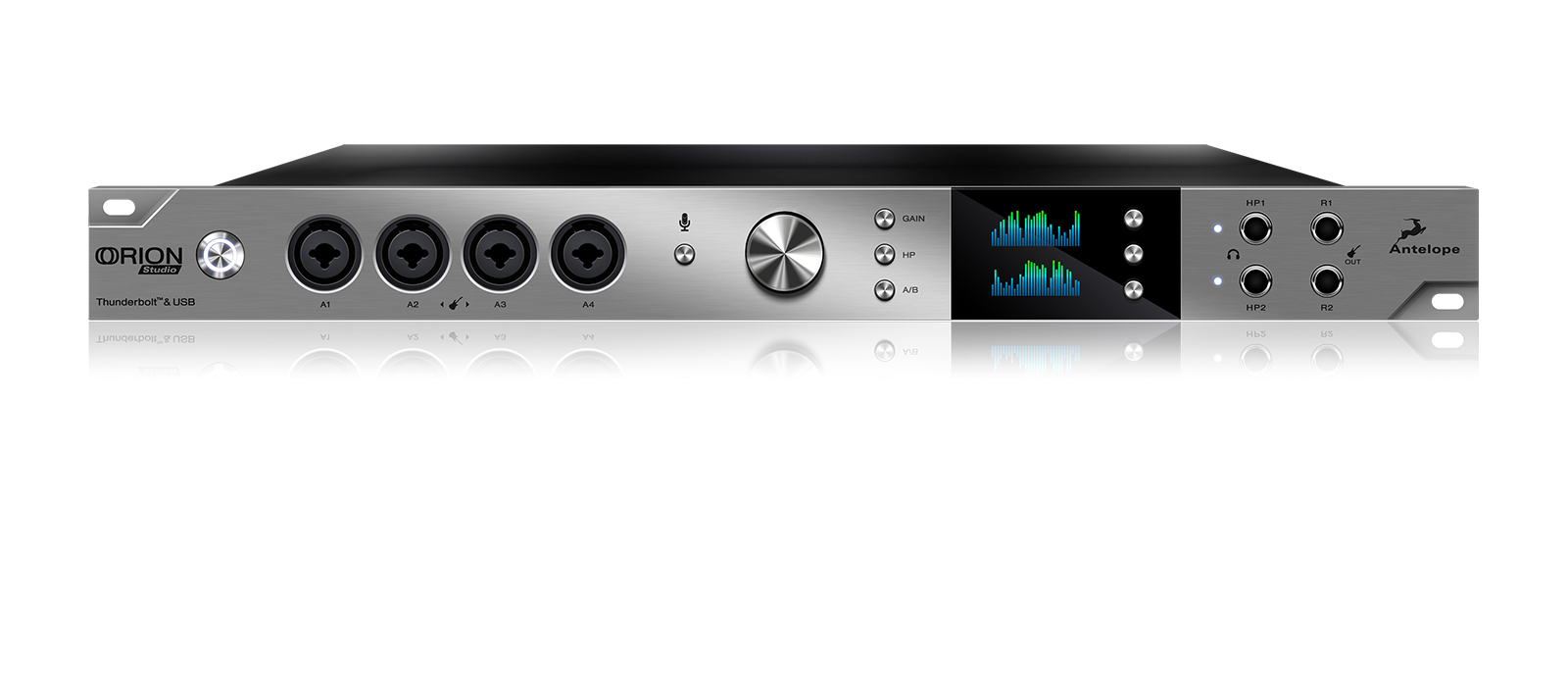

Antelope Audio Orion Studio
Thunderbolt / USB Audio Interface with 12 Microphone Preamps


The Orion Studio is without a doubt a star in Antelope Audio’s new line of Thunderbolt™ & USB audio interfaces.
Learn More
Antelope Audio ORION-STUDIO 1
Antelope Audio ORION-STUDIO 2
Antelope Audio ORION-STUDIO 3
Antelope Audio ORION-STUDIO 4
Our Price: $2,095.00
Write the first review.
Antelope Audio Orion Studio
In Stock

Related Products

The Orion Studio is without a doubt a star in Antelope Audio’s new line of Thunderbolt™ & USB audio interfaces. Its 12 Class-A Mic Pres make it the one and only piece of gear you’ll need to record a full band and do it like a pro. Just like Zen Tour and Goliath, Orion Studio features our FPGA powered, hardware-based vintage FX, making it the top choice for professional guitarists on the quest for crafting the perfect tone. This best-selling interface also includes Antelope’s traditionally stunning AD/DA conversion, powered by our very own, world-renowned 64-bit Acoustically Focused Clocking (AFC) technology for jitter management.

Orion Studio’s secret weapon is the extremely powerful Field-Programmable Gate Array (FPGA) device. Its massive parallel processing capabilities are far ahead of DSP chips used in similar devices. Through smart algorithms, oversampling and custom-tweaked models, the FPGA provides the lowest latency possible, allowing you to create up to four independent, zero latency mixes. Those can be easily assigned to any output including the two separate headphone outs.


Orion Studio includes the full Antelope Audio arsenal of hardware-based FPGA FX for a variety of authentic zero latency Vintage EQs, Compressors and Guitar Amp & Cabinet Models. Use them for real time tracking or mixing, then easily save preset setups to be recalled at your convenience.

Included Antelope Vintage FX Models:

  • EQUALIZER LEGENDS: VEQ-STU 089, VEQ-STU 169, VEQ-STU 900, VEQ HA32C, BAE1023, BAE 1084, NEU-W492, NEU-W495, VEQ-4K Black, VEQ-4k Brown, VEQ-4KPink, VEQ-4K Orange, BAE-1073, VEQ-HLF, VEQ – 1A, VMEQ-5, LANG PEQ2, VEQ-55A,UK-69, NEU-PEV, INTEGRATED EQ
  • VINTAGE COMPRESSORS: X160, Tube176, X903, Gyratec X, Grove Hill Liverpool, ANTELOPE FEEDFORWARD COMPRESSOR, FET-A76
  • AURAVERB™: New Reverb Leveraging Unique Algorithms and Proprietary FPGA Chip for “Smooth and Clear” Sound
    • Cabinets: Darkface 65 2x12, Top30 2x12, Green 2x12, Vintage 4x12, Green 4x12, Caliper50 1x10, Clst 1x12, England4x12, Modern 4x12, Bluelux 1x12.
    • Guitar Amps: Darkface 65 US, Top32 UK, Modern US, Plexi 59 UK, Rock 22.10 UK, Rock 75 UK, Marcus II US, Tweed, Deluxe US, Overange 120 UK, BurnSphere DE.
      Mics: California121 Ribbon, Austria Gold 414, American57, German FET87.

Antelope Audio Orion Studio Features:

  • 12 Class-A Mic Pres: Hi-Z, mic & line compatible preamps with phantom power
  • 64-Bit Acoustically Focused Clocking: AD/DA enhanced by our world-renowned jitter management algorithm
  • Vintage Guitar FX: Hardware-based, FPGA powered effects for guitar amp modeling
  • Stunning AD/DA: 24-bit, 192 kHz audio and Antelope’s signature flawless conversion
  • Thunderbolt™ & USB: 32 channels via Thunderbolt™ and 24 on USB for zero-latency audio streaming
  • Advanced Control: Control Orion Studio via user-friendly desktop and mobile apps

Antelope Audio Orion Studio Specifications:

  • Analog Inputs:
    • 4 x Mic / Line Instrument on XLR combos on the front
    • 8 x Mic / Line on XLR combos on the rear
  • Analog Inserts: 2 x Inserts on TRS (inputs 1,2)
  • Digital Inputs:
    • 2 x ADAT (up to 16 depending on the sample rate)
    • 1 x S/PDIF
  • Analog Outputs:
    • 16 x Lines on 2 x DB25 (16 channels Line Out)
    • 2 x Stereo Monitor out on TRS (4 channels, only 1 active pair at a time)
    • 2 x Stereo Headphone outs on TRS (4 channels)
    • 2 x ReAmp outs on TRS (2 channels)
  • Digital Outputs:
    • 2 x ADAT
    • 1 x S/PDIF
    • USB 2.0 Hi-Speed; Data stream up to 480 Mbits/192kHz
    • 24 channels I/O, Type B
  • Word Clock Input: 1 x Input @ 75 Ohms 3Vpp on BNC 32– 192kHz
  • Word Clock Outputs: 1 x Outputs @ 75 Ohms 3Vpp on BNC32 – 192kHz
  • Thunderbolt: 1 x Thunderbolt, 32 channels
  • D/A Monitor Converter:
    • Dynamic Range: 129 dB
    • THD + N: -108 dB
  • D/A Converter:
    • Dynamic Range: 120 dB
    • THD + N: -107dB
  • A/D Converter:
    • Dynamic Range: 120 dB
    • THD + N: -110 dB
  • Clocking System:
    • 4th Generation Acoustically Focused Clocking
    • 64-bit DDS
    • Oven Controlled Crystal Oscillator
  • Clocking Stability: <+/-0.02 ppm, oven controlled at 148.1ÂşF (64.5ÂşC)
  • Clock Aging: < 1 ppm per year
  • Clock Calibration: <+/-0.001 ppm
  • Sample Rates: 32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)
  • Mic Pre:
    • Gain: 0,10 – 65 dB
    • THD + N: -108 dB
