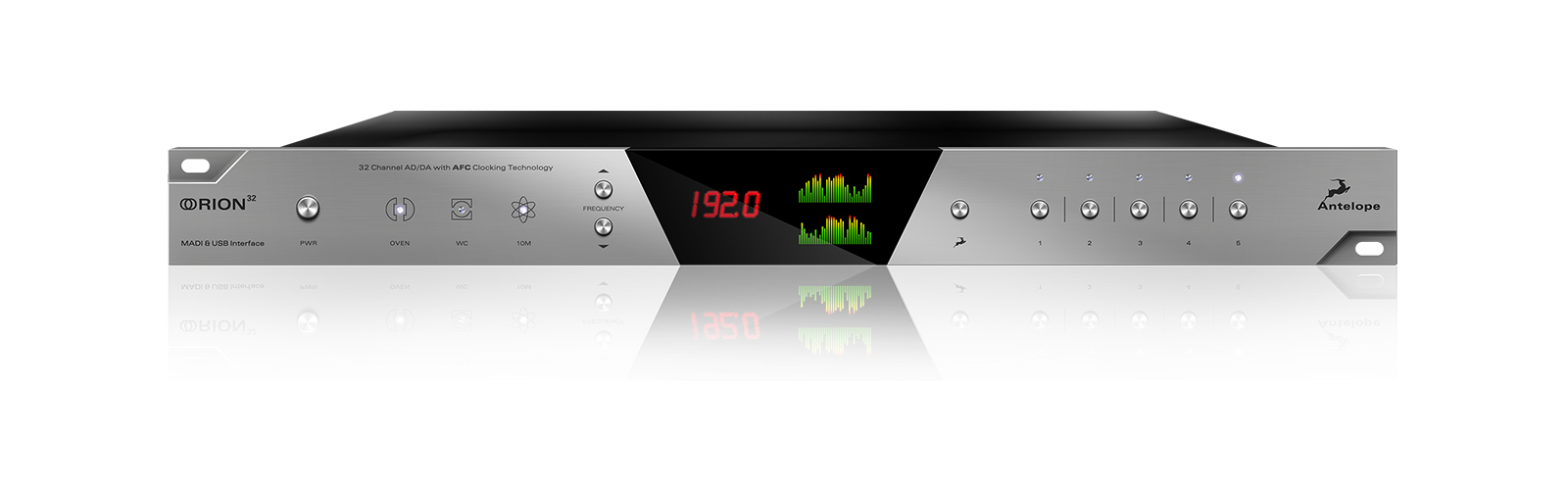

Antelope Audio Orion32
Multi-Channel AD/DA Converter

OUR PART #:  ORION32

The Antelope Audio Orion 32 is a 32-channel A/D & D/A converter and audio master clock, supporting both MADI and USB interfaces...
Learn More
Our Price: $2,270.00
Write the first review.
Antelope Audio Orion32
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!
Related Products

The Antelope Audio Orion 32 is a 32-channel A/D & D/A converter and audio master clock, supporting both MADI and USB interfaces, clocked by Antelope’s renowned 64-bit Acoustically Focused Clocking (AFC) technology.

Orion32 allows 192 kHz I/O streaming of 32-channel digital audio via USB, providing seamless connectivity to any USB-enabled DAW, computer or iPad. The converter also provides 32 channels of 96 kHz audio through its Fiber Optic MADI I/O connections, which can be used to connect with any suitably equipped MADI device.

Orion32 also supports ADAT protocol by offering 16 I/O channels, for even greater compatibility with a large number of audio devices. The multi-channel converter inputs and outputs pass the analog signal through 8 D-SUB 25 I/O connectors.

FPGA REAL-TIME VINTAGE AFX

Orion32 includes the full Antelope Audio arsenal of hardware-based FPGA FX for a variety of authentic zero latency Vintage EQs, Compressors and Guitar Amp & Cabinet Models. Use them for real time tracking or mixing, then easily save preset setups to be recalled at your convenience.

Included Antelope Vintage FX Models:

  • EQUALIZER LEGENDS: VEQ-STU 089, VEQ-STU 169, VEQ-STU 900, VEQ HA32C, BAE1023, BAE 1084, NEU-W492, NEU-W495, VEQ-4K Black, VEQ-4k Brown,VEQ-4K Pink, VEQ-4K Orange, BAE-1073, VEQ-HLF, VEQ – 1A, VMEQ-5, LANGPEQ2,VEQ-55A,UK-69, NEU-PEV, INTEGRATED EQ
  • VINTAGE COMPRESSORS: X160, Tube176, X903, Gyratec X, Grove Hill Liverpool, ANTELOPE FEEDFORWARD COMPRESSOR, FET-A76
  • AURAVERB™: New Reverb Leveraging Unique Algorithms and Proprietary FPGA Chip for “Smooth and Clear” Sound
  • THE GUITAR CLASSICS:
    • Cabinets: Darkface 65 2x12, Top30 2x12, Green 2x12, Vintage 4x12, Green 4x12, Caliper 50 1x10, Clst 1x12, England 4x12, Modern 4x12, Bluelux 1x12.
    • Guitar Amps: Darkface 65 US, Top32 UK, Modern US, Plexi 59 UK, Rock 22.10 UK, Rock 75 UK, Marcus II US, Tweed, Deluxe US, Overange 120 UK, BurnSphere DE.
      Mics: California121 Ribbon, Austria Gold 414, American 57, German FET87.

Antelope Audio Orion32 Features:

  • 32 channels vis USB or MADI: Low latency simultaneous I/O streaming of 32 channels, 24-bit/192 kHz audio
  • Software control: Routing, mixing and managing presets via a user-friendly desktop application
  • Extended connectivity: 16 I/O channels on ADAT, analog via 8 D-SUB 25 I/O connectors
  • Supreme clocking: Oven Controlled Oscillator, 4 WCOuts, WC & Atomic Clock Ins
  • Authentic AD/DA AD/DA: Powered by our world-renowned 64-bit AFC jitter management algorithm
  • 1U rack size: Orion32 fits in 1U, its 20 Watts power consumption allows very low heating levels

Antelope Audio Orion32 Specifications:

  • Analog Inputs: 4 x D-SUB 25 (32 channels total), +20dBu max, 11.2 kOhms
  • Digital Inputs:
    • 1x Fiber Optic MADI (up to 64CH)
    • 2 x ADAT (up to 16CH)
    • 1x S/PDIF
  • Analog Outputs: 4 x D-SUB 25 (32 channels total), +20dBu, 56 Ohms
  • Digital Outputs:
    • 1 x Fiber Optic MADI (up to 64CH)
    • 2 x ADAT (up to 16CH)
    • 1 x S/PDIF
  • Word Clock Input: 1 x Input @ 75 Ohms 3Vpp on BNC 32 –192kHz
  • Word Clock Outputs: 4 x Outputs @ 75 Ohms 3Vpp on BNC32 – 192kHz square wave signal
  • Atomic Clock Input: 10MHz
  • USB I/O: USB 2.0 Hi-Speed; Data stream up to 480Mbits/192kHz, 32 channels I/O, Type B
  • D/A Converter:
    • Dynamic Range: 118dB
    • THD + N: -98 dB
  • A/D Converter:
    • Dynamic Range 118dB
    • THD + N -105dB
  • Clocking System:
    • 4th Generation Acoustically Focused Clocking
    • 64-bit DDS
    • Oven Controlled Crystal Oscillator
  • Clocking Stability: <+/-0.02 ppm, oven controlled at 148.1°F (64.5°C)
  • Clock Aging: < 1 ppm per year
  • Clock Calibration: <+/-0.001 ppm
  • Sample Rates: 32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)
  • Operating temperature: -32° – 122°F (0° – 50°C)
  • Weight: 6.6 lb (3 kg) approx.
  • Dimensions (WxHxD): 19” x 1.75” x 8.66” (483 x 44 x 220 mm)
  • Power supply: AC Universal input 95-245VAC 20 Watts Max Consumption
