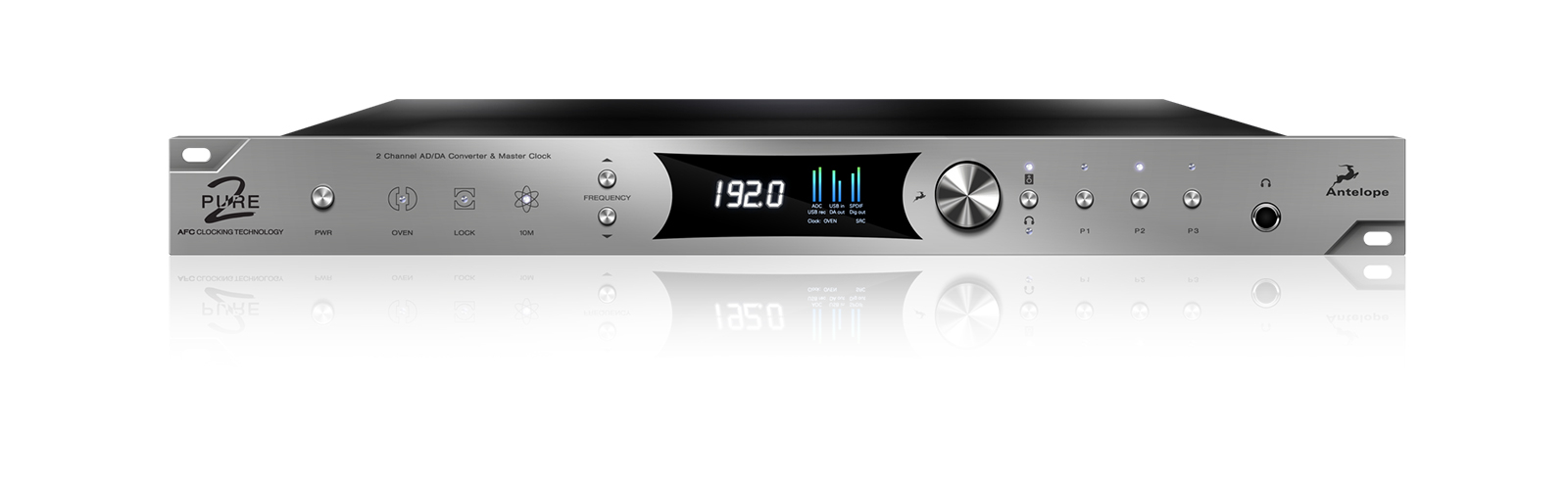

Antelope Audio PURE-2
Mastering AD/DA Converter & Clock

OUR PART #:  PURE-2

The Antelope Audio Pure2 is a mastering-grade 24-bit, 192 kHz AD/DA 2-channel converter and master clock that includes a relay-controlled volume attenuator.
Learn More
Our Price: $2,295.00
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Antelope Audio PURE-2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The Antelope Audio Pure2 is a mastering-grade 24-bit, 192 kHz AD/DA 2-channel converter and master clock that includes a relay-controlled volume attenuator. It features Antelope Audio’s world-renowned Acoustically Focused Clocking (AFC) technology, and also utilizes pristine analog circuitry, driven by a proprietary multi-stage linear power supply for unsurpassed digital clarity and analog realism.

Antelope Audio Pure2 Features:

  • A/D Conversion: Improved overload handling for smoother clipping and analog warmth, handled by PCM4222
  • Hight-end D/A: Dedicated D/A converter for greater convenience, allows monitoring a secondary source
  • D/A Conversion: Dual DAC architecture for enhanced stereo imaging and signal-to-noise ratio
  • Transparent Analog Monitoring: A -1dB stepped relay attenuator with 0.05dB precision and full bypass option
  • 64-Bit Master Clocking: Sharp conversion timing via 4th gen AFC jitter management technology
  • Software Control: Super intuitive OS X & Windows compatible softwarepanel

Antelope Audio Pure2 Specifications:

  • Analog Inputs: 2 x Combo Balanced Analog (XLR / 1/4 TRS) factory calibrated to +20dBu
  • Digital Inputs:
    • 1 x AES/EBU on XLR (32kHz to 192kHz) @ 110 Ohms terminated
    • 1 x S/PDIF on RCA (32kHz to 192kHz) @ 75 Ohms terminated
    • 1 x TOSLINK on optical fiber: up to 96kHz
  • Word Clock Input: 1 x Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz
  • Analog Outputs:
    • 1 x Stereo pair of Balanced XLR Outputs from D/A Converter (Main Output) is factory calibrated to 20dBu and user adjustable from 8dBu to 26dBu
    • 1 x Stereo pair Balanced Outputs for monitors (2 x 1/4 TRS)
    • 1 x 1/4 TRS Front Headphones 20dBu
  • Digital Outputs:
    • 1 x AES/EBU on XLR (32kHz to 192kHz) @ 110 Ohms terminated
    • 1 x S/PDIF on RCA (32kHz to 192kHz) @ 75 Ohms terminated
    • 1 x TOSLINK on optical fiber: up to 96kHz
  • Word Clock Outputs: 8 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz
  • USB I/O:
    • USB 2.0 Hi-Speed; Data stream up to 480Mbits/192kHz, 4 channels I/O playback/record, Type B
  • External Reference Clock:
    • 1 x 10M Atomic Clock Input @ 75 Ohms 1Vpp on BNC
    • 1 x Word Clock Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz
  • A/D Converter:
    • Dynamic Range: 122dB
    • THD+N: -105dB
  • D/A Converters:
    • Main DAC Dynamic Range 127dB; THD+N -107dB
    • Monitor DAC Dynamic Range 120dB; THD+N -103dB
    • Headphones DAC Dynamic Range 120dB; THD+N -100dB
  • Clock Specifications: <+/-0.02 PPM, oven controlled at 64.5°C/ 148.1°F
  • Clock Aging: < 1 ppm per year
  • Clock Calibration: < +/-0.001 ppm
  • Atomic Clock Input: 10MHz @ 1Vpp, BNC
  • Sample Rates (kHz): 32, 44.1, 48, 88.2, 96, 176.4, 192
  • Operating Temperature: 32°-122°F (0°-50°C)
  • Weight: 6.6 lb (3 kg) approx.
  • Dimensions (Approx)(WxHxD): 19” x 1.75” x 8.66” (483 x 44 x 220mm)
  • Power Supply: ~110VAC 60Hz/ ~220VAC 50Hz selectable
  • Atomic Clock Input: 1 x 10M Input @ 75 Ohms 1Vpp on BNC
  • Fuses: 2 x 0.8A 250VAC 5mm x 20mm Type T (or Time delay)
