Product Overview

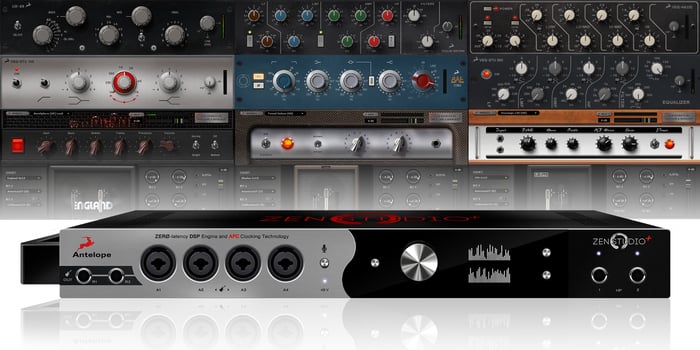

Antelope Audio Zen Studio+ comes with a growing arsenal of vintage FPGA-based effects, including accurately modeled EQs, compressors, guitar amps and cabinets. The key to the Zen Studio+ modeling engine is its custom FPGA chip. This proprietary technology makes the interface much faster and more powerful than competing devices.

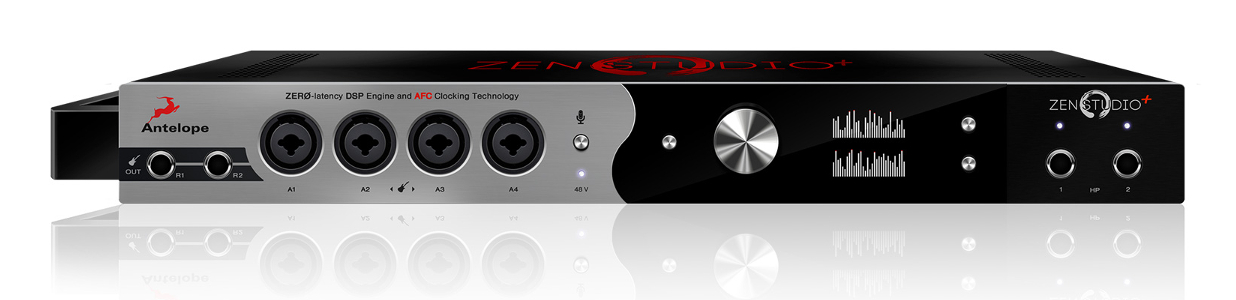

Zen Studio+ is the successor to Antelope’s first of a kind professional portable interface Zen Studio. It’s extensive analog and digital connectivity, 12 world-class mic preamps and Antelope’s signature clocking are now accompanied by an evolving library of hardware-based vintage effects. With both Thunderbolt™ and USB connectivity, Zen Studio+ is the most versatile high-end mobile recording system and capable of turning any location into a professional recording studio.
Zen Studio+ includes the full Antelope Audio arsenal of hardware-based FPGA FX for a variety of authentic zero latency Vintage EQs, Compressors and Guitar Amp & Cabinet Models. Use them for real time tracking or mixing, then easily save preset setups to be recalled at your convenience.
Included Antelope Vintage FX Models:
- EQUALIZER LEGENDS: VEQ-STU 089, VEQ-STU 169, VEQ-STU 900, VEQ HA32C,BAE1023, BAE 1084, NEU-W492, NEU-W495, VEQ-4K Black, VEQ-4k Brown, VEQ-4K Pink,VEQ-4K Orange, BAE-1073, VEQ-HLF, VEQ – 1A, VMEQ-5, LANG PEQ2, VEQ-55A,UK-69, NEU-PEV, INTEGRATED EQ
- VINTAGE COMPRESSORS: X160, Tube176, X903, Gyratec X, Grove Hill Liverpool, ANTELOPE FEEDFORWARD COMPRESSOR, FET-A76
- AURAVERB™: New Reverb Leveraging Unique Algorithms and Proprietary FPGA Chip for “Smooth and Clear” Sound
- THE GUITAR CLASSICS:
- Cabinets: Darkface 65 2x12, Top30 2x12, Green 2x12, Vintage 4x12, Green 4x12, Caliper50 1x10, Clst 1x12, England4x12, Modern 4x12, Bluelux 1x12.
- Guitar Amps: Darkface 65 US, Top32 UK, Modern US, Plexi 59 UK, Rock 22.10 UK, Rock 75 UK, Marcus II US, Tweed, Deluxe US, Overange 120 UK, BurnSphere DE.
Antelope Audio Zen Studio+ Includes:
- Zen Studio+ Portable Audio interface
- Quick Start Guide
- Warranty Card
- 1 USB Cable
- 1 DC Power Adapter
Antelope Audio Zen Studio+ Features:
- 12 STUDIO GRADE MIC PREAMPS: 12 Class-A Mic preamps, Hi-Z, Mic & Line ins with phantom power
- SUPREME CLOCKING: 64-BIT AFC Technology built-in, Word Clock Out, Word Clock and Atomic Input
- POWERFUL FPGA: Custom FPGA for powering multiple monitor mixers and real-time effects processing
- INTEGRATED TALKBACK: Front Panel Controllable Talkback with IOS/Android App implementation
- EXTENDED CONNECTIVITY: 20 Analog Inputs, 2 Monitor Outs, 8 Line Outs on DB25, ADAT, S/PDIF, 2 Re-Amp Outs, 2 HP Outs
- SOFTWARE CONTROL: Routing, mixing, real-time effects processing via OS X & Windows compatible app
Antelope Audio Zen Studio+ Specifications:
- Analog Inputs
- 1 × DB25 (8 channels)
- 4 × Mic / Line / Hi-Z on XLR combos on the front
- 8 × Mic / Line on XLR combos on the rear
- Analog Inserts
- 2 × Inserts on 1/4" TRS (dedicated for inputs 1, 2)
- Analog Outputs
- 1 × DB25 (8 channels)
- 1 × Stereo pair of Monitor outs on 1/4?” TRS
- 2 × Stereo Headphone outs on 1/4” TRS (4 channels)
- 2 × ReAmp outs on 1/4” TRS
- D/A Monitor Converter
- Dynamic Range: 118dB
- THD + N: -98dB
- A/D Converter
- Dynamic Range: 118 dB
- THD + N: -105 dB
- D/A Converters
- Dynamic Range: 118 dB
- THD + N: -98 dB
- Mic Preamp
- Gain: 0,10 – 65 dB
- THD + N: -108 dB
- Digital Inputs
- 2 × ADAT (up to 16 channels)
- 1 × S/PDIF
- Digital Outputs
- 2 × ADAT (up to 16 channels)
- 1 × S/PDIF
- USB I/O
- USB 2.0 Hi-Spee; Data stream up to 480 Mbits/192kHz, 24 channels I/O, Type B
- Thunderbolt™ I/O
- 1 x Thunderbolt™, 32 channels I/O
- Operating Temperature: 32°-122°F (0°-50°C)
- Weight (approx): 4.4 lb (2kg)
- Dimensions (WxHxD): 16.5” x 1.8” x 5.7" (418 x 45 x 145mm)
- Electrical specs:
- DC Universal input: 18V
- Power Consumption: 25 Watts Max
