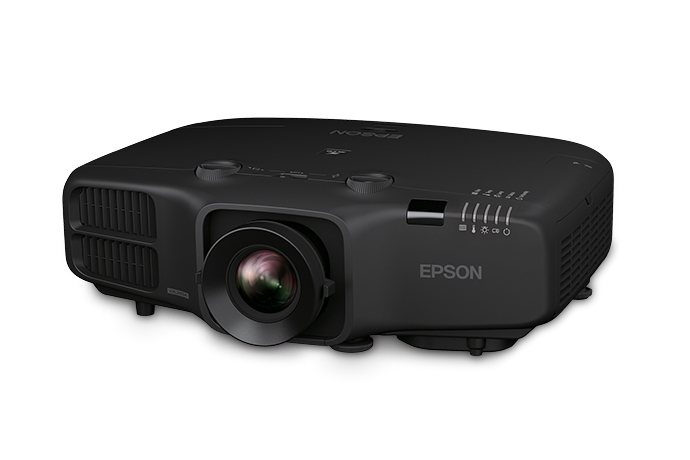

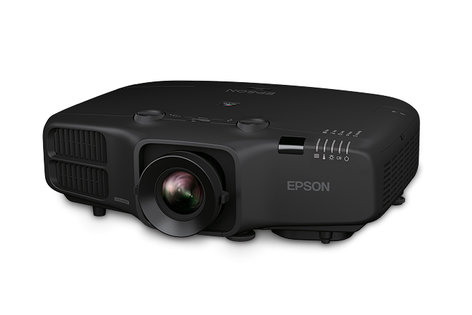

Epson PowerLite 5535U
5500 Lumens WUXGA 3LCD Projector

OUR PART #:  POWERLITE-5535U

The PowerLite 5535U Full HD installation projector from Epson is optimized for large venues, comes in  a black casing...
Learn More
Our Price: $2,502.53
List Price: $2,599.00

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Epson PowerLite 5535U
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The PowerLite 5535U Full HD installation projector from Epson is optimized for large venues, comes in  a black casing, and delivers uncompromising image quality as well as professional-grade reliability. It offers 3x Higher Color Brightness* than competitive models to ensure bright, vivid images. With 5,500 lumens of color brightness and 5,500 lumens of white brightness¹, plus WUXGA resolution with 1080p support, the PowerLite 5535U shines bright, even in well-lit situations. Horizontal and vertical lens shift adds installation flexibility, while HDBaseT™ connectivity gives easy integration. Miracast® enables wireless screen mirroring for Android™ devices and 1080p video streaming. The projector also supports enterprise-level wireless security and remote network monitoring/control.

Epson PowerLite 5535U Includes:

  • PowerLite 5535U projector
  • Power cable
  • Computer cable (VGA)
  • Projector remote control with batteries
  • User manual CD
  • EasyMP® software CD
  • Quick Setup Sheet
  • Registration card and lens lock screw

Epson PowerLite 5535U Features:

  • Higher Color Brightness* and reliable performance — 3LCD, 3-chip technology
  • Look for two numbers —
    • The PowerLite 5535U has:
      • 5,500 lumens Color Brightness for accurate, vivid color¹
      • 5,500 lumens White Brightness for well-lit rooms¹
  • Crisp, detailed widescreen images up to 300" — WUXGA resolution (1920 x 1200) with Full HD 1080p support and up to 15,000:1 dynamic contrast ratio
  • Installation flexibility — up to ±50 percent vertical and ±10 percent horizontal lens shift
  • Wireless screen mirroring with Miracast — stream Full HD 1080p content and mirror your wireless Android device screen
  • Advanced connectivity — HDBaseT and 2x HDMI® inputs for easy integration with any system
  • Enterprise-level wireless security — the optional wireless LAN module (sold separately) supports robust wireless network security protocols that help keep information safe
  • Remote network monitoring and control — plus Message Broadcasting and built-in scheduling functions
  • Long-lasting lamp — up to 10,000 hours in ECO Mode²
  • Seamless integration tools — compatible with Crestron® RoomView® and Extron®

* Color brightness (color light output) measured in accordance with IDMS 15.4. Color brightness will vary depending on usage conditions. The projectors used by a third-party lab for measuring color brightness were leading Epson 3LCD business and education projectors and leading 1-chip DLP projectors, based on NPD sales data for June 2013 through May 2014 and PMA Research sales data for Q1 through Q3 2013.

¹ Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

² ECO Mode is up to 10,000 hours. Normal Mode is up to 5,000 hours. Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

Epson PowerLite 5535U Specifications:

General:

  • Projection System: High-aperture Epson® 3LCD, 3-chip technology
  • Projection Method: Front/rear/ceiling mount
  • Driving Method: Epson Poly-silicon TFT Active Matrix
  • Pixel Number: 2,304,000 pixels (1920 x 1200) x 3
  • Color Brightness - Color Light Output: 5,500 lumens¹
  • White Brightness - White Light Output: 5,500 lumens¹
  • Aspect Ratio: Supports 4:3, 16:9, 16:10
  • Native Resolution: 1920 x 1200 (WUXGA)
  • Resize: 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050
  • Lamp Type: 300 W UHE
  • Lamp Life: 10,000 hours (ECO Mode), 5,000 hours (Normal Mode)
  • Brightness Uniformity: 87%
  • Throw Ratio Range: 1.26 – 2.30
  • Size - projected distance: 50" – 300"
  • Keystone Correction: Vertical: ±30 degrees, Horizontal: ±30 degrees
  • Color Processing: (High Brightness, Dynamic Mode) 15,000:1
  • Color Reproduction: Up to 1 billion colors
  • Operating Temperature: 32° to 113° F (0° to 45° C)

¹ Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

Projection Lens:

  • Type:
    • Manual focus/zoom
      • F-number: 1.65 – 2.55
      • Focal Length: 21.34 mm – 37.99 mm
      • Zoom Ratio: Optical zoom: 1.0x – 1.8x

Projector Details:

  • Display Performance:
    • NTSC: 480 line
    • PAL: 576 line (depends on observation of the multi-burst pattern)
  • Input Signal: NTSC/NTSC4.43/PAL/M-PAL/N-PAL/PAL60/ SECAM/480i/576i/480p/576p/720p/1080i/1080p
  • Interfaces:
    • 1x HDBaseT
    • 2x HDMI (1x MHL)
    • Computer: 1x D-sub 15-pin
    • Component Video: 1x BNC
    • Audio-in: 2x Mini stereo
    • Network: 1x RJ-45 100 Mbps
    • Serial: 1x RS-232c
    • USB: 1x Type A (for wireless module, service, firmware update, clone settings)
    • 1x Type B (firmware update)
    • 1x Hardwire remote jack
    • Monitor Out: 1x D-sub 15 pin
    • 1x Audio Out
  • Fan Noise: 38 dB (Normal Mode), 28 dB (ECO Mode)

Physical:

  • Dimensions (W x D x H):
    • Including feet: 8.5" x 13.9" x 6.2"
    • Excluding feet and lens: 18.5" x 12.6" x 5.2"
    • Weight - with standard lens: 15.2 lbs

Remote Control:

  • Features: Power, Source Search Selection, Computer, Video, A/V Mute, Freeze, User ID, Auto, Aspect, Color Mode, Number, Page Up and Down, E-Zoom, Volume, Help, Menu, Enter, Esc and Pointer Functions
  • Operating Distance: 49 ft
  • Operating Angle:
    • Right/left: Front: ± 60 degrees; Rear: ± 30 degrees
    • Upper/lower: Front: ± 20 degrees; Rear: +10 to + 45 degrees

Power:

  • Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz AC
  • Power Consumption:
    • 462 W (Normal Mode)
    • 356 W (ECO Mode)
    • 3.0 W Standby (Communication On)
    • 0.5 W Standby (Communication Off)
