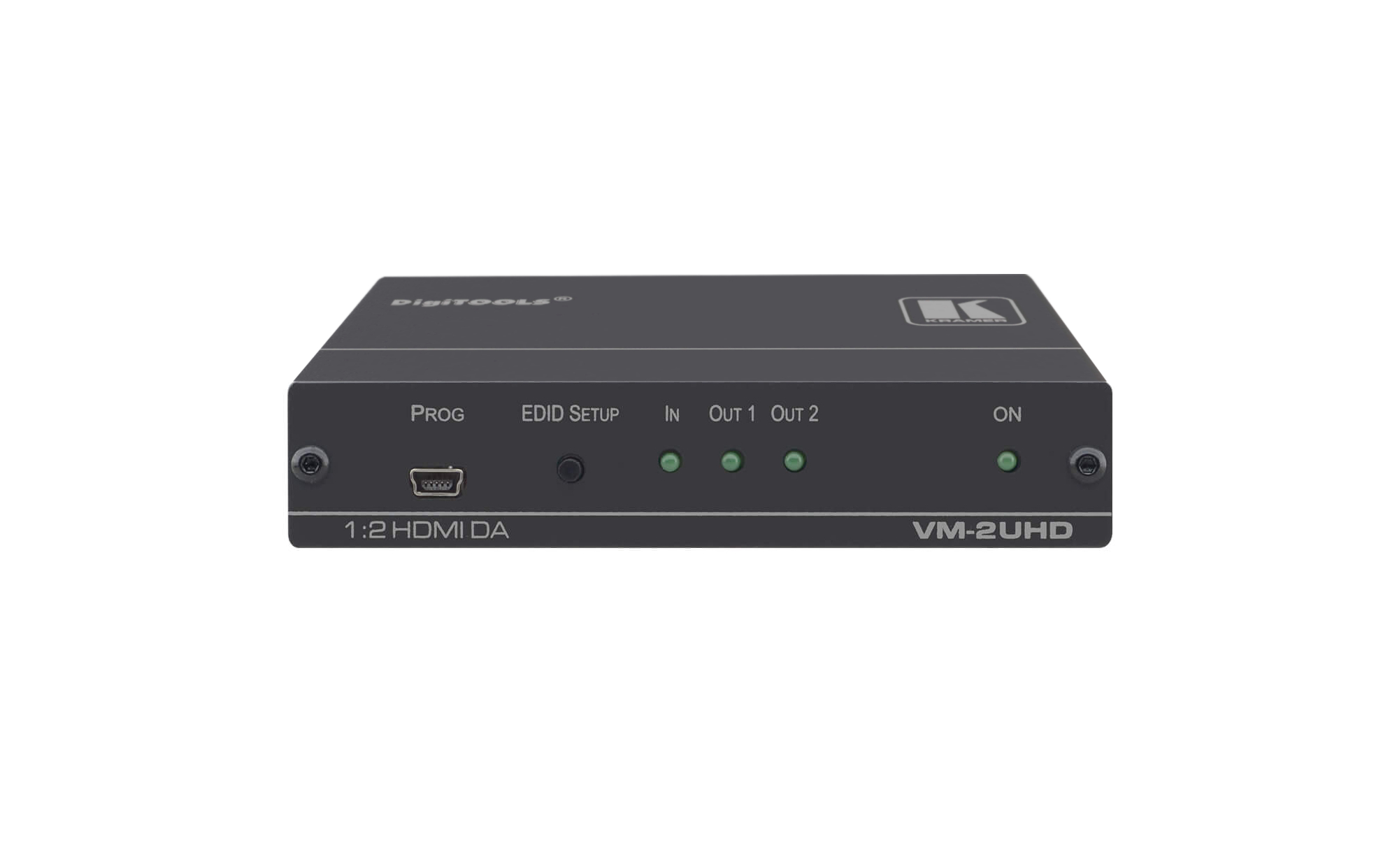

Kramer VM-2UHD
1:2/4K60/4:2:0 HDMI Distribution Amplifier

OUR PART #:  VM-2UHD

A 1:4 distribution amplifier for 4K @60Hz (4:2:0) HDMI 2.0 signals complying with the HDCP 1.4 content protection standard, Kramer's VM-2UHD takes one (1) HDMI signal input...
Learn More
Our Price: $288.00
List Price: $360.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer VM-2UHD
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

A 1:4 distribution amplifier for 4K @60Hz (4:2:0) HDMI 2.0 signals complying with the HDCP 1.4 content protection standard, Kramer's VM-2UHD takes one (1) HDMI signal input, equalizes and reclocks it, then distributes it to two (2) identical outputs.

Kramer VM-2UHD Includes:

  • VM-2UHD unit
  • Power supply

Kramer's VM-2UHD Features:

  • Transmitted Data Bandwidth — 10.2Gbps (3.4Gbps per graphic channel).
  • Video Resolution — Up to 4K @60Hz (4:2:0).
  • HDMI Signal Transmission — HDMI 2.0 and HDCP 1.4 compliant signal, supporting deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, CEC (OUT 1 only), 2K, 4K, and 3D.
  • Auto Outputs Turn–on/off — All outputs are turned on when input signal is detected and are turned off automatically, after user–selected delay, when no active input signal is detected.
  • I–EDIDPro™ Kramer Intelligent EDID Processing™ — An intelligent EDID selection, handling, locking, processing and pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
  • Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
  • Field Maintenance — Mini–USB connection for simple field firmware upgrade with Kramer K–Upload tool, easy EDID handling with Kramer EDID–Designer tool, status indicators for HDMI input and output connected signals, and power indicator, for ease of maintenance and troubleshooting.
  • Easy Installation — Compact Mega TOOLS™ fan–less enclosure for over–ceiling mounting, or side–by–side mounting of 2 units in a 1U rack space with the optional RK–T2B rack adapter.

Kramer's VM-2UHD Specifications:

  • Input: 1 HDMI connector
  • Outputs: 2 HDMI connectors
  • Port: 1 USB for firmware upgrades
  • Max. Data Rate: 10.2Gbps (3.4Gbps per graphic channel)
  • Compliance With HDMI Standard: Supports HDMI and HDCP
  • Controls: EDID Setup button
  • Indicator LEDs: IN, OUT 1 and 2 LEDs
  • Operating Temperature: 32° to 104°F (0° to +40°C)
  • Storage Temperature: 40° to 158°F (40° to +70°C)
  • Humidity: 10% to 90%, RHL noncondensing
  • Dimensions (WxDxH):
    • Product: 4.72" x 2.81" x 0.96" (12.00 x 7.15 x 2.44cm)
    • Shipping: 6.18" x 4.72" x 3.43" (15.70 x 12.00 x 8.70cm)
  • Weight:
    • Product: 0.4 lbs (0.2 kg) approx.
    • Shipping: 1.8 lbs (0.8 kg) approx.
  • Power Consumption: 5V DC, 800mA
  • Typical Application diagram (displays and DVD player sold separately):

http://k.kramerav.com/images/diagrams/vm-2uhd.jpg
