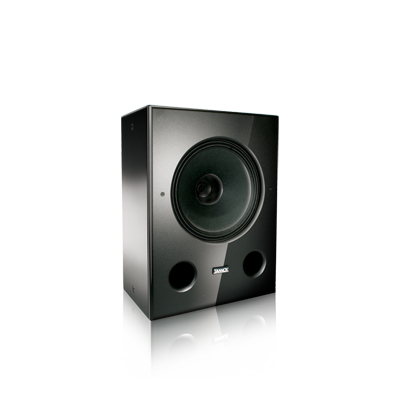

Tannoy DC12i
Speaker, 12" Daul Concentric Driver

OUR PART #:  DC12I

Based on a magnificent 300 mm (12 inch) version of the Definition Install Dual Concentric Driver...
Learn More
Our Price: $1,547.00
List Price: $1,856.40
You save 17%!

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Tannoy DC12i
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

Based on a magnificent 300 mm (12 inch) version of the Definition Install Dual Concentric Driver, this compact loudspeaker delivers power and performance like no other residential install loudspeaker on the market.

The 97 dB/Watt efficiency, 400 Watt programme material power handling and a staggering 800 Watt peak power handling allows the DC12i to run consistently at 120 dB with short-term peaks over 126 dB SPLs if required.

Yet the real highlight of the Definition Install DC12i is its incredibly dynamic, articulate and life-like performance. Using experience gained from over 50 years of Dual Concentric driver design and decade of pro-audio engineering excellence, the incredible DC12i driver is a full-range unit (50 Hz-38 kHz) with exceptionally low distortion and colouration. The Wideband tweeter delivers superior projection and spatial information thanks to its well-regarded TANNOY waveguide while the large mid-bass cone majors on communicating every nuance and effect with visceral impact.

Tannoy DC12i Specifications:

  • Frequency Range 1:  50Hz - 38kHz
  • System Sensitivity (1W @ 1m) 2:  97dB (1W = 2.83V for 8 Ohms)
  • Dispersion (-6dB): 90 degrees conical
  • Driver Complement: 1 x 300mm (12.00”) constant directivity Dual Concentric™
  • Crossover: Passive 1.4kHz with dynamic HF protection
  • Directivity Factor (Q): 6.0 averaged 1kHz to 10kHz
  • Directivity Index (DI): 7.4 averaged 1kHz to 10kHz
  • Rated Maximum SPL:
    • Average: 120dB
    • Peak: 126dB
  • Power Handling:
    • Average: 200W
    • Programme: 400W
  • Peak: 800W
  • Recommended Amplifier Power: 400W @ 8 Ohms
  • Nominal Impedance: 8 Ohms
  • Construction:
    • Enclosure: MDF, vented and internally braced
    • Finish: Textured black paint
    • Connectors: 2 x 4mm gold plated binding posts
    • Fittings:
      • 8 x M10 bracket inserts
      • 4 x wallplate keyhole fixings allowing landscape or portrait mounting orientations
      • 1 x Wall plate
    • Dimensions (H x W x D):  550 x 410 x 255 mm (21.65 x 16.14 x 10.04”)
    • Weight: 20kg (44 lbs)
