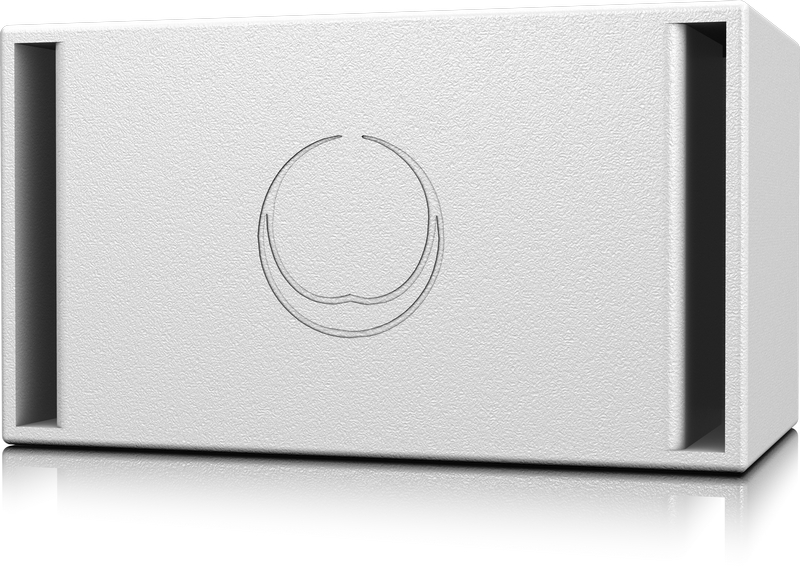

Turbosound TSB-110-WH
10" Band Pass Subwoofer for Installation Applications, White

OUR PART #:  TSB-110WH

The TURBOSOUND TSB-110-WH is a compact sub-bass enclosure designed to be used in a variety of installed sound system applications ranging from clubs and wine bars to theatres...
Learn More
Our Price: $249.00
List Price: $286.35
You save 13%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Turbosound TSB-110-WH
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

The TURBOSOUND TSB-110-WH is a compact sub-bass enclosure designed to be used in a variety of installed sound system applications ranging from clubs and wine bars to theatres, themed environments and places of worship. It comprises a dual voice coil 10" LF driver in a birch plywood enclosure consisting of two dissimilar compartments, optimally ported to produce substantial sub-bass energy from a cabinet of extremely modest dimensions.

The TSB-110-WH provides sub-bass support for several Turbosound enclosures. It is a essentially a dual channel loudspeaker, having two independent voice coils within the same drive unit, and so a single sub-bass enclosure can be configured as part of a high quality two channel system consisting of up to four satellite units per channel. The left and right low frequency input signals, having very little directionality, are summed to generate a mono bass signal. A rear panel connector plate provides left and right stereo inputs and outputs via four colour-coded spring-loaded push terminals.

The TSB-110-WH has been designed to fit into small spaces or architectural features where a conventional bass unit would be impractical. It can therefore be installed discreetly under bars or stages, or even underneath seating, without affecting sonic performance. M10 rigging points are additionally provided to allow the enclosure to be permanently installed.

The TSB-110-WH provides sub-bass support for several Turbosound enclosures. It is a essentially a dual channel loudspeaker, having two independent voice coils within the same drive unit, and so a single sub-bass enclosure can be configured as part of a high quality two channel system consisting of up to four satellite units per channel. The left and right low frequency input signals, having very little directionality, are summed to generate a mono bass signal. A rear panel connector plate provides left and right stereo inputs and outputs via four colour-coded spring-loaded push terminals.

The TSB-110-WH has been designed to fit into small spaces or architectural features where a conventional bass unit would be impractical. It can therefore be installed discreetly under bars or stages, or even underneath seating, without affecting sonic performance. M10 rigging points are additionally provided to allow the enclosure to be permanently installed.

TURBOSOUND TSB-110-WH Features:

  • Compact enclosure
  • 350 watt power rating
  • Dual voice coil speaker

TURBOSOUND TSB-110-WH Specifications:

  • Components: 1 x 254mm (10”) dual voice coil LF driver
  • Frequency Range: 45Hz to 180Hz @±4dB
  • Power Handling: 300 watts r.m.s., 600 watts program
  • Sensitivity: 95dB SPL, 1 watt @ 1 metre
  • Max. SPL: 120dB continuous, 126dB peak
  • Crossover: Built in high-pass crossover network at150Hz
  • Impedance: 2 x 4 ohms nominal
  • Construction: 15mm (5/8”) birch plywood, finished in black textured paint
  • Connectors: 2 x input L&R spring-loaded push terminals; 2x NL4MP; 2x output spring-loaded push terminals
  • Rigging: 4 x M10 rigging points
  • Dimensions: 13" H x 23" W x 13" D (330 x 585 x 330 mm)
  • Weight: 36.3 lbs (16.5 kg)
