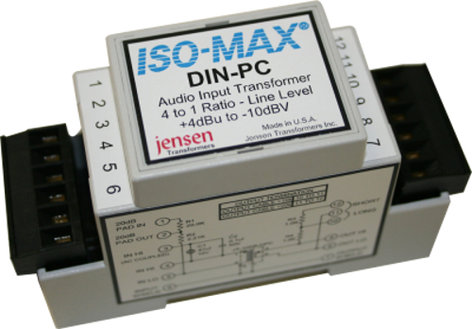

Jensen Transformers DIN-PC Single Channel Ground Isolator

The Jensen Transformers Iso•Max DIN-PC is a single channel pro-to-consumer isolator that is used to convert a +4 dBu line-level device to -10 dBV for consumer-level signals such as connecting the balanced output from a mixing desk to the unbalanced input of a hand-held video recorder or laptop.

The design begins with a gray molded assembly made from UL94-VO flame retardant Noryl that snaps into place onto a standard 35 mm DIN rail for easy installation in a NEMA enclosure. Connections to and from the module are made via removable screw-down wire terminals. Plug and play easy to use, this passive interface does not require any power to work. Inside is a Jensen high performance transformer that is able to withstand signal levels to +21 dBu at 20 Hz without discernible distortion. This provides galvanic isolation between the input and output to eliminate hum and buzz caused by ground loops, rejecting noise by as much as 120 dB.

Made for the most demanding professionals, the DIN-PC delivers a ruler flat response from 10 Hz to 140 kHz with less than 2° phase shift at all frequencies. This makes the DIN-PC ideal for converting balanced sources to unbalanced inputs for large scale installations in performance venues, broadcast houses and AV systems.

Jensen Transformers Iso•Max DIN-PC Features:

• Converts +4 dB balanced signals to -10 dB unbalanced
• Eliminates hum and buzz caused by ground loops
• Ruler flat frequency response from 10 Hz to 140 kHz
• Plug and play easy to use, no power required
