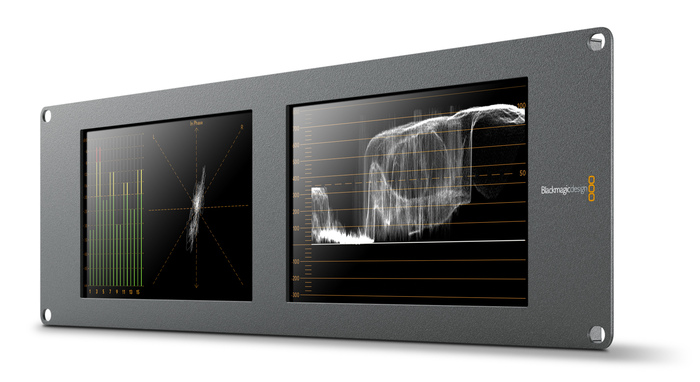

Blackmagic Design SmartScope Duo 4K
Dual 8" 3RU SDI/HD-SDI/3G-SDI/6G-SDI 4K Monitors with Built in Scopes

OUR PART #:  HDL-SMTWSCOPEDUO4K2

The SmartScope Duo 4K from Blackmagic Design looks like the previously released SmartView Duo but adds independent waveform monitoring so you can select between waveform...
Learn More
Our Price: $755.25
List Price: $795.00
You save 5%!
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Blackmagic Design SmartScope Duo 4K
Qty:
In Stock

Similar Products

The SmartScope Duo 4K from Blackmagic Design looks like the previously released SmartView Duo but adds independent waveform monitoring so you can select between waveform, vectorscope, RGB parade, YUV parade, histogram and audio phase level displays. Each monitor is independent so can display any combination of scope or picture view. This unique dual rack monitor allows a range of broadcast accurate waveform monitoring on 2 large 8 inch LCD screens of any SD, HD and Ultra HD video source.

In a compact rack mount design that is less than an inch thick, SmartScope Duo 4K includes powerful image processing allowing each of the two screens to be independently selected. There are 7 types of waveform display that can be selected by the user, and an audio scope with 16 channels of SDI audio and audio phase meter. SmartScope Duo 4K is an ideal solution for general video monitoring as it handles virtually all SD, HD and Ultra HD video standards via its 6G-SDI inputs and all screens can be remotely adjusted via the customer’s Ethernet network. SmartScope Duo 4K can be installed into equipment racks for local monitoring in post production, or for multi monitor video walls in master control rooms or for camera monitoring for production switchers.

Blackmagic Design SmartScope Duo 4K Includes:

  • SmartScope Duo 4K
  • Power Supply
  • SD card with software and manual

Blackmagic Design SmartScope Duo 4K Specifications:

  • Model: HDL-SMTWSCOPEDUO4K2
  • Connections:
    • SDI Video Input: Automatically switches between SD, HD and 6G-SDI. Reclocked loop through output.
    • SDI Video Output: 1 x 10 bit loop through SD, HD and 6G-SDI switchable.
    • SDI Audio Input: 16 channels embedded in SD, HD and UHD.
    • SDI Audio Output: 16 channels embedded in SD, HD and UHD.
    • Multi Rate Support: Standard definition SDI, high definition SDI and 6G-SDI.
    • Tally: 9-pin D connector
  • Standards:
    • SD Format Support: 525i29.97 NTSC, 625i25 PAL
    • HD Format Support:
      • 720p50, 59.94, 60
      • 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • 1080PsF23.98, 24, 25, 29.97, 30
      • 1080i50, 59.94, 60
    • 2K Format Support:
      • 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
      • 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
    • Ultra HD Format Support: 2160p23.98, 24, 25, 29.97, 30
    • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B and SMPTE 425M.
    • Audio Sampling: Television sample rate of 48KHz
    • Video Sampling: 4:2:2 and 4:4:4
    • Color Precision: 8-bit
    • Color Space: YUV and RGB
    • Computer Interface: USB 2.0 for software updates and Ethernet for configuration
    • Colorspace Conversion: Hardware based real time.
  • Scopes: Luminance Waveform, Vectorscope, RGB Parade,YUV Parade, Histogram, Audio phase and level.
  • Software:
    • Software Included: Configuration utility for MAC and Windows.
    • Internal Software Upgrade: Via included firmware updater software.
    • Physical Installation: 3RU
  • Operating Systems:
    • Mac: OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan or later.
    • Windows: Windows 8.1 or Windows 10.
  • Power Requirements:
    • Power Supply: 12V universal power supply included with international socket adapters for all countries.
    • Power Consumption: < 20 Watts
    • Operational Voltage Range: 12V - 15V
  • Physical:
    • Dimensions (HxWxD): 5.24" x 19" x 1.26"
    • Weight: 3.37 lbs.
  • Environmental:
    • Operating Temperature: 32° to 104° F (0° to 40° C)
    • Storage Temperature: -4° to 113° F (-20° to 45° C)
    • Relative Humidity: 0% to 90% non-condensing
