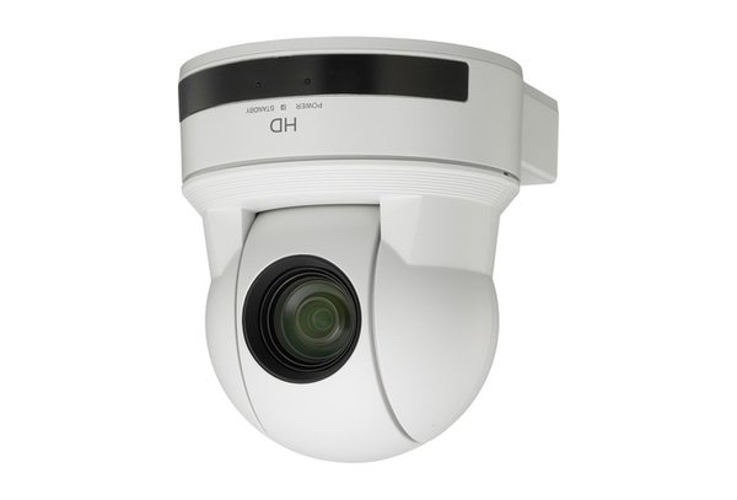

White HD P/T/Z Camera, 1080p


The EVI-H100S is one of the newest additions to the EVI PTZ HD camera lineup.
Learn More

Sorry this product is currently out of stock.
Please contact a Sales Pro at 800-356-5844 for alternate options.

Similar Products

The EVI-H100S is one of the newest additions to the EVI PTZ HD camera lineup. Featuring full 1080/20 HD resolution with a 1/2.8-type Exmor CMOS sensor, this dynamic new camera is a smart-looking addition to Sony's feature-rich EVI HD camera lineup. Ceiling mountable and also available in white, this camera offers a multitide of options in remote-monitoring, videoconferencing, distance learning and house of worship applications.

NOTE: This is a RESTOCK item that has had its box opened or has been repackaged. It may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

Sony EVIH100S/W Features:

  • The new EVI-H100S is ceiling mountable, allowing for a multitiude of additional options in a variety of remote monitoring applications
  • Offering full 1080/20 HD resolution with 20X optical zoom makes the EVI-H100S ideal for a variety of applications
  • The EVI-H100S features 1/2.8-type Exmor CMOS sensor, which provides crisp,clear HD images
  • A key feature of the EVI-H100S is the RS-232C/RS-422 interface protocol.allowing for easy connectivity to a variety of peripheral products.
  • Also available in a white version: EVI-H100S/W

Sony EVIH100S/W Specifications:

  • Camera Specifications:
    • Image Device: 1/2.8-type Exmor CMOS sensor
    • Lens: 20x Optical Zoom, 12x Digital Zoom
    • Minimum Object Distance: 10mm (wide) - 1,500mm (tele) *Default: 290mm
    • Auto Exposure: Yes
    • Shutter Speed: 1 to 1/10,000 s
    • Gain: Auto/manual/Max. AE Gain Limit (-3 to 28 dB, 2 dB steps)
    • White Balance: Auto, ATW, Indoor, Outdoor, One-push, Manual
    • Pan Angle/Speed: ± 170°
      • 100°/sec
    • Tilt Angle/Speed: +90°/-20°
      • 90°/sec
    • Horizontal Viewing Angle: 55.4° (wide) to 2.9° (tele)
      • Resolution Value
    • Preset Positions: 6
  • Interface Specifications:
    • Camera Control Interface: RS-232C/RS-42
  • Video Output Specifications:
    • Minimum Illumination: High Sensitivity Mode: 0.5 lx (F1.6, 50 IRE)
    • Normal Mode: 1.7 lx (F1.5, 50 IRE)
    • S/N Ratio: More than 50 dB
    • Video Output: HD: HD-SDI
    • SD: VBS
    • Signal System: HD: 1080p/29.97, 1080p/25, 1080i/59.94 (frame out1080PsF29.97), 1080i/50 (frame out 1080PsF25)
    • 720p/59.94, 720p/50, 720p/29.97, 720p/25
    • SD: NTSC/PA
  • General Specifications:
    • Dimensions (WxHxD): 145 x 164 x 164 mm
    • Weight: 1,550 g (3 lb. 7 oz)
    • Power Requirements: DC 12V
    • Power Consumption: 12 W
    • Operating Temperature: 0°C to 40°C (32°F to 104°F)
    • Storage Temperature: -20°C to 60°C (-4°F to +140°F)
