Korg ARP Odyssey FS Rev 2
Duophonic Analog Synthesizer, Black/Gold

OUR PART #:  ODYSSEYFS2

The limited edition, full-size ARP Odyssey FS is designed with a standard keyboard and body that provide great playability...
Learn More
Our Price: $1,599.99
List Price: $2,200.00
You save 27%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Korg ARP Odyssey FS Rev 2
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

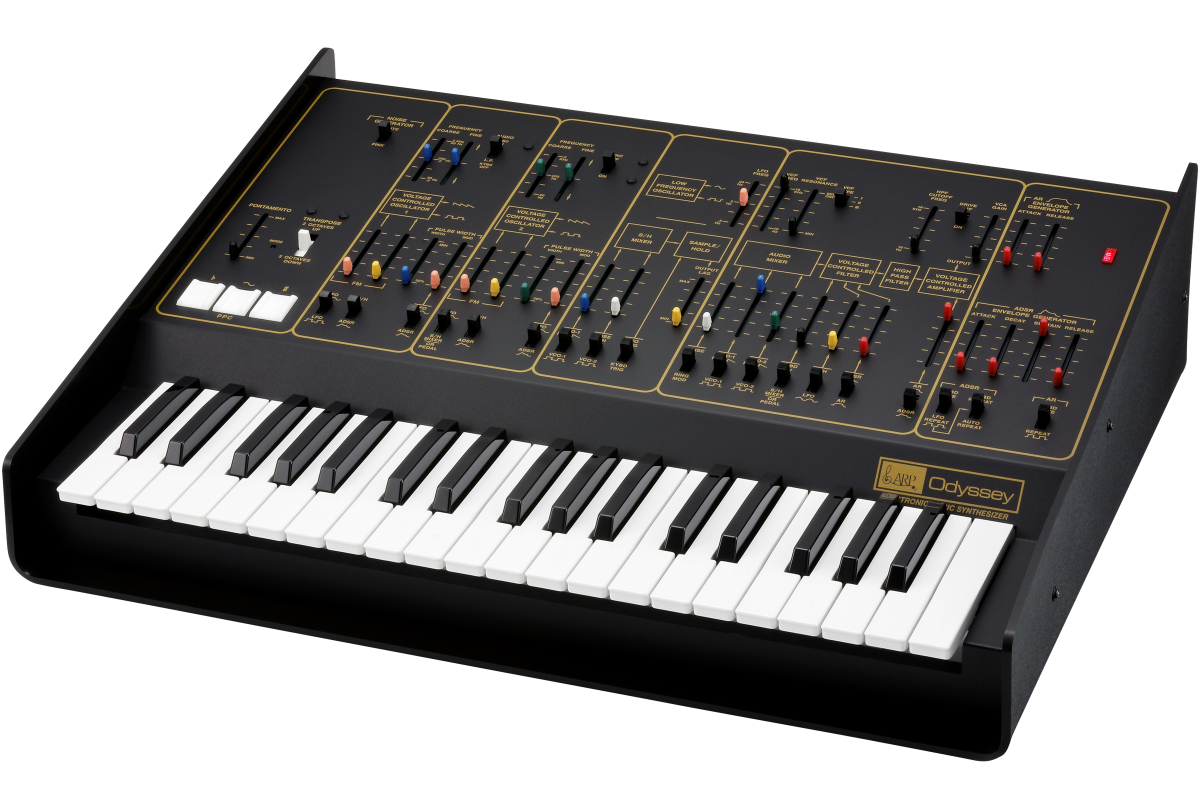

The limited edition, full-size ARP Odyssey FS is designed with a standard keyboard and body that provide great playability, and a spacious panel layout with faders that provide a smooth operating experience. The ARP Odyssey FS Rev2 is a recreation of the Model 2810-2813 produced in 1972-1974 with black panel and gold silk-screening.

Korg ARP Odyssey FS Rev1 Specifications:

  • Keyboard: 37-note (Standard key or Full size key, Novelocity sensitivity, No aftertouch)
  • Maximum Polyphony: 2 voices for duophonic; normallymonophonic
  • Controllers
    • Transpose Positions: 2 octaves down, normal, 2 octave up
    • Proportional Pitch Control:
      • b (Pitch down) Pad: about -2 / 3 octave
      • - (Modulation) Pad
      • # (Pitch-up) Pad: about +2 / 3 octave
  • Noise Generator: Noise Spectrum Types (white and pink)
  • Portamento
    • Maximum Speed: about 0.01 msec./oct
    • Minimum Speed: about 1.5 sec./oct
  • VCO (Voltage Controlled Oscillator)
    • Waveforms: Sawtooth, Square, Pluse (Dynamic Pluse)
    • Frequency Range: VCO-1 in low freq. mode, 0.2 Hz – 20 Hz: VCO-1 and VCO-2 (audio range) about 20 Hz – 20 kHz
    • Warm Up Drift: 1/30 semitone from turn on max
    • Pulse Width: 50 % – 5 %
    • Pulse Width Modulation
      • ADSR, +45 %
      • LFO, +15 %
    • Voltage Controlled Response: 1 V/oct
    • Maximum Frequency Shifts
      • LFO sin wave, +1/2 oct.
      • LFO square wave, +1.5 oct.
      • ADSR, +9 oct.
      • S/H, +2 oct.
      • * VCO-1 is low note priority, VCO-2 is high note priority.
  • VCF (Voltage Controlled Filter)
    • Types: Low pass (I: 12 dB/oct., II III: 24 dB/oct.)
    • Frequency Range: 16 Hz - 16 kHz
    • Maximum Usable Q: 30
    • Resonance: 1/2 - self oscillate
    • Voltage Controlled Response
      • C3 key (left edge): 0 V
      • C6 key (right edge) 3 V
  • VCA (Voltage Controlled Amplifier)
    • Dynamic Range: 80 dB
  • Ring Modulator
    • Type: Digital
    • Input Signal: VCO-1, VCO-2 (square wave)
  • Sample & Hold
    • Command Sources: Keyboard or LFO trigger
    • Sampled Signals: VCO-1 sawtooth wave and square wave, VCO-2 square wave and pink noise
  • Control Input Jacks
    • Pedal: 6.3 mm monaural phone jack
    • Portamento Foot Switch: 6.3 mm monaural phone jack
