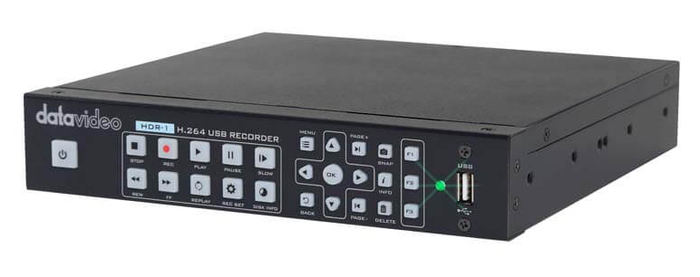

Datavideo Corporation HDR-1
Standalone H.264 USB Recorder - Player

OUR PART #:  HDR-1

For making your recording and viewing applications easier, an option to consider is Datavideo's HDR-1.
Learn More
Our Price: $499.00
Be the first to review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Datavideo Corporation HDR-1
Qty:
In Stock

Similar Products

For making your recording and viewing applications easier, an option to consider is Datavideo's HDR-1. The HDR-1 is a standalone HD Recorder box which allows you to record and playback HD video without using any PC. The box is equipped with one HDMI Input and one HDMI Output with the video recorded in MP4 (H.264+AAC) file format. This will allow you to record high quality format video files (up to20 Mbps in MP4), which is ideal for capturing and archiving footage from worship seminars, corporate meetings, school announcements, lectures, or live concerts. It can also be used by broadcasters to create a web-optimized proxy recording.

One major advantage of the HDR-1 is its ability to use it independently of a PC by simply connecting it to an HDMI video source. The HDR-1 records from a range of devices, including HDMI digital camcorder and camera, IP cam, game console, PC Game (720p recommended) and etc. By using the HDR-1, recorded files can be uploaded to YouTube or many websites immediately after an event without needing to transcode, which makes it easy to share your content online. Front panel buttons make it easy to use. The record/pause feature allows users to record an event conveniently as a single file even if there is a break in proceedings.

Datavideo HDR-1 Features:

  • Capture HD Video Up to 1080p30
  • Instant & Timer Recording
  • Redundant Power recorder (UPS), will switch to powerbank charging when main power is off (with power bank connected)
  • Works without a PC
  • Record video to USB flash drive with NTFS file format

NOTE: To ensure recording quality, recommend the write speed of the USB 3.0 thumb drive should be faster than 45 MB/s

  • Video Pass Through Support:
    • 480i/480P/576i/576P
    • 720P @ 50/60, 1080i @ 50/60
    • 1080P @ 50/60/24
  • 1080P 30 frame recorder (Recording quality up to1080p/30fps (Playback on TV show 1080i/60fps))
  • Supported playback and record file formats:MP4(H.264+AAC)
  • Support GPI and RS-232 control
  • USB Port for external power input from external PowerBank
  • Support 3D video Recorder (Top-and-bottom,Side-by-side Half)
  • Support 3D Pass through (BD 3D H.264-MVC 3Dstructures supported, Top-and-bottom, Side-by-side)
  • Storage device auto detect & setup
  • Recorder Bit rate: 3~20Mbps depend on resolution
  • Record video to USB flash drive with NTFS file format
  • Built-in video Editor
  • Time zone & Date-time selection
  • HDMI 1.4b Compatibility

Datavideo HDR-1 Specifications (partial):

Interfaces:

  • Video Input: HDMI Type A x 1
  • Video Output: HDMI Type A x 1
  • DC IN: DC Jack
  • Storage: USB Port x 1 (Female Type A / USB 2.0Compliant)
  • Control: RS-232 / GPI (Pulse Trigger: Record Start / Stop)

Coding Spec:

  • Container:  MP4: H.264 + AAC

Profile:

  • Main/High Profile:
    • 480i60 Main profile Level 4.1
    • 480p60 Main profile Level 4.1
    • 576i50 Main profile Level 4.1
    • 576p50 Main profile Level 4.1
    • 720p50 Main profile Level 5.0
    • 720p60 Main profile Level 5.0
    • 1080i50 High profile Level 4.1
    • 1080i60 High profile Level 4.1
    • 1080p50 High profile Level 5.0
    • 1080p60 High profile Level 5.0

Video Coding:

  • H.264 4:2:0:
    • HD: 1080P 20Mbps/18Mbps/15Mbps
    • HD: 720P 20Mbps/15Mbps.10Mbps
    • HD: 1080i 15Mbps/12Mbps/10Mbps
    • SD: 576P/480P/576i/480i 7.5Mbps/5Mbps/3Mbps

Audio Coding:

  • AAC: Stereo 16 bit 48KHz 128Kbps

USB Storage Device Condition:

  • File System: NTFS
  • Storage Speed: Minimum write speed > 45 MBytes

Features:

  • Recording Function: Record, Play/Pause, Fast Forward, Rewind, PreviousClip, Next Clip, Recall Slow Motion

NOTE: For full features and specifications, please refer to the documentation tab above.
