JBL CONTROL-28-1-WHT [USED ITEM]
High Output Indoor/Outdoor, Background/Foreground Speaker, White, Sold In Pairs

OUR PART #:  CONTROL-28-1-W-RST-1

The JBL The Control® 28-1 is a two-way 8” speaker with rich sonic character, wide coverage, consistent coverage...
Learn More
Sale Price: $190.47
List Price: $315.00
You save 40%!

This product must be purchased in multiples of 2

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

JBL CONTROL-28-1-WHT [USED ITEM]
Qty:
In Stock
Similar Products

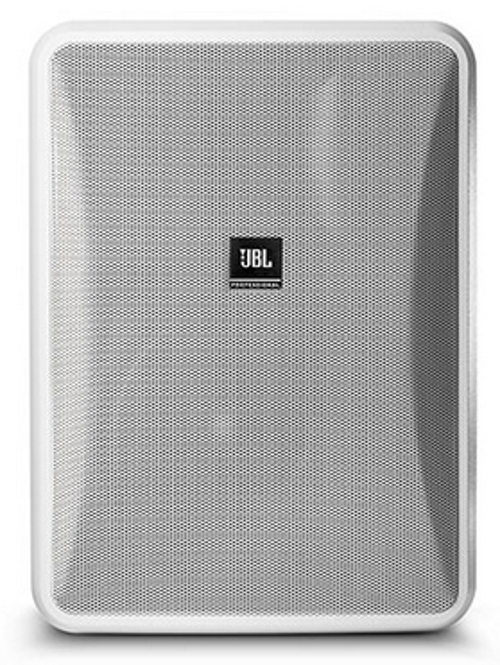

The JBL The Control® 28-1 is a two-way 8” speaker with rich sonic character, wide coverage, consistent coverage, versatile mounting, and a contemporary high design look that fits into a wide range of decors, This makes Control 28-1 a great choice for a wide variety of applications, including retail stores, restaurants, health clubs, theme parks, educational facilities, hospitality, music cafes, leisure venues, and anywhere where a top quality high-output indoor/outdoor foreground/background music (and/or paging) speaker is required.

The unique InvisiBall mounting hardware is included in with each system, making short work of permanent installation. The InvisiBall mounting method provides a high degree of both vertical and horizontal rotation, and because InvisiBall adjustments are made through a hidden access behind the logo badge, the grille never needs to be removed and there exists a high degree of theft deterrence as well. Integrated M6 mounting points for an optional U-bracket adds to the installation versatility.

NOTE: This is a USED item that may have minor cosmetic flaws and may have been sold to a customer and returned. Please contact your Sales Pro for more information on this and other products.

JBL Control 28-1 Features:

  • Components:
    • 8” woofer with woven fiberglass cone
    • 1” PEI diaphragm tweeter with fluid cooling
  • Contemporary, high-design appearance
  • Built-in InvisiBall® mounting hardware, plus available U-bracket
  • Weather resistant enclosure and transducers
  • Wide 100° x 100° coverage
  • 120 Watt power handling (240 Watt program) in direct 8O setting, plus built-in 60 Watt 70V/100V multi-tap transformer.
  • High fidelity sound character with broad frequency response of 45 Hz – 20kHz.

JBL Control 28-1 Specifications:

  • Frequency Range (-10 dB): 45 Hz to 20 kHz
  • Frequency Response (+/-3 dB): 62 Hz - 16 kHz
  • Power Rating:
    • 240 W Continuous Program (2 hrs)
    • 120 W (480W peak), Continuous Pink Noise (2 hrs)
    • 90 W (360W peak) Continuous Pink Noise (100 hrs)
  • Maximum Input Voltage: 27.5 V RMS (2 hrs), 55.0 V peak
  • Maximum SPL: 112 dB ave. Continuous Pink Noise (118 dB peak)
  • Sensitivity: 91 dB, 1W/1m (ave. 100 Hz – 10 kHz)
  • Coverage Angle: 100° x 100°
  • Directivity Factor (Q): 7.3 (averaged 1 kHz – 16 kHz)
  • Directivity Index (DI): 8.3 dB (averaged 1 kHz – 16kHz)
  • Nominal Impedance: 8 ohms (THRU setting)
  • Crossover Type: 2nd order low-pass, 1st order high-pass, plus conjugate shaping
  • Transformer Taps:
    • 70V: 60W, 30W, 15W, 7.5W
    • 100V: 60W, 30W, 15W
    • Insertion Loss: < 0.94 dB at any tap setting
    • Thru Setting: 8 Ohms nominal
  • Recommended Protective High-Pass: 45 Hz high-pass (24dB/oct) for 8 Ohms operation plus 15W and 7.5W taps; 55 Hz for 30W tap; 65 Hzfor 60W tap.
  • Colors: Black (RAL9004) or white (-WH, RAL9016)
  • Dimensions (H x W x D): 386 x 282 x 219 mm (15.2" x11.1" x 8.6"); 277 mm (10.9 in) deep total when mounted on InvisiBall wall-mount bracket.
  • Net Weight: 6.8 kg (15.0 lbs)
  • Shipping Weight: 15.4 kg (34 lbs) pair-packed (for 2 speakers)
  • Included Accessories: InvisiBall™ (wall-mounting system), 6 mm x 180 mm hex key
