Product Overview

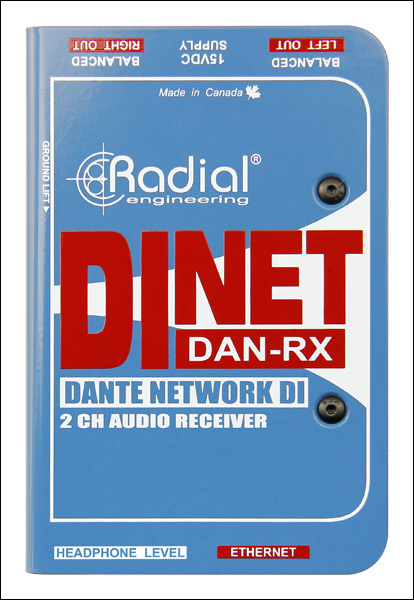

As a digital network audio receiver, the DiNET DAN-RX from Radial Engineering is capable of converting 2 channels of digital audio to analog, allowing routing to any location from a Dante compliant network.

It features balanced XLR outputs and a separate headphone amp with its own level control is included for local testing or personal monitoring. The RJ45 connector takes the digital Dante signal and converts it back into analog. Additionally, it includes redundant powering that's available for use during critical applications, simultaneously employing both the included external power supply together with Power over Ethernet (PoE).

Features

  • Stereo analog output device for Dante networks
  • Balanced XLR outputs for connection at mic or line level
  • Built-in headphone amp for personal monitoring
  • 24-bit/96kHz digital-to-analog conversion

Specifications

  • Audio Circuit Type: High current balanced active output device
  • # of Channels: 2
  • Sample Rate: 44.1kHz, 48kHz, 88.2kHz, and 96kHz
  • Bit Depth: 24 bit
  • Frequency Response: 20 Hz to 20 kHz
  • Dynamic Range: >100 dB
  • Gain: 8 dBu max @ -6 dBfs
  • Total Harmonic Distortion + Noise: 0.007% @ -6 dBfs
  • Input Connector: RJ45 Ethernet
  • Output Connectors: 2 x XLR, 3.5mm headphone
    • Output Impedance: 150 Ω
  • Construction: 14-gauge steel
  • Power: 15VDC 400mA (included) and/or PoE
  • Conditions: For use in dry locations only, 5-40°C
  • Dimensions (H x W x D): 1.88" x 3.31" x 5"
  • Weight: 1.45 lbs (0.66 kg)
