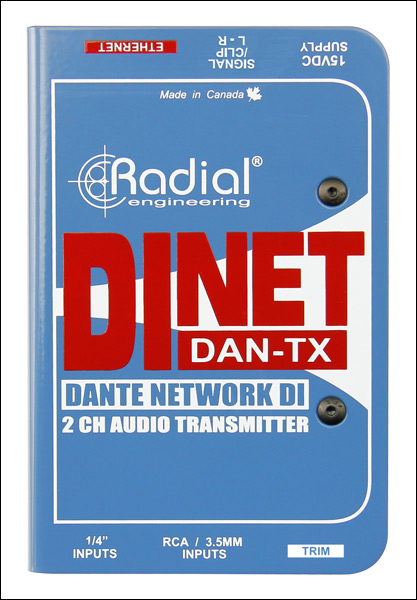

Radial Engineering DiNET DAN-TX 2-Channel Dante Network Transmitter

OUR PART #: DAN-TX

Copied to clipboard

It's easy to transmit 2 channels of high-quality analog audio over a Dante network using Radial Engineering's DiNET DAN-TX. It features multiple input options... ...Read more

Radial Engineering DiNET DAN-TX 2-Channel Dante Network Transmitter Image 1
Radial Engineering DiNET DAN-TX 2-Channel Dante Network Transmitter Image 2
Radial Engineering DiNET DAN-TX 2-Channel Dante Network Transmitter Image 3
ZhKHwA_vS94
1 Video
Radial Engineering DiNET DAN-TX 2-Channel Dante Network Transmitter
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

It's easy to transmit 2 channels of high-quality analog audio over a Dante network using Radial Engineering's DiNET DAN-TX.

It features multiple input options, with balanced TRS connectors for use with professional audio sources, RCA jacks for use with consumer line-level devices, plus a 3.5mm aux input for interfacing with laptops, smartphones and tablets. It's equipped with a trim control knob to tame especially hot signals. It then takes the stereo analog signal and converts it to a Dante-compliant digital signal and sends it through the RJ45 connector. It also features redundant powering that's available for critical applications by simultaneously employing the included external power supply along with Power over Ethernet (PoE).

Features

  • Stereo analog input device for Dante networks
  • Connect instruments or line level sources
  • 1/4", RCA, and 3.5mm stereo TRS inputs
  • 24-bit/96kHz analog-to-digital conversions

Specifications

  • Audio Circuit Type: High current balanced active input device
  • # of Channels: 2
  • Sample Rate: 44.1 / 48 / 88.2 / 96 kHz
  • Bit Depth: 24 bit
  • Frequency Response: 20 Hz to 20 kHz
  • Dynamic Range: > 103 dB
  • Equivalent Input Noise: -98 dB
  • Total Harmonic Distortion + Noise: 0.008% @ -6 dBfs
  • Input Connectors: 1/4" TRS, 3.5mm TRS, RCA
    • Unbalanced Input Impedance
      • Instrument Mode: 240 kΩ
      • Line Mode: 20 kΩ
    • Balanced Input Impedance - Line Mode: 40 kΩ
  • Output Connector: RJ45 Ethernet
  • Construction: 14-gauge steel
  • Power: 15 VDC 400mA adapter (included) or PoE
  • Conditions: For use in dry locations only, 5-40°C
  • Dimensions: (H x W x D): 1.88" x 3.31" x 5"
  • Weight: 1.45 lbs (0.66 kg)
