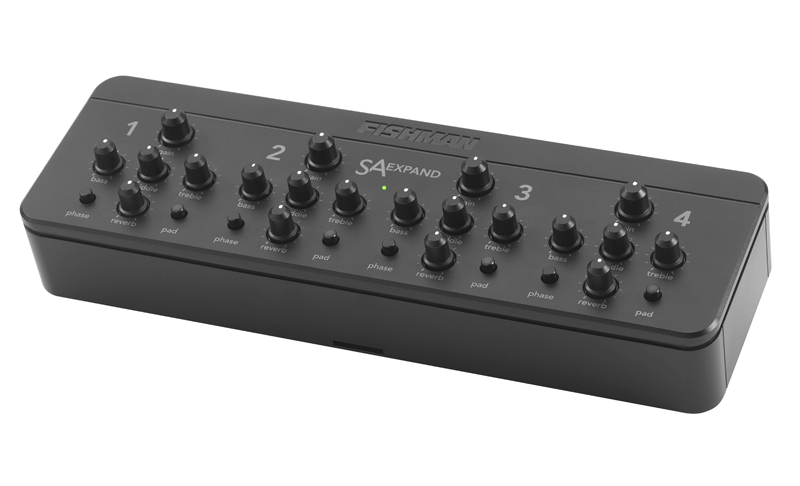

Fishman PRO-MIX-100 Channel Expander for use with SA330X Systems

OUR PART #: PRO-MIX-100 MFR #: PRO-MIX-100

Copied to clipboard
Fishman PRO-MIX-100 Channel Expander For Use With SA330X Systems Image 1
Fishman PRO-MIX-100 Channel Expander For Use With SA330X Systems
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Accessories

Product Overview

The Fishman PRO-MIX-100 SA Expand Channel Mixer provides Fishman-quality sound without the clutter of additional wall warts or connectivity issues found with typical line mixers.

The SA Expand 4-channel expander/mixer allows musicians, presenters and AV professionals to easily and affordably add up to four additional microphones, instruments or program sources to their SA Performance Audio System. Phantom powered, when connected to the SA330x, the SA Expand requires no additional power supplies or adaptors to set up.

The SA Expand is a full-featured expander/mixer featuring four channels of Fishman preamplifiers, each with 3-bands of EQ and phase control for pro-quality mixing versatility.

Convenient wired-remote access to the SA330x via the Accessory port and four XLR / 1/4” inputs. With the SA Expand performers can easily expand their systems to accommodate additional instruments and audio sources as needed.

Fishman SA Expand Features:

  • Four channels of Fishman preamplifiers, each with 3-bands of EQ and phase control for pro-quality mixing versatility
  • Combo 1/4” / XLR inputs
  • 10dB Input Pad for high-output audio sources
  • An effects send on each channel to allow the SA Expand to utilize the effect section on the SA330x
  • Switchable 48V phantom power for condenser microphones
  • Aux input offers convenient input for set-break music, backing tracks or other program material (standard 1/8" input)
  • Included 15-foot Cat5-style interconnect cable allows users to easily connect the SA Expand to their SA330x

Fishman SA Expand Specifications:

  • Model Number: PRO-MIX-100
  • Dimensions (HxWxD): 2.2" x 10.7" x 3.4" (55.9 x 272 x 86.3 mm)
  • Weight: 1.05 lbs (.48 kg)
