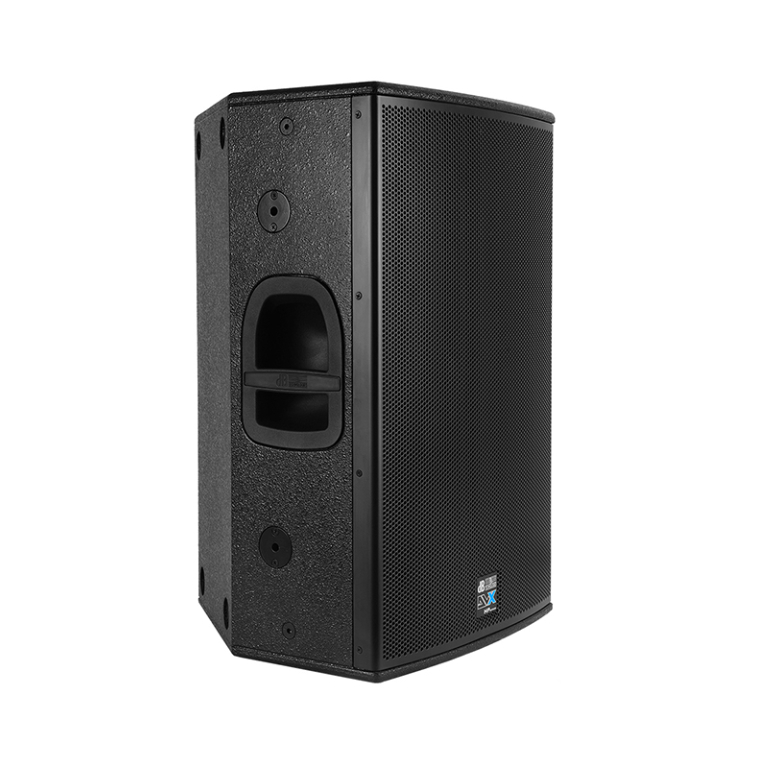

DB Technologies DVX-D15-HP
15" 2-way active speaker

OUR PART #:  DVX-D15-HP

The dBTechnologies DVX-D15-HP delivers punchy, assertive bass response without requiring an added subwoofer.
Learn More
Our Price: $1,899.00
List Price: $2,400.00
You save 21%!
Write the first review.
DB Technologies DVX-D15-HP
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The dBTechnologies DVX-D15-HP delivers punchy, assertive bass response without requiring an added subwoofer. Its integrated, high-performance digipro G2 digital power amp delivers very high sound pressure levels, exceedingly dynamic response, and tight, clean low-end response.

Loaded with high quality speakers, it provides premium audio performance with maximum reliability and minimum power compression.

A 1.4” driver with a 2,5” voice coil designed to handle highest loads renders vocals with a powerful, assertive punch, easily throwing signals across medium-to-longer distances.

The housing’s multifunctional design incorporates rigging points and a slanted panel serving monitoring purposes.

The onboard controller even provides a special monitor setup that specifically adapts the enclosure’s performance for use as a monitor.

It also serves as a controller for an active equalizer, x-over, limiter, and phase and delay time alignment.

The DVX D15 HP is the perfect match for DVA Series subwoofers

dB Technologies DVX-D15-HP Specifications:

  • Speaker Type: 2-Way Active Speaker
  • Acoustical data:
    • Frequency Response [-10dB]: 49 - 20.000 Hz
    • Frequency Response [+/- 3dB]: 57 - 19.000 Hz
    • Max SPL: 132 dB
    • HF: 1.4"
    • Voice Coil HF: Titanium 2.5"
    • Directivity: 60° x 40°
    • Horn: CD Horn Aluminium
    • Rotatable Horn: YES
    • LF: 15"
    • Voice Coil LF: 3.5"
  • Amplifier:
    • Amp Technology: Digipro® G2
    • Amp Class: Class D
    • Power RMS: 700 W
    • Peak Power: 1400 W
    • Cooling: Convection
  • Processor:
    • Controller: DSP 24 Bit/48 kHz
    • System Presets: FOH, Monitor
    • Limiter: RMS, Peak. Thermal, Multiband
    • Crossover Frequency MF-HF: 1320 Hz
    • Slope MF-HF: 24 dB/Octave
  • Mechanics:
    • Housing: Multiplex plywood
    • Housing Design: Multifunctional
    • Angles Up: Monitor use 45°
    • Rigging Points:
      • 6x M10
      • 4x Quick-Relase Pins
    • Flytracks:
      • 3x on top
      • 3x on bottom
    • Dimensions (WxHxD): 17.2" x 27.6" x 18" (430 x 690 x 450 mm)
    • Weight: 66.8 lbs (30.3 kg)
