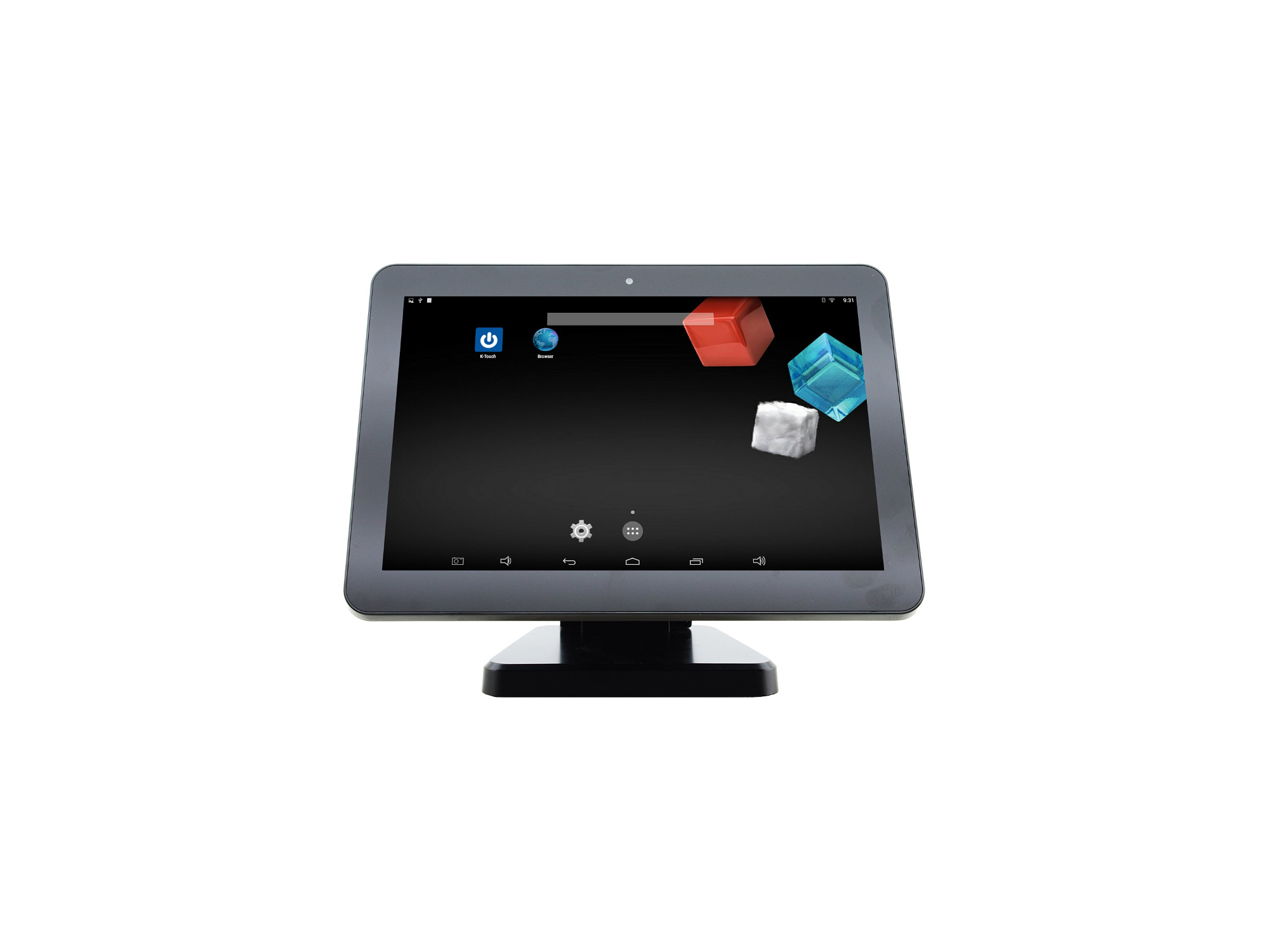

Kramer KT-10
10" K-Touch Wall and Table Mount PoE Touch Panel

OUR PART #:  KT10-KRA

A portable 10" IPS multitouch touch panel with 1280x800 resolution, the Kramer KT-10 is an Android-based touch panel that can be tabletop or wall-mounted...
Learn More
Kramer KT-10 - Controls View
Kramer KT-10 - Connectors View
Kramer KT-10 - Tabletop Stand

Click a thumbnail to see more images. (6 total)

Our Price: $1,916.00
List Price: $2,395.00
You save 20%!
Write the first review.

Full Compass offers free ground shipping on thousands of stock and non-stock (special order) items for orders placed on this web site and shipping in the continental US (48 states).

Learn More

Free Shipping

Available

Kramer KT-10
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

A portable 10" IPS multitouch touch panel with 1280x800 resolution, the Kramer KT-10 is an Android-based touch panel that can be tabletop or wall-mounted, and is VESA mount compliant. It supports Power over Ethernet (PoE) for single cable, reliable Ethernet connectivity, providing both power and communication, and comes with an additional power supply and WiFi® options. The KT-10 is ideal for any 24/7 commercial AV or control application, and has a user-friendly, fully customizable graphical user interface configured by Kramer software.

Display Characteristics — 10" capacitive IPS (In–Plane Switching) touch panel with 1280x800 resolution and 16:10 aspect ratio — RGB pixels, backlit display with 5 multi–touch points
Power over Ethernet Option — Allows easier touch panel installation with single Ethernet cable for powering and communication.
Mounting — Mounts on a wall, table, lectern, or any flat surface. Multiple mounting options included, with VESA–compliant mounting holes, for full mounting options support.
Portable Panel — Flexibly portable with its Wi–Fi connectivity and powering options, its allows for non–stop reliable operation, even during installation and support occasions.
Fully Customizable Kramer Control UI Panel — Software–configured graphical icons and user interface control elements.
Panel Function Keys — Volume, up/down and exit function keys for user quick–access and simple interface.
High Processing & Memory Performance — Allows for quick application upgrade and operation, accelerated graphical storage and presentation performance.
Built–in Bluetooth Wireless & USB Ports — For optional UI operation peripheral accessories connectivity.
Full HD Video & Audio Media Player — Smooth media play of multiple video and audio formats.
Aesthetic Design — For any environment and room application.
Main Applications:

  • Control user interface in meeting and conference rooms, boardrooms, and auditoriums
  • Room scheduling presentation

Kramer KT-10 Includes:

  • KT-10 unit
  • Power supply unit
  • Tabletop mount unit
  • Wall mount bracket
  • Panel–mount bracket
  • installation screws
  • Quick start guide

Kramer KT-10 Features:

  • Quad–core and graphical processors
  • Android OS
  • Video and Audio media files play
  • 2M front camera
  • Audio microphone, 2 speakers and headphone port
  • 1 USB and 1 Micro USB 2.0 ports
  • Bluetooth 4.0
  • 5 function keys
  • On–wall and tabletop mounting included options

Kramer KT-10 Specifications:

  • Ports:
    • (1) USB 2.0 host type A
    • (1) micro USB 2.0
    • (3) add–on USB 2.0 module slots (for future use)
    • (2) control I/O ports (for future use)
    • (1) LAN on an RJ–45 connector
    • (1) headphone port on a 3.5mm mini jack
    • (1) 12 VDC input connector
  • Speakers: 2x 1.5W
  • Microphone: 1 omni–directional, — 40 ±3dB sensitivity
  • CPU Performance: Quad Core, 1.6GHz, GPU, 2GB RAM, 8GB Flash
  • OS Software: Android 4.4.4 KitKat
  • External Memory Option: SD card (SDHC class 10 compatible) slot (with cover)
  • Multi-Touch: 5 points
  • Display: 1280x 80
  • Video Format: MKV, TS, FLV, AVI, VOB, MPG, DAT, ASF, RM, MOV, 3GP, MP4, and WMV
  • Audio Format: MP2, WMA, WAV, AAC, OGG, and ASF
  • Image Format: JPG, BMP, and GIF
  • Ethernet Port: 10/100Mbps POE LAN, LED (green: Link ON and Idle, flashing green: link ON with activity, light off: link OFF)
  • Wireless Communication:
    • Wi–Fi IEEE802.11b/g/n
    • Bluetooth BT4.0
  • POE Standards:
    • Wi–Fi IEEE802.3af
    • Wi–Fi IEEE802.3at
  • Camera: Front:2M pixels
  • Clock Battery: Lithium–ion non–chargeable coin battery (for RTC)
  • Controls: Control buttons: volume (+/–) key, up/down key, exit button, power switch (ON/OFF) and LED (green: ON, red: SW boot–up, light off: OFF)
  • Power Consumption: 12V, 2A 12V/2.0A AC/DC adapter, 1.4A
  • Operating Temperature: 32° to 104°F (0° to +40°C)
  • Storage Temperature: 14° to 131°F (–10° to +55°C)
  • Humidity: 10% to 90%, RHL non–condensing
  • Case Design: Black body and cover
  • Certifications: CE, FCC, ROHS
  • Mounting Options: Panel–back 4 VESA–compatible screw holes
  • Product Dimensions (WxDxH): 9.93" x 9.45" x 7.00" (25.21 x 24.00 x 17.78cm)
  • Product Weight: 1.4 lbs (0.6 kg) approx
  • Shipping Dimensions (WxDxH): 15.51" x 3.58" x 11.69" (39.40 x 9.10 x 29.70cm)
  • Shipping Weight: 3.0 lbs (1.4 kg) approx
  • Software: Kramer K–Touch Version 3.2.1
  • Firmware: KT–10 Firmware Version 1.1 - Beta
