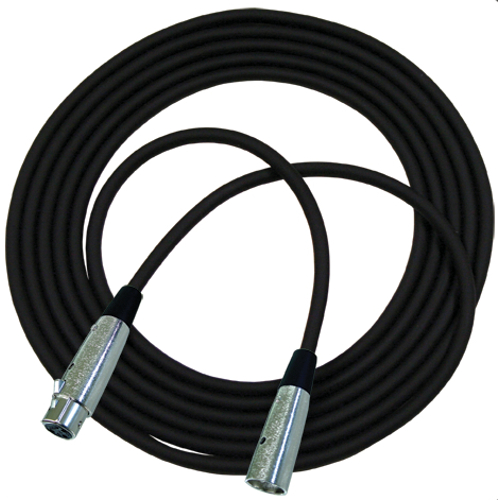

RapcoHorizon Music M7-25
25 ft Studio Series Microphone Cable with REAN XLR Connectors

OUR PART #:  RM7-25

RapcoHorizon's M7 microphone cable features RHC REAN nickel XLR connectors and uses Belden 8412 wire with twin 20 gauge inner conductors and a braided shield...
Learn More
Our Price: $45.17
List Price: $103.54
You save 56%!
Write the first review.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

RapcoHorizon Music M7-25
Qty:
Usually ships in 7-14 business days.
Need it sooner? Call us!

Similar Products

RapcoHorizon's M7 microphone cable features RHC REAN nickel XLR connectors and uses Belden 8412 wire with twin 20 gauge inner conductors and a braided shield, making the cable well-suited for heavy duty use.

RapcoHorizon M7 Microphone Cable Features:

  • (2) 20 gauge center conductors
  • Utilizes a braided shield process for quiet operation yielding maximum flexibility
  • EDPM jacket material is very flexible yet durable with very low memory
  • Pure copper conductor and shield
  • Has a REAN nickel XLRF connector on one end, and a REAN nickel XLRM connector on the other
  • Individually tested for performance and quality

RapcoHorizon M7 Microphone Cable Specifications:

  • Cable: Belden 8412
  • Conductor Gauge: (2) 20 gauge
  • Shield: TC braid
  • Shield Coverage: 85%
  • Jacket: EPDM
  • O.D.: 0.262"
  • Capacitance: 30 pF/ft @ 1 kHz
  • Cond.-Shield Capacitance: 55 pF/ft @ 1 kHz
  • Characteristic Impedance: 52 Ohms Nominal
  • D.C. Resistance @ 20┬░C: 10.2 Ohms/1000 ft
