NEC E556 55" LED Commercial Display with ATSC tuner

OUR PART #: E556 MFR #: E556

Copied to clipboard

The NEC E556 is a direct-lit, 55" commercial-grade display that's great for corporate, education, plus other digital signage uses. ...Read more

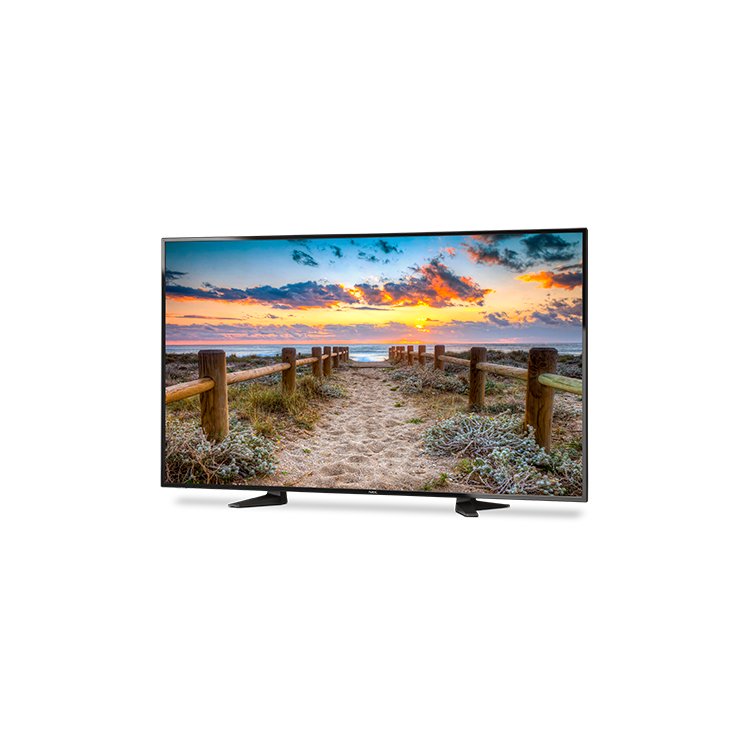

NEC E556 55" LED Commercial Display With ATSC Tuner Image 1
NEC E556 55" LED Commercial Display With ATSC Tuner Image 2
NEC E556 55" LED Commercial Display With ATSC Tuner Image 3
NEC E556 55" LED Commercial Display With ATSC Tuner Image 4
NEC E556 55" LED Commercial Display With ATSC Tuner
No longer available at Full Compass
We've left this page up for reference only.

Questions? Contact our
Sales and Service Pros for expert
advice and package pricing.

800-356-5844

Email customer service

Product Overview

The NEC E556 is a direct-lit, 55" commercial-grade display that's great for corporate, education, plus other digital signage uses. When comparing it to previous generation displays, it's LED backlighting delivers reduced power consumption, thinner depth, smaller bezel, along with lighter weight. Full HD resolution offers remarkable image quality for a range of content, and its integrated tuner and speakers enable high-definition broadcast operation. This display also includes a USB player where video, audio, or JPEG picture files can be loaded and played in sequence for signage functionality.

NEC E556 Includes:

  • E556 unit
  • Power cord
  • VGA cable (Mini 15-pin D-sub)
  • Wireless remote control
  • Batteries
  • CD-ROM (user manual)

NEC E556 Features:

  • Integrated multimedia USB player makes digital signage simple
  • LED backlighting technology reduces power consumption and allows for a slimmer cabinet depth
  • Thinner bezel improves display's aesthetics
  • 24-Hour On/Off timer maintains power schedules
  • Full HD Resolution allows for excellent image quality
  • Video signal wake-up function allows for plug and play functionality
  • Built-in NTSC/ATSC analog/digital tuner allows for high-definition broadcast capabilities
  • Built-in, low-profile 10W speakers enhance the experience with superior sound
  • Built-in NTSC/ATSC (8-VSP, Clear QAM) analog/digital tuner
  • Variable picture modes (Dynamic Standard/Energy Savings/Theater/Custom)
  • Advanced Video/Audio Settings
  • Sleep Timer
  • Built-In closed captioning
  • Parental Control (V-Chip Function)
  • Video Signal Wake-Up Function
  • USB Port

NEC E556 Specifications:

  • Display:
    • Panel Technology: S-IPS
    • Viewable Image Size: 55"
    • Native Resolution: 1920 x 1080
    • Pixel Pitch: 0.63mm
    • Backlight Type: LED Direct-lit
    • Brightness (typical): 350cd/m²
    • Contrast Ratio (typical): 1200:1
    • Viewing Angle: V: 176°/H: 176° (88U/88D/88L/88R) @ CR>10
    • Response Time (Gray to Gray): 9ms
    • Refresh Rate: 60Hz
    • Aspect Ratio: 16:9
    • Active Screen Area: 47.6" x 26.8" (1209.6 x 680.4mm)
    • Orientation: Landscape
    • Displayable Colors: More than 16.7 million
  • Synchronization Range:
    • Horizontal (Analog/Digital): 31-83 kHz
    • Vertical: 56-75 Hz
  • Input Signal:
    • Video: Analog RGB 0.7 Vp-p/75 Ohms
    • Sync:
    • Separate sync: TTL Level (Positive/Negative)
    • Composite sync: TTL Level (Positive/Negative)
    • Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)
  • Connectivity:
    • PC Signal Compatibility
    • Macintosh Compatibility
    • Input Terminals:
      • Digital: HDMI (3)
      • Analog: VGA 15-pin D-sub, Component, Composite (shared with Component)
      • Audio: HDMI Audio, Stereo Mini-Jack
      • External Control: RS-232C
    • Output Terminals:
      • Audio: SPDIF
    • Power Consumption (typical):
    • On: 111W
    • ECO Mode Standby:
  • Physical Specifications:
    • Bezel Width (Left/Right, Top/Bottom): 0.51"/0.51", 0.51"/0.58" (12.9mm/12.9mm, 12.9mm/14.7mm)
    • Dimensions (WxHxD):
      • Net (without stand): 48.8" x 28.0" x 3.1" (1239.2 x 711.6 x 79.2mm)
      • Shipping: 54.1" x 33.9" x 7.1" (1375 x 860 x 179mm)
    • Weight:
      • Net (without stand): 34.4 lbs (15.6 kg)
      • Shipping: 37.5 lbs (17.0 kg)
    • VESA Hole Configuration Specifications:
      • 4 x M6 x 15mm (400 x 200)
    • Environmental Conditions:
      • Operating Temperature: 32-104°F (0-40°C)
      • Operating Humidity: 10-80%
      • Operating Altitude: 6563ft (2000m)
      • Storage Temperature: 32-104°F (0-40°C)
      • Storage Humidity: 5-85%
      • Storage Altitude: 40,000ft (12,192m)
    • Limited Warranty (parts & labor, including backlight):
      • 3 years
    • Optional Accessories (all sold separately)
  • NEC:
    • Table-top stand accessory (ST-50E)
    • Wall Mount Kit (WMK-3257)
    • External OPS-DOCK

Note:

Tabletop stand shown in photos above is sold separately.
