NEC Visual Systems E506
50" LED Commercial Display with ATSC tuner

OUR PART #:  E506

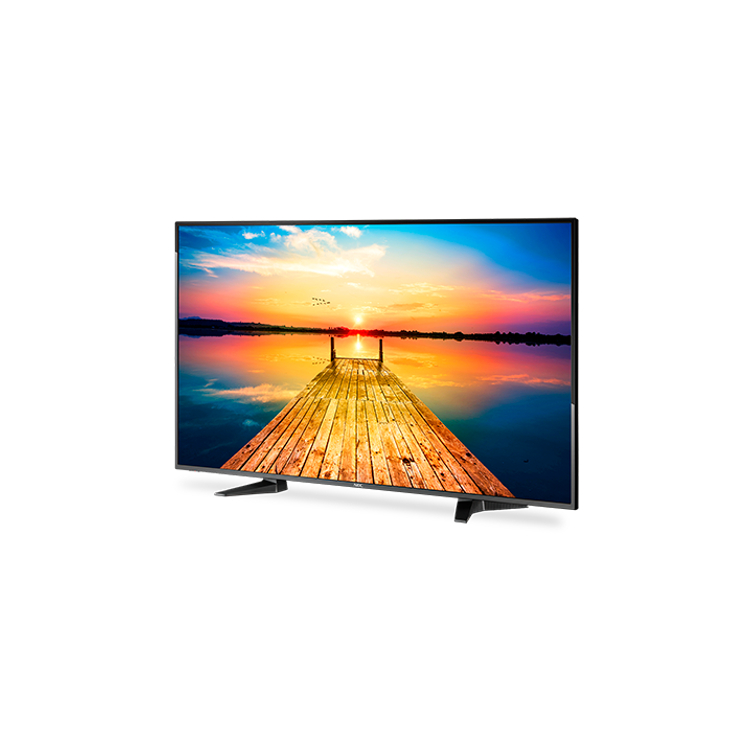

The NEC E506 is a direct-lit, 50" commercial-grade display that's ideal for education, corporate, as well as other digital signage purposes.
Learn More
Our Price: $839.00
List Price: $923.00
You save 9%!
Write the first review.
NEC Visual Systems E506
Usually ships in 7-14 business days.
Need it sooner? Call us!

Related Products

The NEC E506 is a direct-lit, 50" commercial-grade display that's ideal for education, corporate, as well as other digital signage purposes. When compared to previous generation displays, this one's LED backlighting allows for reduced power consumption, thinner depth, smaller bezel, and lighter weight. Full HD resolution delivers remarkable image quality for an array of content, plus its integrated tuner and speakers allow you to enjoy high-definition broadcast operation. This display also includes a USB player in which video, audio, or JPEG picture files can be loaded and played in sequence for signage functionality.

Note: Tabletop stand shown in photos above is sold separately

NEC E506 Includes:

  • E506 unit
  • Power cord
  • VGA cable (Mini 15-pin D-sub)
  • Wireless remote control
  • Batteries
  • CD-ROM (user manual)

NEC E506 Features:

  • Integrated multimedia USB player makes digital signage simple
  • LED backlighting technology reduces power consumption and allows for a slimmer cabinet depth
  • Thinner bezel improves display's aesthetics
  • 24-Hour On/Off timer maintains power schedules
  • Full HD Resolution allows for excellent image quality
  • Video signal wake-up function allows for plug and play fucntionality
  • Built-in NTSC/ATSC analog/digital tuner allows for high-definition broadcast capabilities
  • Built-in, low-profile 10W speakers enhance the experience with superior sound
  • Built-in NTSC/ATSC (8-VSP, Clear QAM) analog/digital tuner
  • Variable picture modes (Dynamic Standard/Energy Savings/Theater/Custom)
  • Advanced Video/Audio Settings
  • Sleep Timer
  • Built-In closed captioning
  • Parental Control (V-Chip Function)
  • Video Signal Wake-Up Function
  • USB Port

NEC E506 Specifications:

  • Display:
    • Panel Technology: VA
    • Viewable Image Size: 50"
    • Native Resolution: 1920 x 1080
    • Pixel Pitch: 0.57mm
    • Backlight Type: LED Direct-lit
    • Brightness (typical): 350cd/m²
    • Contrast Ratio (typical): 3000:1
    • Viewing Angle: V: 176°/H: 176° (88U/88D/88L/88R) @ CR>10
    • Response Time (Gray to Gray): 8ms
    • Refresh Rate: 60Hz
    • Aspect Ratio: 16:9
    • Active Screen Area: 43.1" x 24.3" (1095.8 x 616.4mm)
    • Orientation: Landscape
    • Displayable Colors: More than 16.7 million
  • Synchronization Range:
    • Horizontal (Analog/Digital):  31-83 kHz
    • Vertical: 56-75 Hz
  • Input Signal:
    • Video: Analog RGB 0.7 Vp-p/75 Ohms
    • Sync:
      • Separate sync: TTL Level (Positive/Negative)
      • Composite sync: TTL Level (Positive/Negative)
      • Composite sync on green: (0.3Vp-p negative 0.7Vp-p positive)
  • Connectivity:
    • PC Signal Compatibility
    • Macintosh Compatibility
    • Input Terminals:
      • Digital: HDMI (3)
      • Analog: VGA 15-pin D-sub, Component, Composite (shared with Component)
      • Audio: HDMI Audio, Stereo Mini-Jack
      • External Control: RS-232C
    • Output Terminals:
      • Audio: SPDIF
  • Power Consumption (typical):
    • On: 109W
    • ECO Mode Standby: <0.5W
  • Physical Specifications:
    • Bezel Width (Left/Right, Top/Bottom): 0.47"/0.47", 0.47"/0.57" (11.9mm/11.9mm, 11.9mm/14.4mm)
    • Dimensions (WxHxD):
      • Net (without stand): 44.2" x 25.5" x 3.0" (1123.6 x 646.7 x 77mm)
      • Shipping: 47.2" x 28.9" x 5.2" (1200 x 734 x 133mm)
    • Weight:
      • Net (without stand): 28.4 lbs (12.9 kg)
      • Shipping: 37.5 lbs (17.0 kg)
  • VESA Hole Configuration Specifications:
    • 4 x M6 x 15mm (400 x 200)
  • Environmental Conditions:
    • Operating Temperature: 32-104°F (0-40°C)
    • Operating Humidity: 10-80%
    • Operating Altitude: 6562ft (2000m)
    • Storage Temperature: 32-104°F (0-40°C)
    • Storage Humidity: 5-85%
    • Storage Altitude: 40,000ft (12,192m)
  • Limited Warranty (parts & labor, including backlight):
    • 3 years
  • Optional Accessories (all sold separately):
    • NEC:
      • Table-top stand accessory (ST-50E)
      • Wall Mount Kit (WMK-3257)
      • External OPS-DOCK
