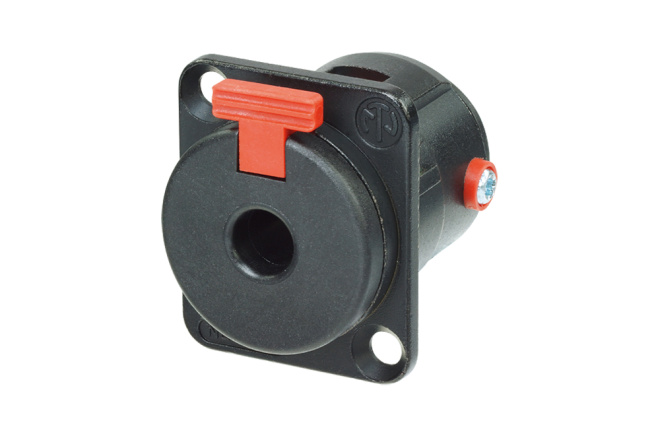

Neutrik NJ3FP6P-BAG
3-Pole Locking 1/4" Phone Jack with D-Size Shell, Black Plastic Housing

OUR PART #:  NJ3FP6P-BAG

Neutrik's NJ3FP6P-BAG is a 3-pole female panel mount phone jack that provides stable and secure connections where accidental disconnect or shock and vibration may occur.
Learn More
Our Price: $4.67
List Price: $5.42
Save up to 23% when you order by quantity!
  • Buy 25: $4.51 each.
  • Buy 50: $4.35 each.
  • Buy 100: $4.19 each.

We guarantee to match pricing on the products we sell for new, identical and immediately available products if you see them offered at a lower price. Please contact us if you find a lower price before purchasing.

Learn More

Low Price

Guaranteed

Neutrik NJ3FP6P-BAG
Qty:
Similar Products

Neutrik's NJ3FP6P-BAG is a 3-pole female panel mount phone jack that provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. The plug locks-in automatically when mating and unlocks only by pressing the red release tab.

Neutrik NJ3FP6P-BAG Features:

  • Securely locking chassis jack
  • Mates with all mono and stereo plugs specified acc. EIA RS-453 (A-gauge)
  • Selectable grounding options: standard isolated, to get a sleeve/panel connection red isolator on lateral screw must be removed
  • Dimensionally compatible with D Series (31 x 26 mm)
  • Solder terminals

Neutrik NJ3FP6P-BAG Specifications:

  • Electrical Specifications:
    • Contact resistance: < 6 mOhms (initial)
    • Dielectric strength: 1 kVdc
    • Insulation resistance: = 1 GOhm @ 500 V dc
    • Rated current per contact: 10 A
  • Mechanical Specifications:
    • Insertion force: < 30 N
    • Withdrawal force: < 20 N
    • Lifetime: > 10000 mating cycles
    • Locking force: > 80 N
    • Wiresize: 1 mm²
    • Wiresize: 18 AWG
    • Wiring: Solder contacts
    • Locking device: Retention spring
    • Mounting direction: Front mounting
    • Chassis shape: D
  • Material Specifications:
    • Contact plating: 2 µm Ag
    • Contacts: Brass (CuZn37) (Ground)
    • Insert: Polyamide (PA 6.6 30 % GR)
    • Shell: Polyamide (PA 6.6 30 % GR)
    • Shell plating: Black plastic
    • Strain relief: Polyacetal (POM)
  • Environmental Specifications:
    • Standard compliance: EIA RS 453, IEC 60603-11
    • Solderability: Complies with IEC 68-2-20
    • Temperature range: -25 °C to +70 °C
